ROTEX 600 XTPRO: Service & Maintenance Manual - rev. 1.1
Page 3.1
3. PRINCIPLES OF OPERATION
3.1. BLOCK DIAGRAM

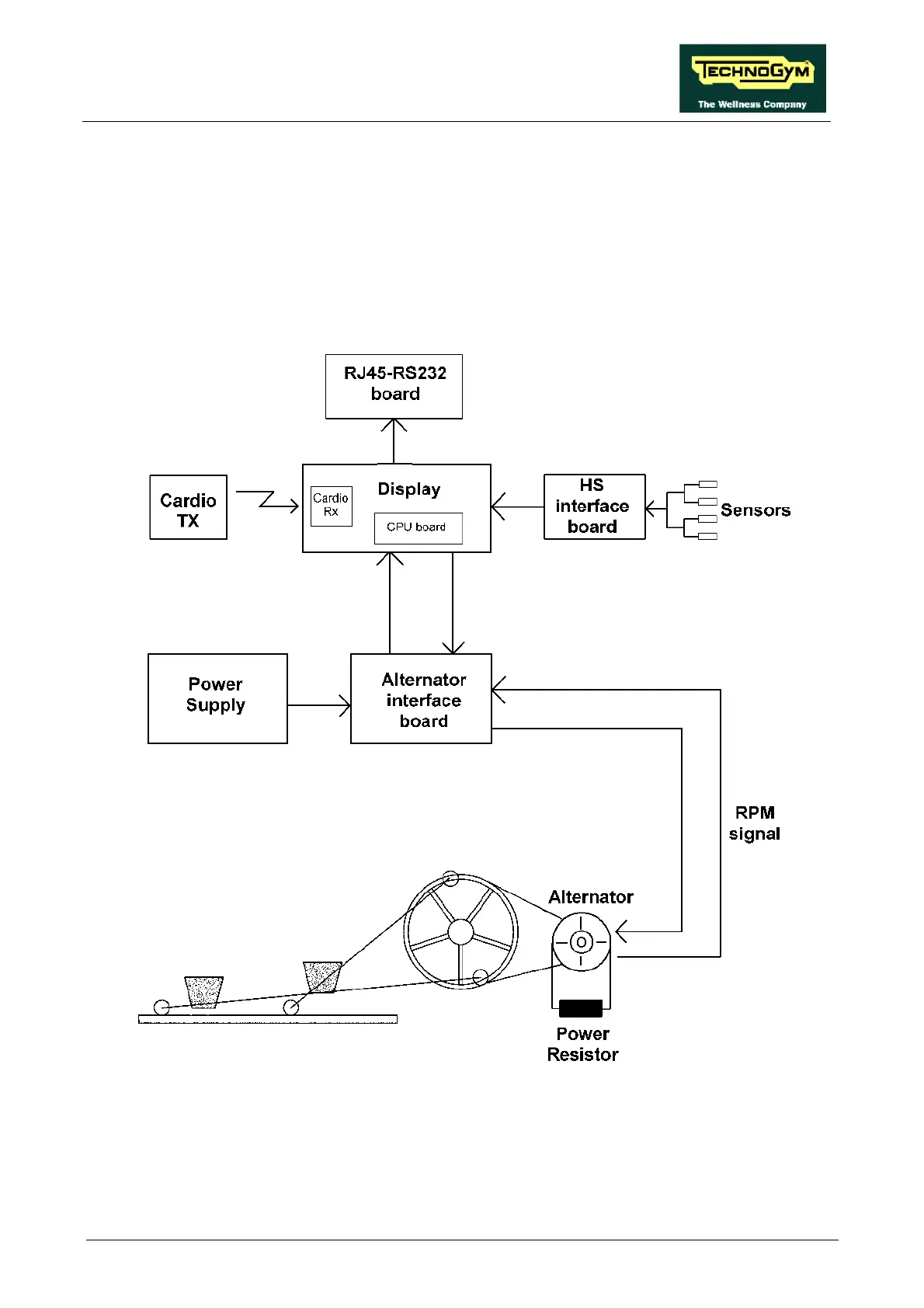

The block diagram of the machine is shown in the figure below:
3.1.1. DISPLAY
It consists of various components that will be individually described below:
