7.21. DISASSEMBLING THE ALTERNATOR BRUSHES

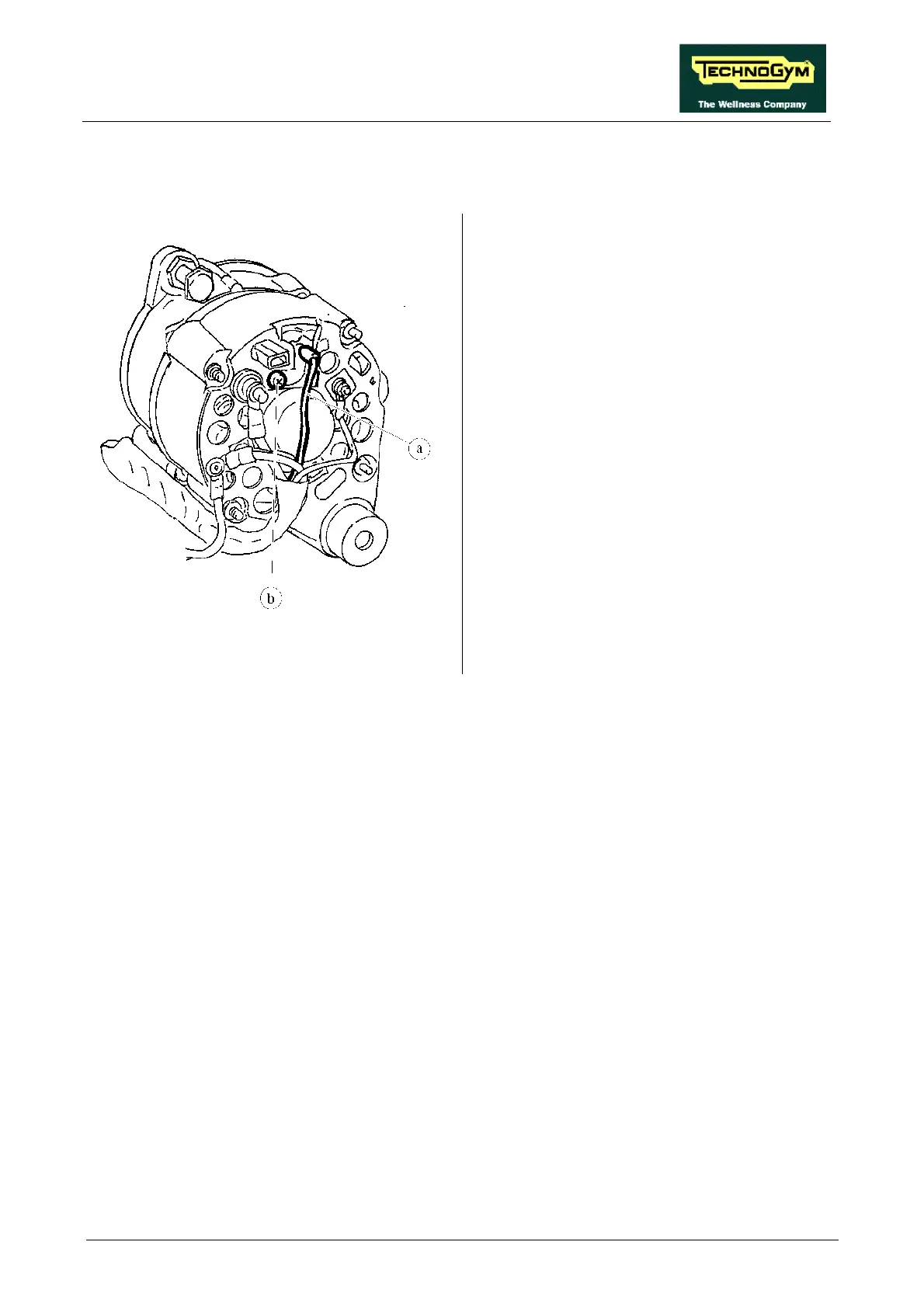

Figure 7.21-1
Carry out the procedure described in paragraph
7.7. “Disassembling the frame guards”.
1. Disassemble the alternator cable a.
2. Unscrew the BRUSH group clamping screw
b using a large Phillips screwdriver.
3. Remove the BRUSHES.
To reassemble the BRUSHES, carry out the
above steps in reverse order.
