7.18. DISASSEMBLING THE PEDAL WHEEL TRACK

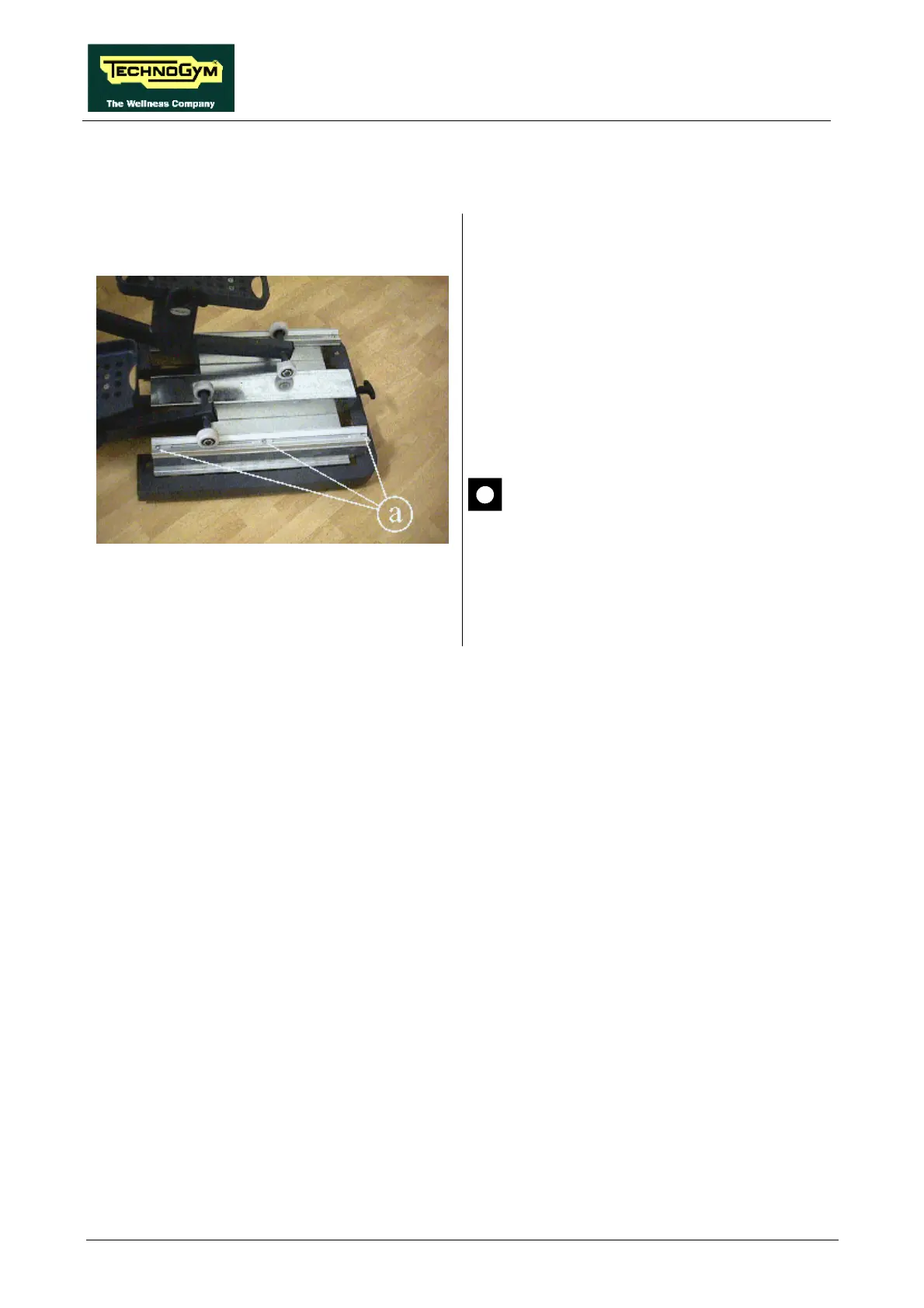

Figure 7.18-1
Carry out the procedure described in paragraph
7.15. “Disassembling the rear cover”.
On each side:
1. Unscrew the 3 screws a fixing the PEDAL
WHEEL TRACK to the frame using a 5-mm
hex wrench.
2. Raise the pedal upward.
3. Remove the PEDAL WHEEL TRACK.
When removing the PEDAL WHEEL
TRACK, be careful not to knock it
against the pedals.
To reassemble the PEDAL WHEEL TRACK,
carry out the above steps in reverse order.
