ROTEX 600 XTPRO: Service & Maintenance Manual - rev. 1.1
Page 7.8
7.7. DISASSEMBLING THE FRAME GUARDS

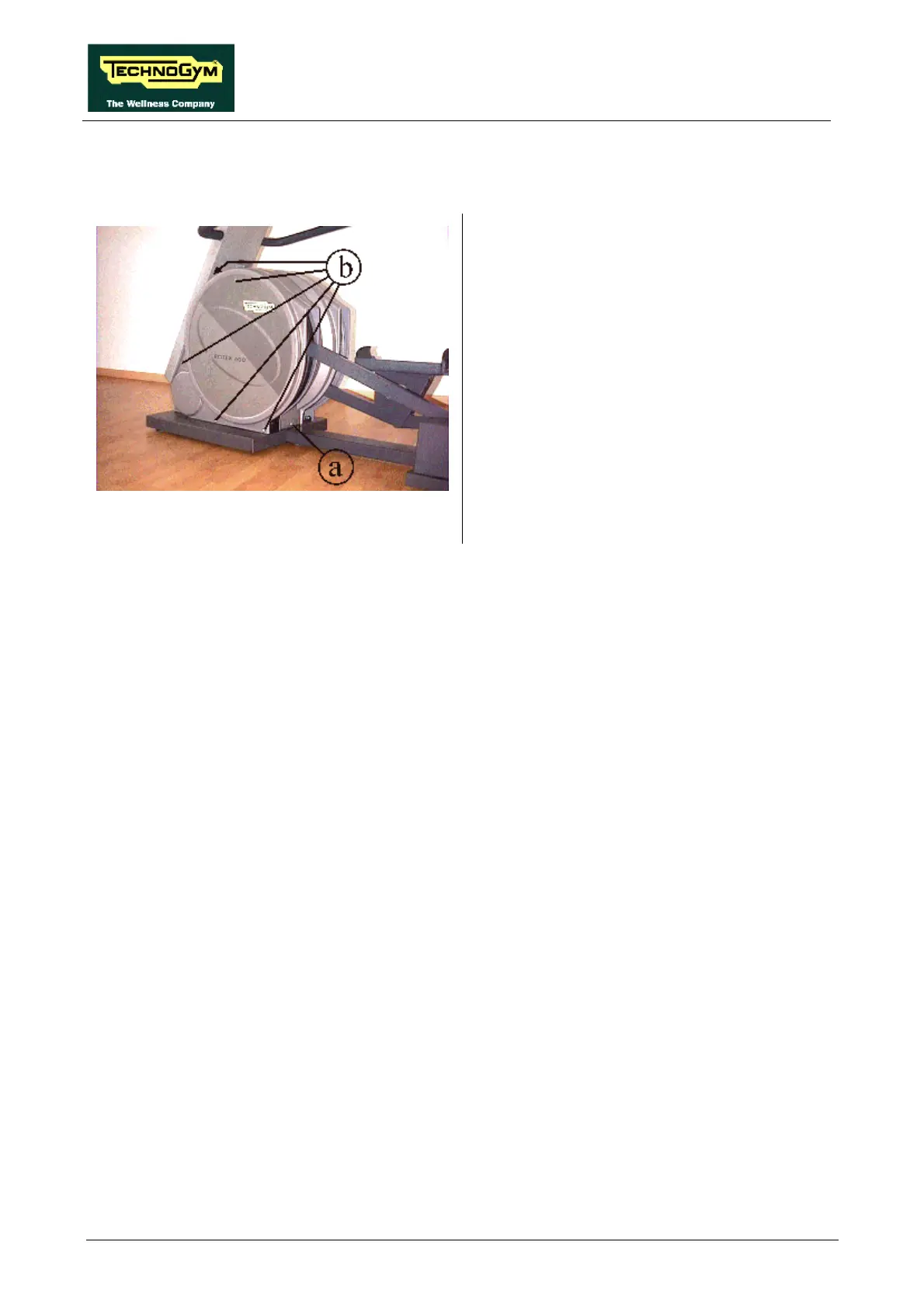

Figure 7.7-1
1. Turn off the machine and unplug the mains
lead from the wall output
2. Back off the screw a using a large Phillips
screwdriver.
3. On each side, back off the 5 screws b using a
large Phillips screwdriver.
4. Open out the sides of the FRAME GUARD
and remove it by pulling upward.
To reassemble the FRAME GUARD, carry out
the above steps in reverse order.
