ROTEX 600 XTPRO: Service & Maintenance Manual - rev. 1.1
Page 7.17
7.16. DISASSEMBLING THE PEDAL LEVER GROUP
Version A: TNS - locked pedals.

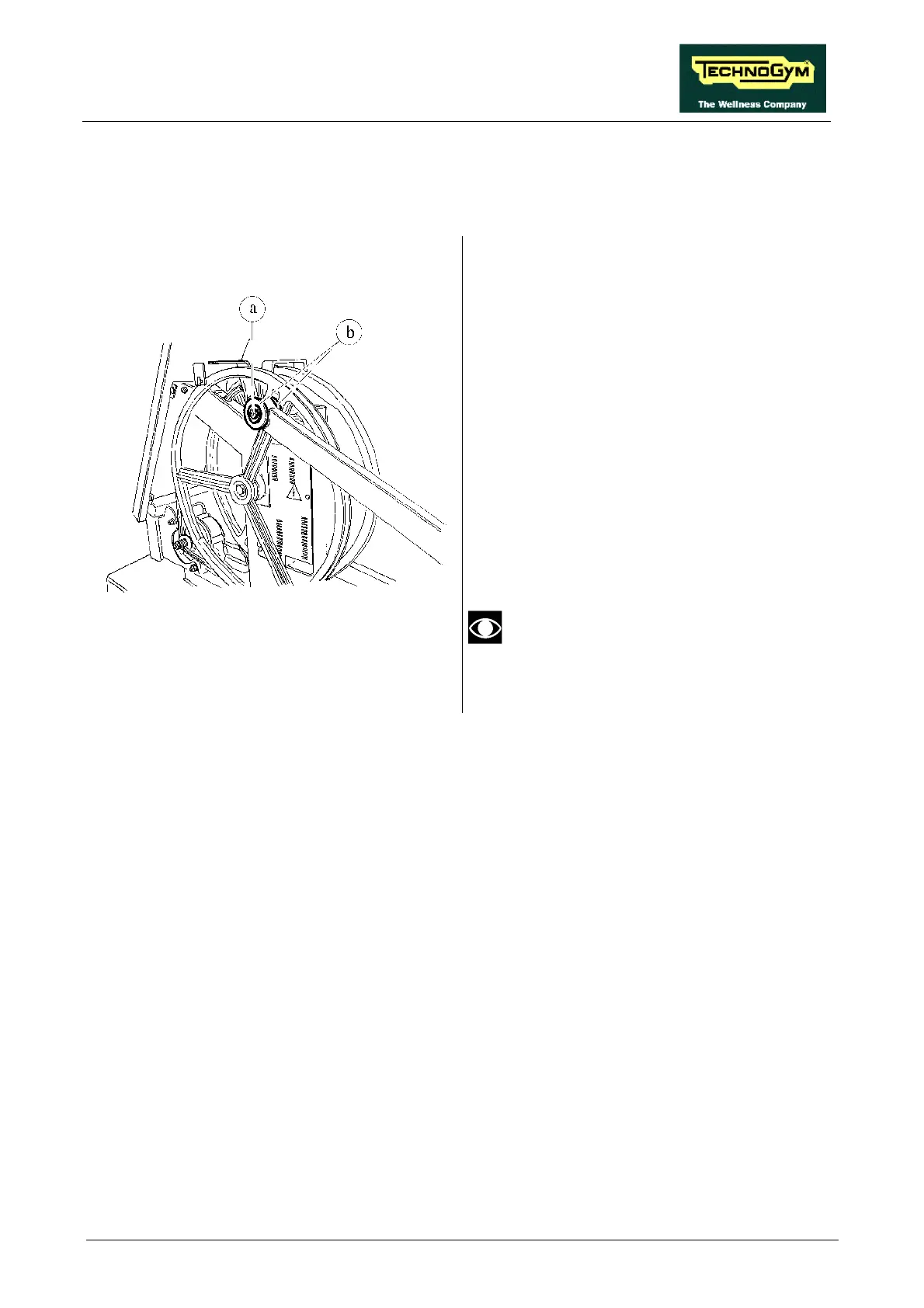

Figure 7.16-1
Carry out the procedures described in paragraphs
7.7. “Disassembling the frame guards” and 7.15.
“Disassembling the rear cover”.
On each side:
1. Unscrew the screw a fixing the PEDAL
LEVER GROUP to the flywheel, using a 6-
mm T wrench.
2. Remove the plastic spacers b and the
washers.
3. Remove the PEDAL LEVER GROUP.
To reassemble the PEDAL LEVER GROUP,
carry out the above steps in reverse order.
Before reassembling the PEDAL
LEVER GROUP, lubricate the plastic
spacers with a thin layer of chain grease.
