ROTEX 600 XTPRO: Service & Maintenance Manual - rev. 1.1
Page 7.14
7.13. DISASSEMBLING THE ALTERNATOR

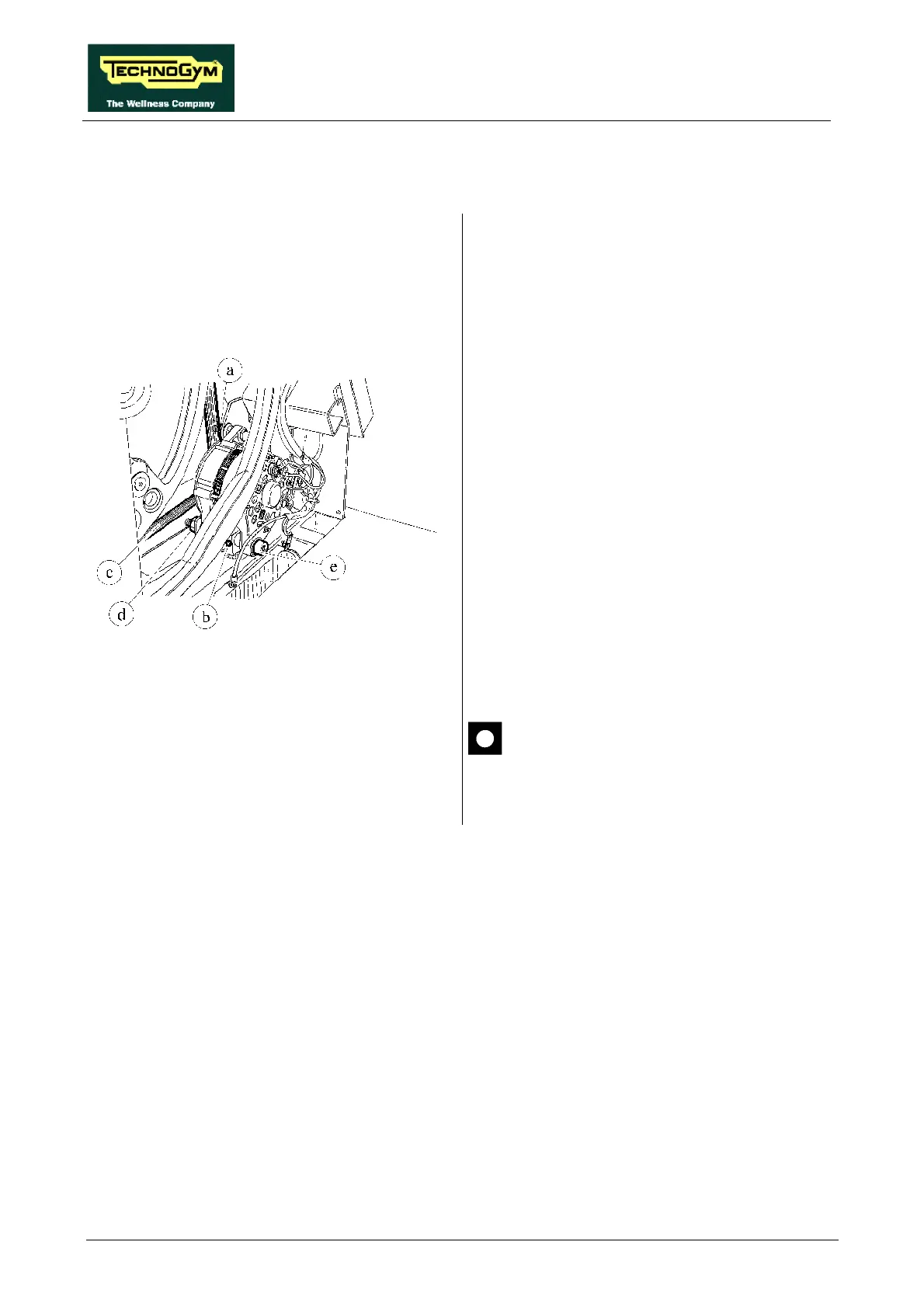

Figure 7.13-1
Carry out the procedure described in paragraph
7.7. “Disassembling the frame guards”.
1. Disconnect the ALTERNATOR cables.
2. Unscrew the nut a using a 17-mm wrench.
3. Back off dowel b using a 4-mm hex T
wrench.
4. Move the ALTERNATOR so as to pull out
belt c.
5. Back off the lock nut d of the alternator pivot
e using a 19-mm wrench.
6. Unscrew the alternator pivot e using an 8-
mm hex wrench, while at the same time
backing off the lock nut d to the point of
disassembly.
7. Remove the ALTERNATOR.
To reassemble the ALTERNATOR, carry out the
above steps in reverse order.
After completing the operation, adjust
the alignment and tension of the belt as
described in paragraphs 8.1. and 8.2. .
