ROTEX 600 XTPRO: Service & Maintenance Manual - rev. 1.1
Page 7.22
7.20. DISASSEMBLING THE FLYWHEELS

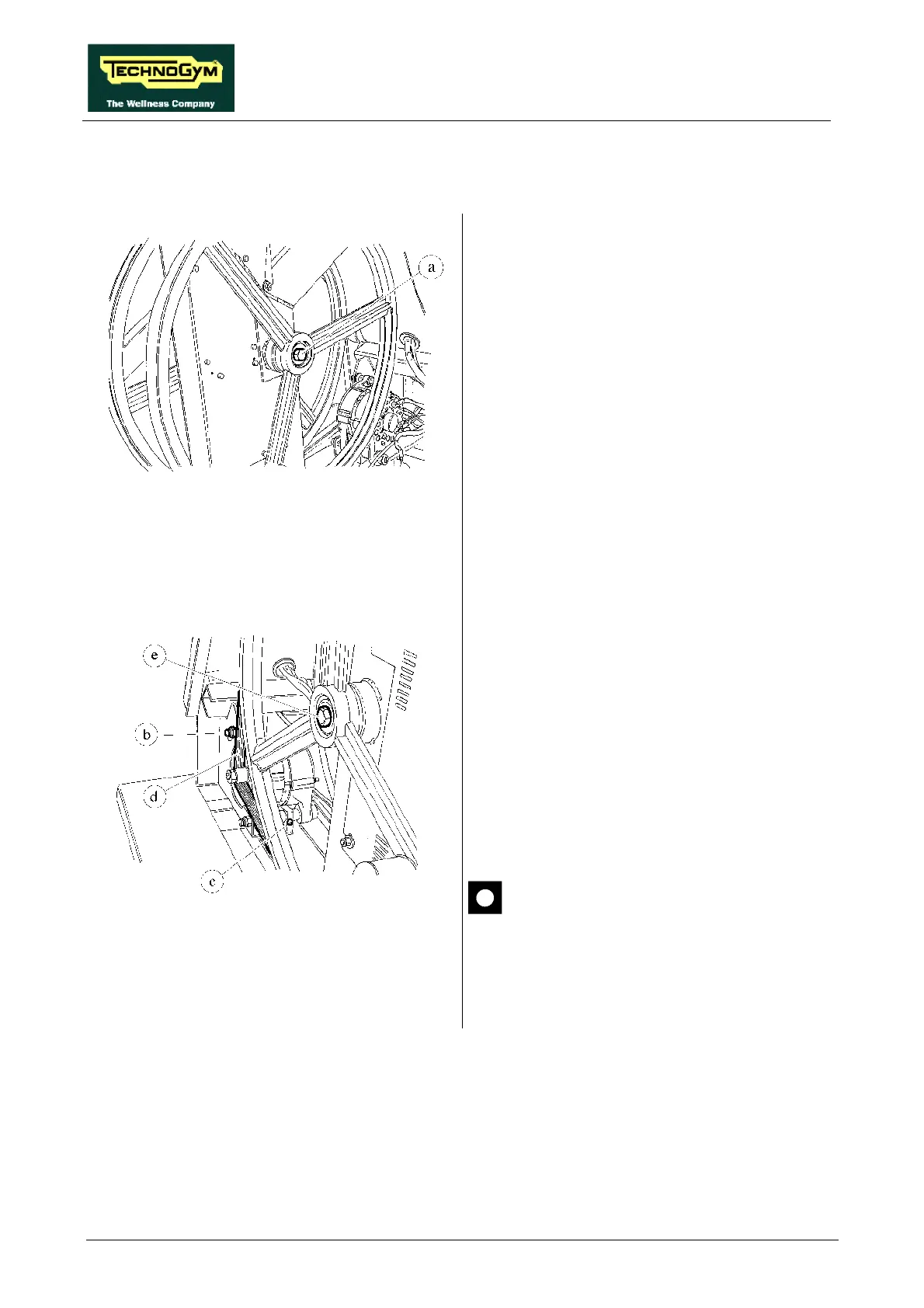

Figure 7.20-1
Carry out the procedures described in paragraphs
7.7. “Disassembling the frame guards” and 7.16.
“Disassembling the pedal lever group”.
To disassemble the RIGHT FLYWHEEL:
1. Unscrew the fixing screw a of the RIGHT
FLYWHEEL using a 17-mm wrench.
2. Remove the RIGHT FLYWHEEL.
Figure 7.20-2
To disassemble the LEFT FLYWHEEL:
3. Back off the nut b using a 17-mm wrench.
4. Back off dowel c using a 4-mm hex T
wrench.
5. Move the alternator toward the pulley to
remove the belt d from the LEFT
FLYWHEEL.
6. Unscrew the screw e fixing the LEFT
FLYWHEEL using a 17-mm wrench.
7. Remove the LEFT FLYWHEEL.
To reassemble the FLYWHEELS, carry out the
above steps in reverse order.
After completing the disassembly
procedure for the LEFT FLYWHEEL,
adjust the alignment and tension of the
belt as described in paragraphs 8.1. and
8.2. .
