ROTEX 600 XTPRO: Service & Maintenance Manual - rev. 1.1
Page 7.12
7.11. DISASSEMBLING THE HS INTERFACE BOARD

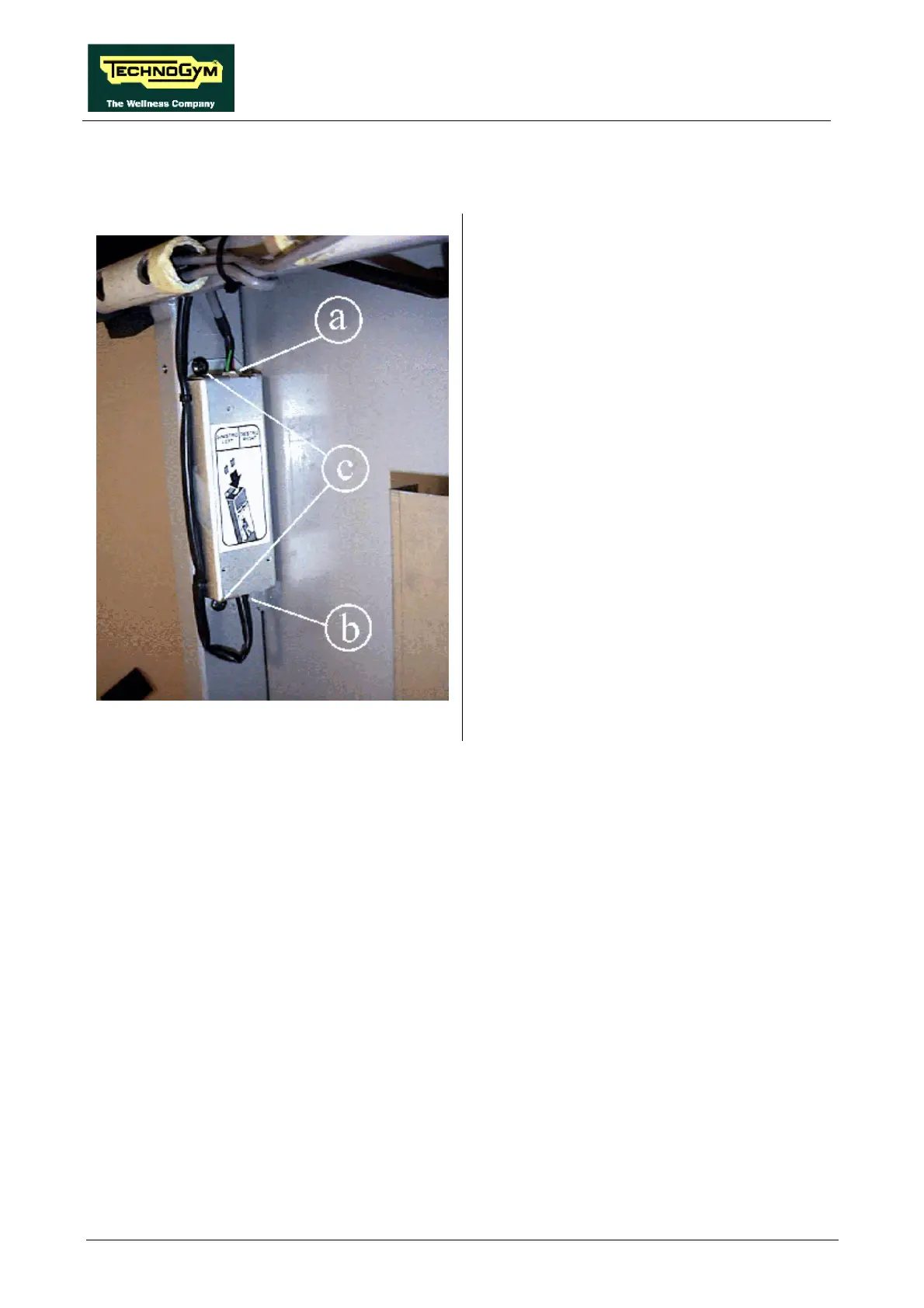

Figure 7.11-1
Carry out the procedure described in paragraph
7.6. “Disassembling the upright guard”.
1. Disconnect connectors a and b.
2. Back off the 2 screws c using a medium
Phillips screwdriver.
3. Remove the HS INTERFACE BOARD and
its support.
4. To separate the circuit board from its
support, open the 4 fixing clips.
To reassemble the HS INTERFACE BOARD,
carry out the above steps in reverse order.
