7.9. DISASSEMBLING THE SIDE HANDLEBARS

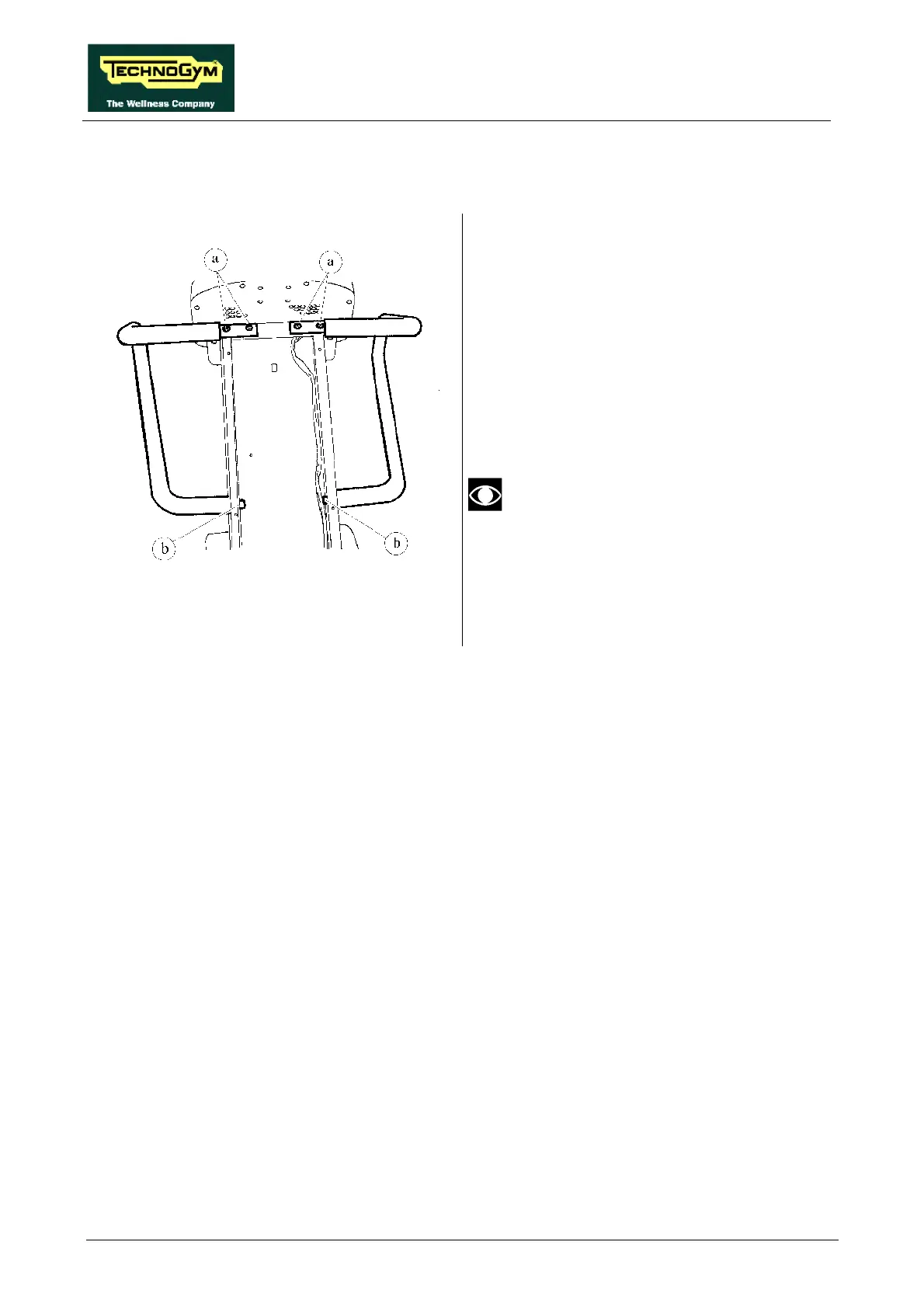

Figure 7.9-1
Carry out the procedure described in paragraphs
7.6. “Disassembling the upright guard” and 7.8.
“Disassembling the center handlebar”.
1. Unscrew the 2 screws a using a 6-mm hex T
wrench.
2. Unscrew the screw b using a 6-mm hex T
wrench.
3. Remove the SIDE HANDLEBAR.
WARNING: when carrying out these
operations, be careful not to damage the
hand sensor cables.
To reassemble the SIDE HANDLEBAR, carry
out the above steps in reverse order.
