Techroutes WG3100 Series User Manual

WG3100-Series GSM VoIP Gateway User Manual
_______________________________________________________________________________
Techroutes Network Pvt. Ltd.
17

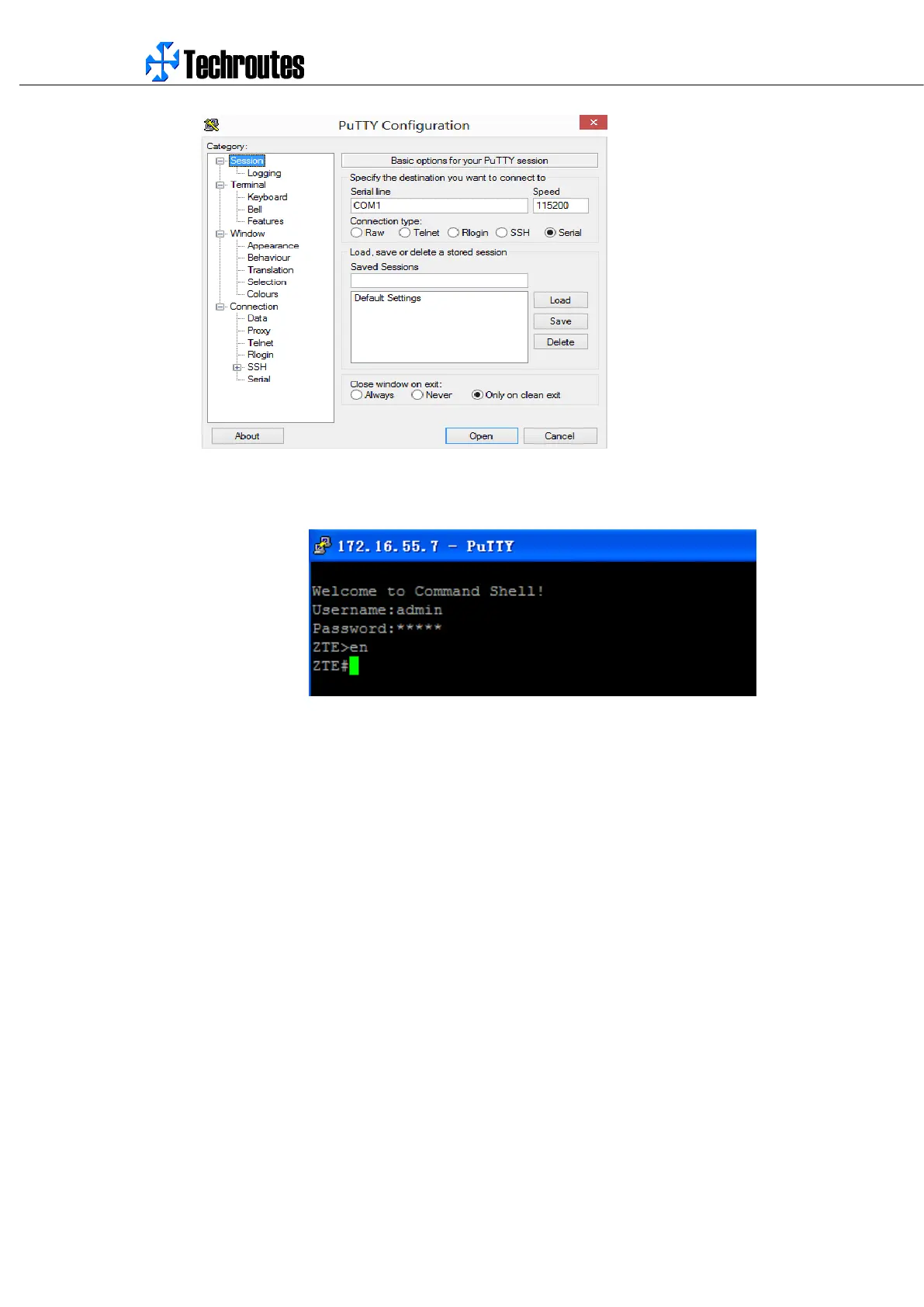

After finishing the above configurations, click the Open button to enter the maintenance interface of the console port. The
username and password are the same with those of the web interface of device.
Commands for configuring the IP address of the device :
(In the following example, IP address of device needs to be configured as 172.30.66.100, and netmask is 255.255.0.0)
> enable
enable# configure
config# interface ethernet
config-if-br-lan# ip address 172.30.66.100 255.255.0.0
config-if-br-lan# exit
config# ip default-gateway 172.30.0.1
Commands for inquiring the IP address of the device
> enable
enable#show interface

Techroutes WG3100 Series Specifications

General

Brand	Techroutes
Model	WG3100 Series
Category	Gateway
Language	English
