Techroutes WG3100 Series - Product Appearance of WG3100-VF

WG3100-Series GSM VoIP Gateway User Manual
_______________________________________________________________________________
Techroutes Network Pvt. Ltd.
8

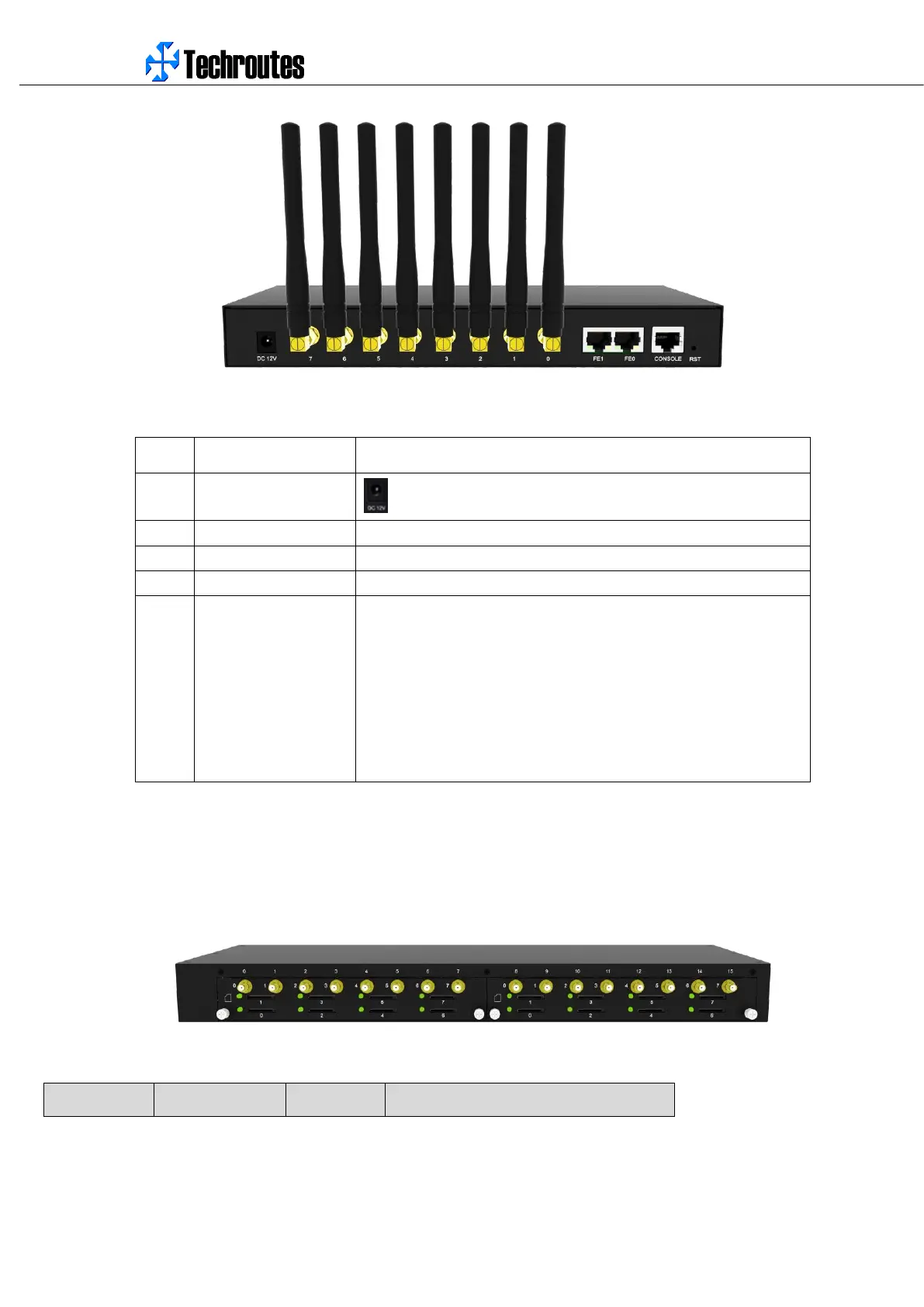

Table 1-3-2 Description of Rear view
Index
Interface
Description
1
Power Connector
Power connector of DC power. Input: DC12V
2
Antenna Connector
Mark as digits 0 to 7
3
Network
FE0 and FE1, its default IP address 192.168.11.1
4
Console
RS232 standard, band rate 115200bps
5
RST
Reset button to restore default IP and password or restore
factory setting.
 Restore IP and Password: hold RST button 3~5 seconds,
RUN LED being ON during this time
 Restore factory setting: Hold RST button 7 seconds,
RUN LED being blink
1.3.2 Product Appearance of WG3100-VF
Front View
Indicators and connectors
Indicators
Name
Status
Description
