1.3 PRODUCT APPEARANCE
1.3.1 Product Appearance of WG3100-VE
The appearance of WG3100-VE shows as follow

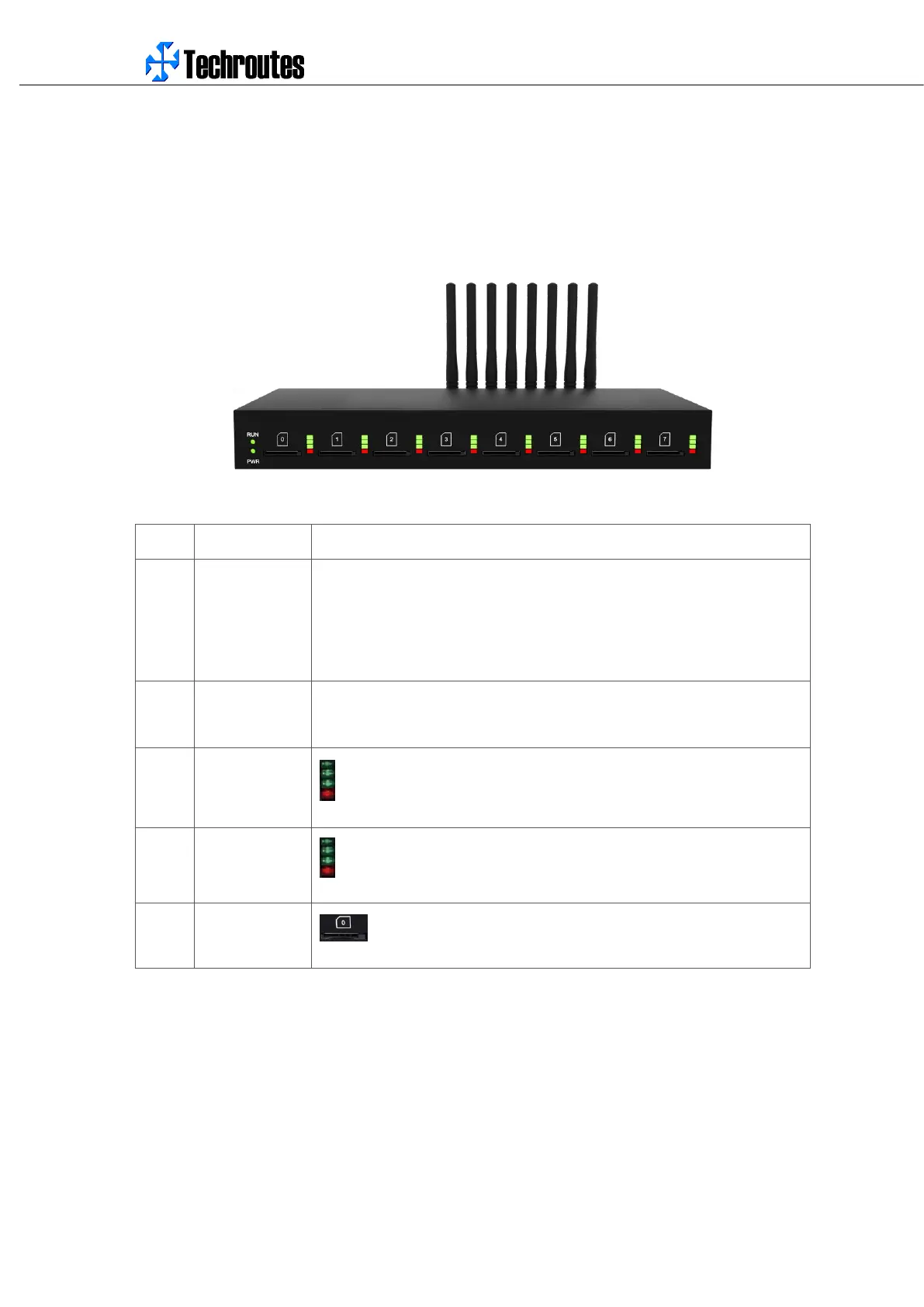

Figure 1-3-1 Front view of WG3100-VE-8G/8C
Table 1-3-1 Description of Front view
Index
Indicators
Description
1
RUN
On: Starting
Off: Abnormal
Blinking every 0.5s: Normal status
2
PWR
On: Power on
Off: Power off
3
Signal
Signal strength indicators with green color
4
Channel
Use/Unuse indicator with Red color, ON is used, Off is unused
5
SIM Slots
SIM card slot
Figure 1-3-2 Rear view of WG3100-VE-8G/8C
