4.11 DIAGNOSTIC

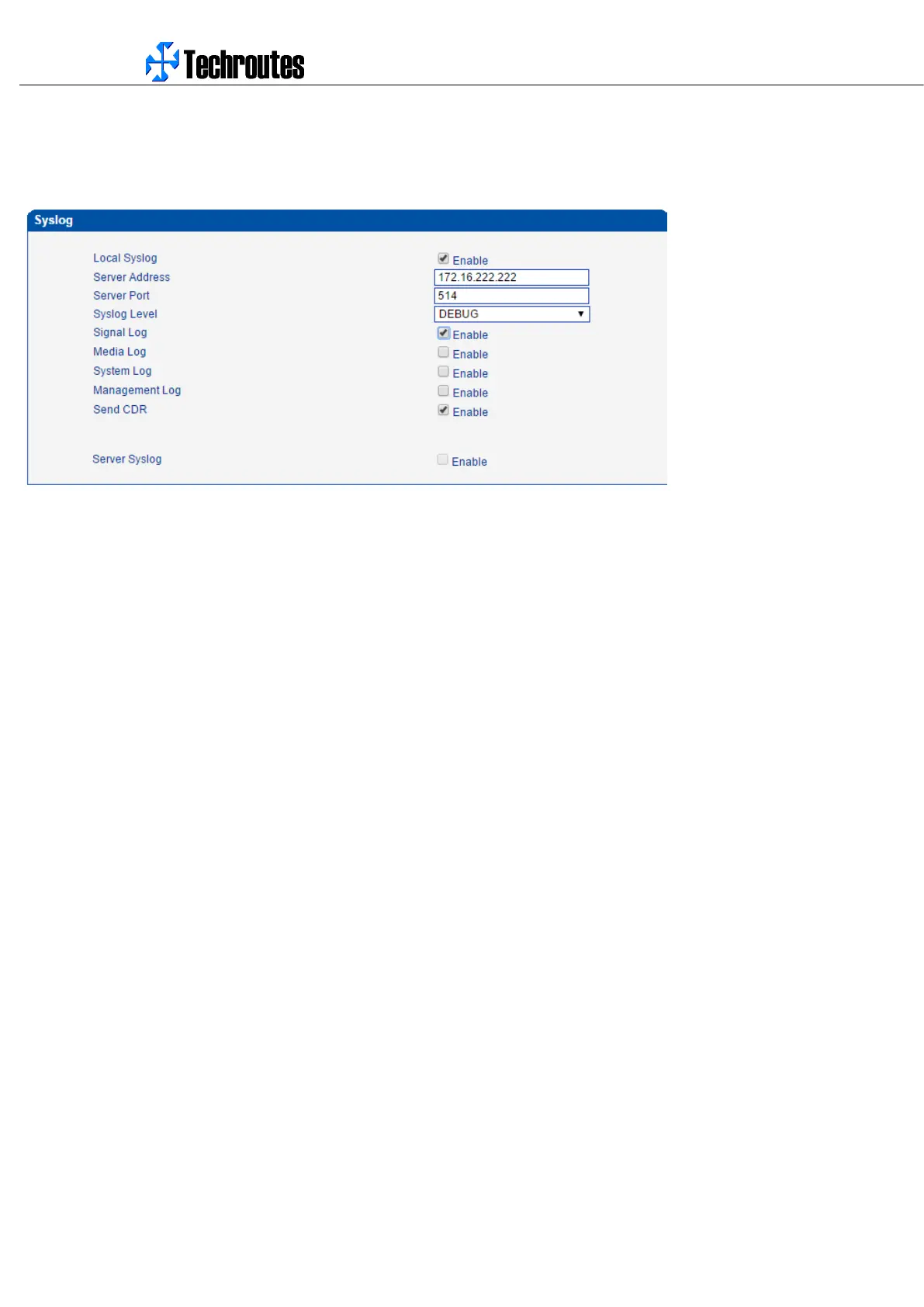

4.11.1 Syslog
Syslog is a standard for network device data logging. It allows separation of the software that generates messages from the system
that stores them and the software that reports and analyzes them. It also provides devices which would otherwise be unable to
communicate a means to notify administrators of problems or performance. There are 5 levels of syslog, Including NONE, DEBUG,
NOTICE, WARNING and ERROR.
The Signal Log is include following traces which defined in system by default
- SD, hardware debug
- SIP, SIP signaling trace
- STUN, STUN logs
- ECC, detail information of call control modular
- RE, the common communication modular for SCP and SIM
- SCP, the communication protocol between gateway and cloud server
The media log is include following traces which defined in system by default
- RTP, RTP stream info collection
- SIM, to output traces between gateway and remote SIM cards
The System Log is include following traces which mainly used by developer
- SYS, system log
- TIMER, system process
