WG3100-Series GSM VoIP Gateway User Manual
_______________________________________________________________________________
Techroutes Network Pvt. Ltd.
34
There are two modes for the AMR codec in the device:
AMR_FR: the AMR codec in a full rate channel (FR)
AMR_HR: the AMR codec in a half rate channel (HR).
FR and EFR: GSM Audio Coding supports both FR and EFR, but FR is prior to EFR.
EFR and FR: GSM Audio Coding supports both EFR and FR, but EFR is prior to FR.
Example:

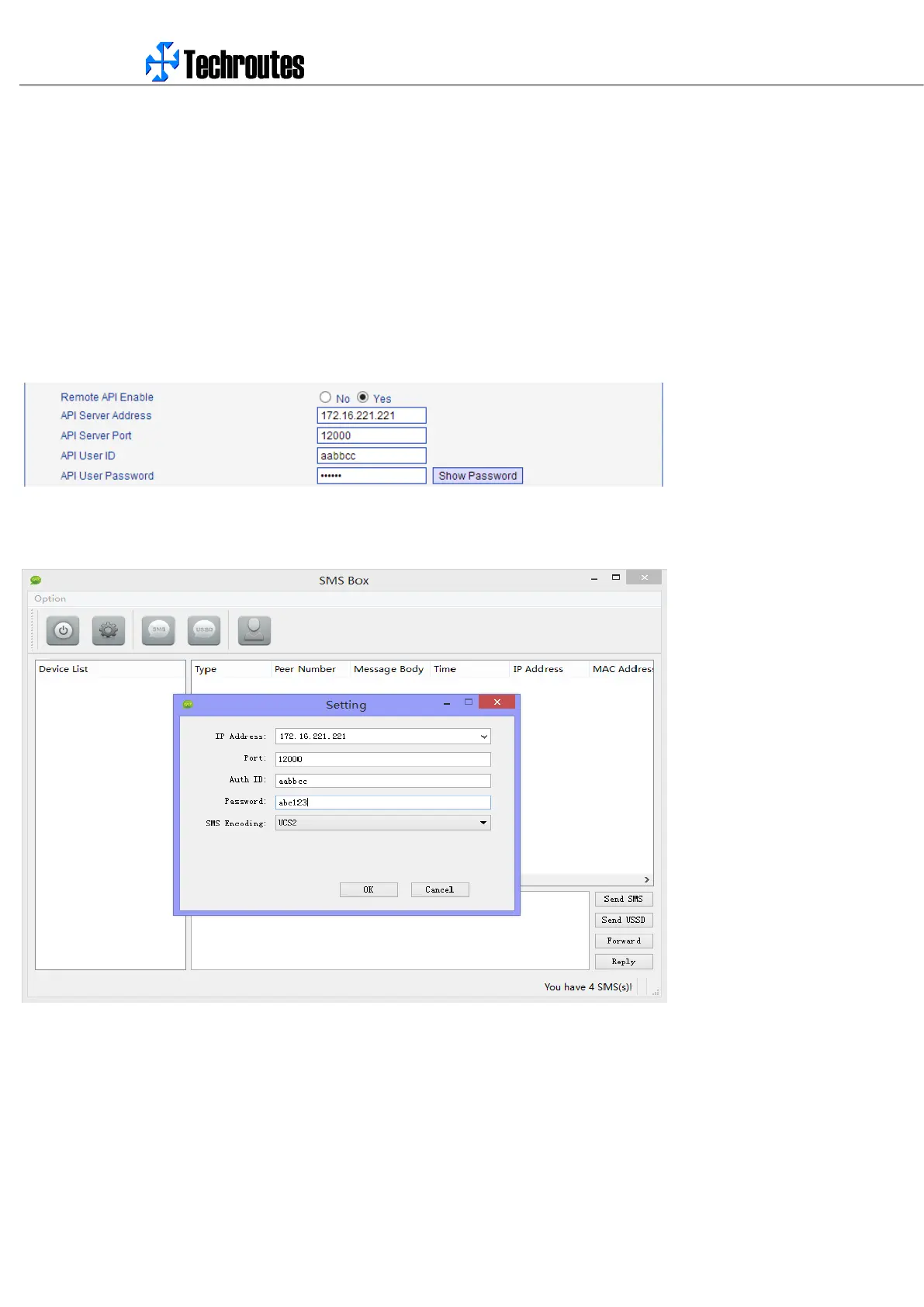

Configuration between SMS box and gateway
Configure API parameters on gateway
The IP server which installed SMS box software is 172.16.221.221, pre-set Port 12000, User ID aabbcc and password abc123 as
example.
Configure SMS box
Then click OK and start service, the gateway IP will be presented in device list of SMS box
