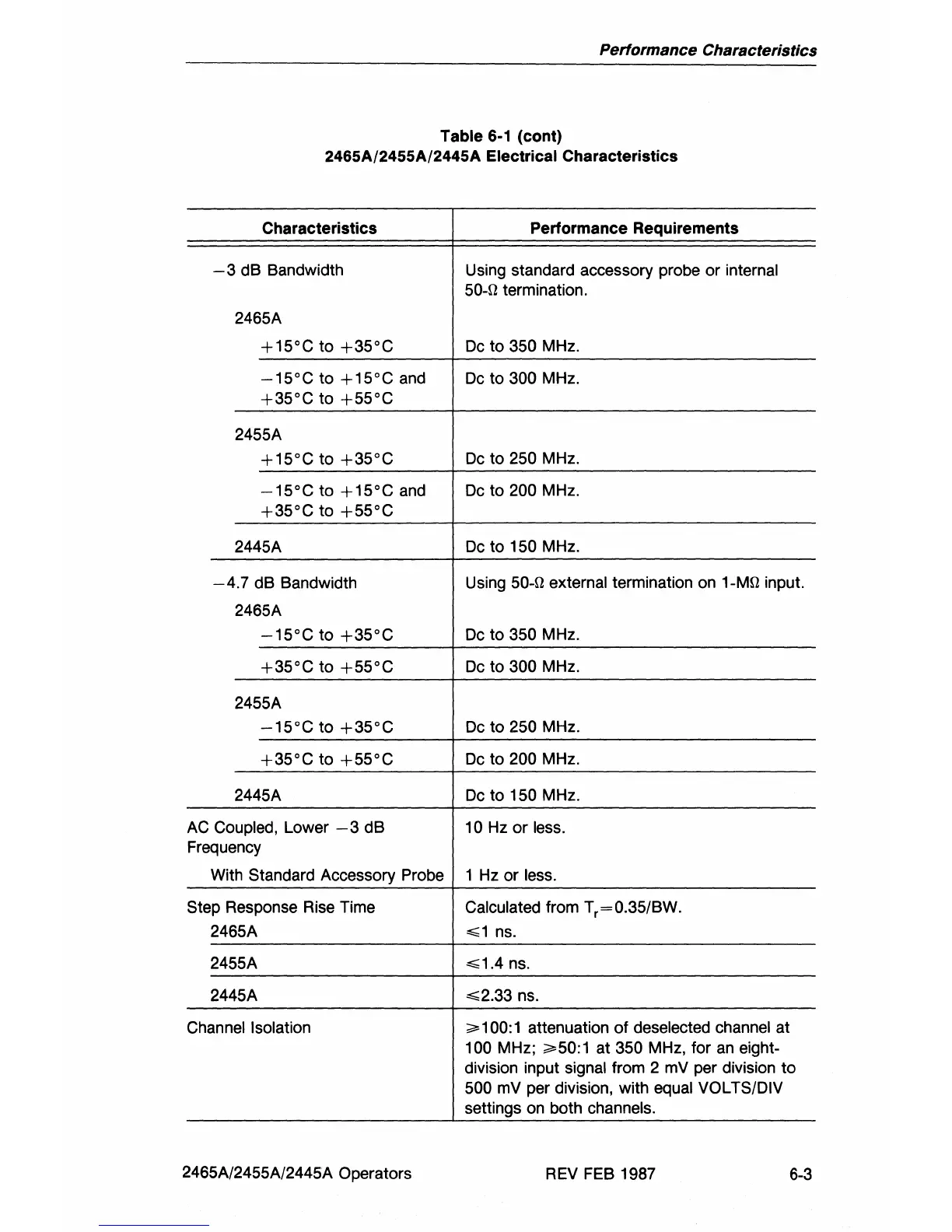

Performance Characteristics
Table
6-1
(cont)
2465A/2455A/2445A Electrical Characteristics
Characteristics Performance Requirements
-3
dB Bandwidth Using standard accessory probe or internal
50-f! termination.
2465A
+15°C
to
+35°C
Dc
to 350 MHz.
-15°C
to
+15°C
and
Dc
to 300 MHz.
+35°C
to
+55°C
2455A
+15°C
to
+35°C
Dc
to
250
MHz.
-15°C
to
+15°C
and
Dc
to
200
MHz.
+35°C
to
+55°C
2445A
Dc
to 150 MHz.
-4.7
dB Bandwidth Using 50-f! external termination
on
1-Mf! input.
2465A
-15°C
to
+35°C
Dc
to 350 MHz.
+35°C
to
+55°C
Dc
to 300 MHz.
2455A
-15°C
to
+35°C
Dc
to
250
MHz.
+35°C
to
+55°C
Dc
to
200
MHz.
2445A
Dc
to 150 MHz.
AC
Coupled, Lower
-3
dB
10Hz
or
less.
Frequency
With Standard Accessory Probe 1
Hz
or
less.
Step Response
Rise
Time Calculated from T,=0.35/BW.
2465A
,,;;;1
ns.
2455A
,,;;;1.4
ns.
2445A
";;;2.33
ns.
Channel Isolation
~100:1
attenuation of deselected channel at
100 MHz;
~50:1
at 350 MHz, for
an
eight-
division input signal from 2
mV
per division to
500
mV
per division, with equal VOL TS/DIV
settings
on
both channels.
2465A/2455A/2445A Operators
REV
FEB
1987
6-3
To Next Page
