Performance Characteristics

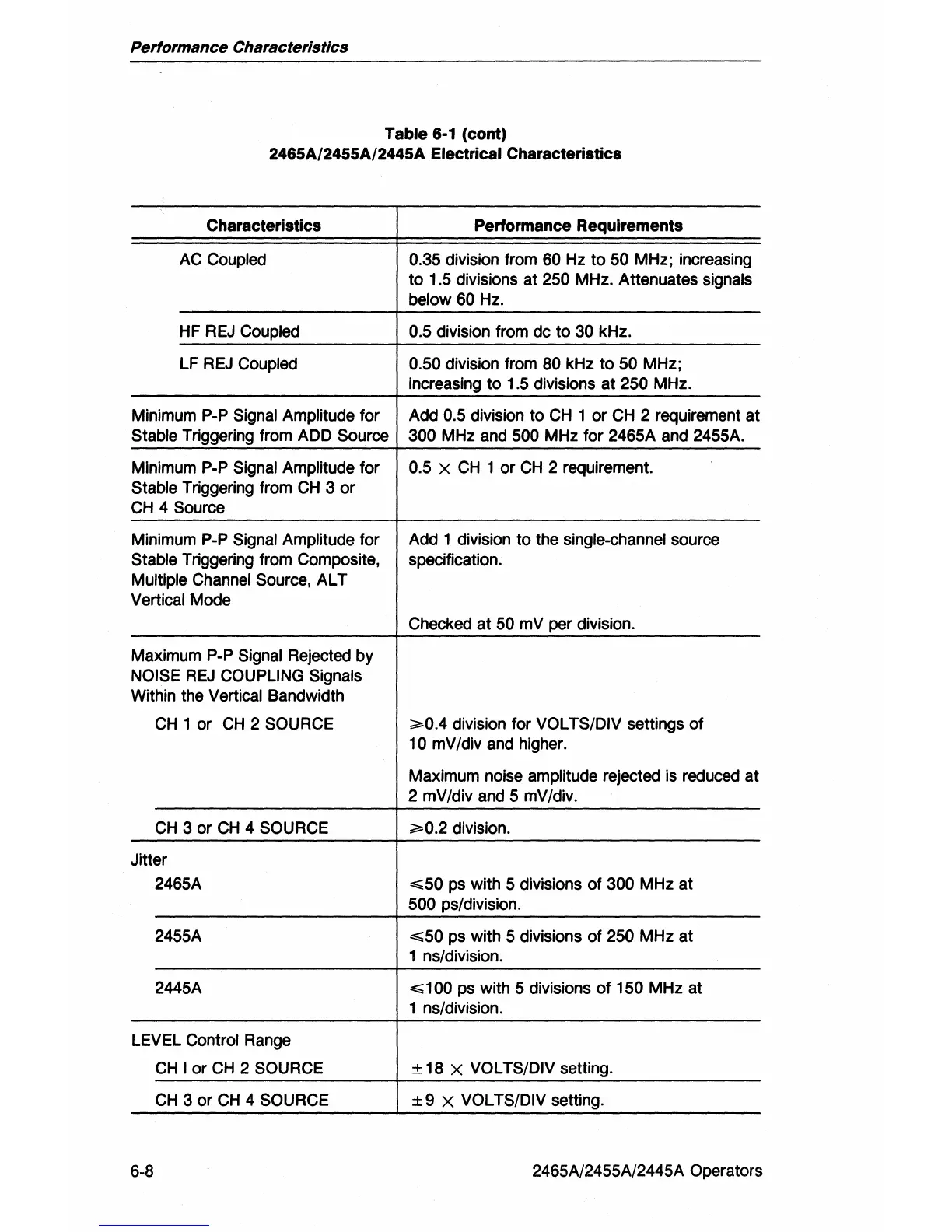

Table 6-1 (cont)
2465A/2455A/2445A
Electrical Characteristics
Characteristics Performance Requirements
AC Coupled 0.35 division from 60 Hz to 50 MHz; increasing
to 1.5 divisions at 250 MHz. Attenuates signals
below
60 Hz.
HF
REJ Coupled 0.5 division from dc to 30 kHz.
LF
REJ Coupled 0.50 division from 80 kHz to 50 MHz;
increasing to 1.5 divisions
at 250 MHz.
Minimum
poP Signal Amplitude for Add 0.5 division to CH 1 or CH 2 requirement at
Stable Triggering from ADD Source 300 MHz and 500 MHz for 2465A and 2455A.
Minimum
poP Signal Amplitude for
0.5 X CH 1 or CH 2 requirement.
Stable Triggering from
CH 3 or
CH 4 Source
Minimum
poP Signal Amplitude for Add 1 division to the single-channel source
Stable Triggering from Composite, specification.
Multiple Channel Source,
AL T
Vertical Mode
Checked
at 50 mV per division.
Maximum
poP Signal Rejected by
NOISE REJ COUPLING Signals
Within the Vertical Bandwidth
CH 1 or CH 2 SOURCE ~0.4 division for VOL TS/DIV settings of
10 mV/div and higher.
Maximum noise amplitude rejected
is reduced at
2 mV/div and 5 mV/div.
CH 3 or CH 4 SOURCE ~0.2 division.
Jitter
2465A
...;;50 ps with 5 divisions of 300 MHz at
500 ps/division .
2455A
...;;50 ps with 5 divisions of 250 MHz at
1 ns/division .
2445A
...;;100 ps with 5 divisions of 150 MHz at
1 ns/division.
LEVEL Control Range
CH I or CH 2 SOURCE ± 18 X VOL TS/DIV setting.
CH 3 or CH 4 SOURCE ± 9 X VOL TS/DIV setting.
6-8
2465A/2455A/2445A Operators
