Instrument Options—455/A2/B2
Ckt No
C707
C708
C709
FL701
Fig. &
Index
No.
-l
-2
-3
-4
-5

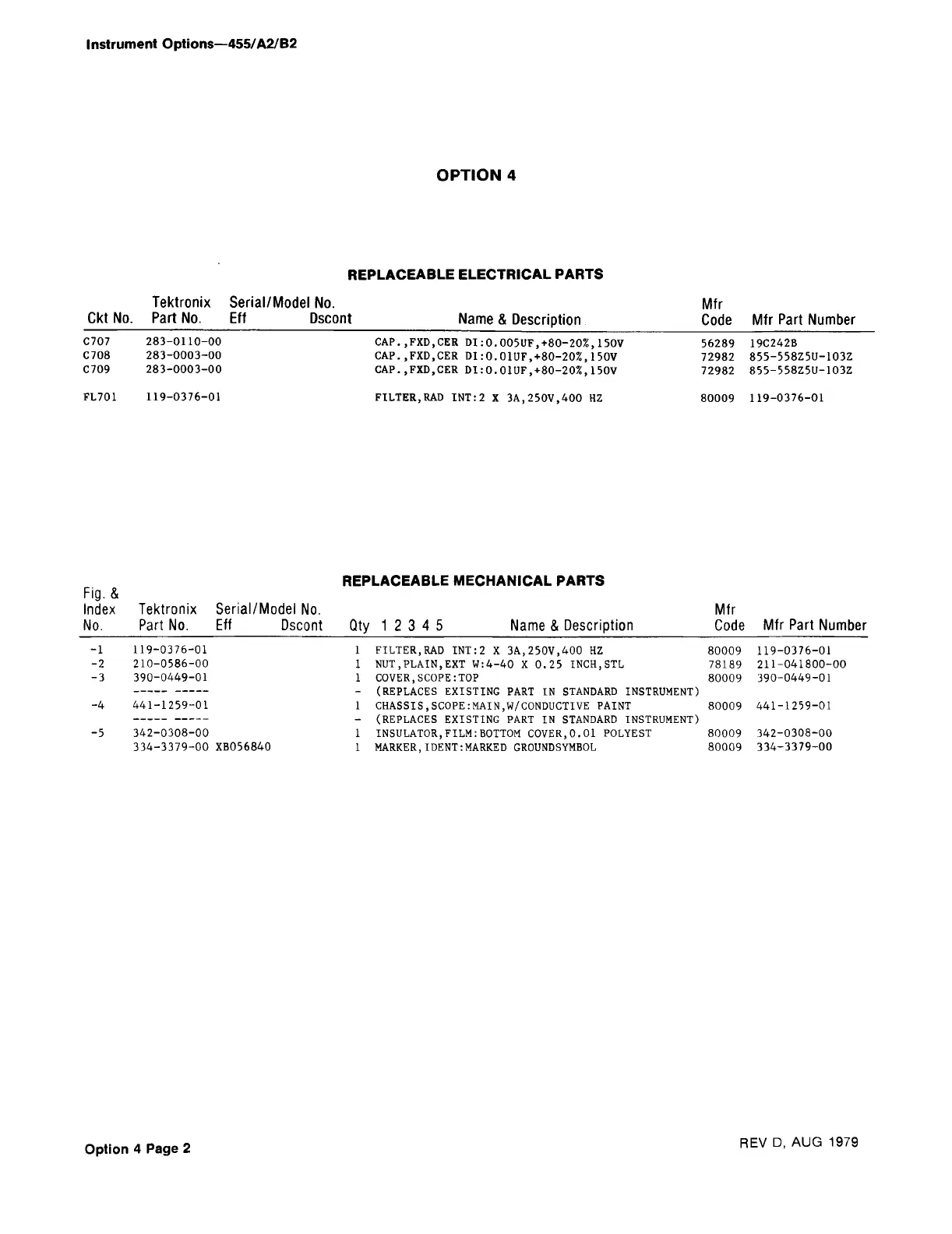

OPTION 4
REPLACEABLE ELECTRICAL PARTS
Tektronix
Part No.
Serial/Model No.
Eff Dscont
Name & Description
Mfr
Code Mfr Part Number
283-0110-00 CAP.
,FXD.CER DI: 0.005UF,+80-20%,150V
56289
19C242B
283-0003-00 CAP.
,FXD,CER DI:0.01UF,+80-20%,150V
72982
855-558Z5U-103Z
283-0003-00 CAP.
,FXD.CER DI:0.01UF,+80-20%,150V
72982
855-558Z5U-103Z
119-0376-01
FILTER,RAD INT:2 X 3A,250V,400 HZ
80009
119-0376-01
REPLACEABLE MECHANICAL PARTS
Tektronix
Part No.
Serial/Model No.
Eff Dscont
Qty 1 2 3 4 5 Name & Description
Mfr
Code
Mfr Part Number
119-0376-01 1
FILTER,RAD INT:2 X 3A,250V,400 HZ
80009
119-0376-01
210-0586-00
1 NUT,PLAIN,EXT W:4-40 X 0.25 INCH,STL
78189
211-041800-00
390-0449-01
1 COVER,SCOPE:TOP
(REPLACES EXISTING PART IN STANDARD INSTRUMENT)
80009
390-0449-01
441-1259-01
1 CHASSIS,SCOPE:MAIN.W/CONDUCTIVE PAINT
(REPLACES EXISTING PART IN STANDARD INSTRUMENT)
80009
441-1259-01
342-0308-00
1
INSULATOR,FILM:BOTTOM COVER,0.01 POLYEST
80009
342-0308-00
334-3379-00 XB056840
1 MARKER,IDENT:MARKED GROUNDSYMBOL 80009
334-3379-00
Option 4 Page 2
REV D, AUG 1979
