Maintenance—455/A2/B2
( a ) COLORS IDENTIFY SIGNIFICANT DIGITS IN TEKTRONIX
' ' PART NUMBER (E.G. BROWN, GRAY, GREEN STRIPES
INDICATE PART NUMBER 152-0185-00)
O © and © 1ST, 2ND, AND 3RD SIGNIFICANT FIGS.
MULTIPLIER © TOLERANCE;
j m TEMPERATURE COEFFICIENT.
©
©
©
TOLERANCE; F=±1%, J=5%, K=10%, M=20%
AND/OR (TCJ COLOR CODE MAY NOT
BE PRESENT ON SOME CAPACITORS;
POLARITY AND VOLTAGE RATING
COLOR
SIGNIFICANT
FIGURES
RESISTORS (ft)
CAPACITORS (pF)
DIPPED
TANTALUM
VOLTAGE
RATING
MULTIPLIER
TOLERANCE
MULTIPLIER
TOLERANCE
over 10 pF
under 10 pF
BLACK
0
1
___
1
±20%
±2 pF
4 VDC
BROWN
1
10
±1%
10
±1%
±0.1 pF
6 VDC
RED
2 102 or 100
+2%
102 or 100
±2%
—
10 VDC
ORANGE
3
103 or 1 K
±3%
103 or 1000 ±3%
—
15 VDC
YELLOW
4
104 or 10 K ±4%
104 or 10,000 +100% -9%
—
20 VDC
GREEN
5 10s or 100 K ±'A%
10s or 100,000
±5%
±0.5 pF
25 VDC
BLUE
6
106 or 1 M
106 or 1,000,000
—
—
35 VDC
VIOLET
7
—
±1/10%
—
—
—
50 VDC
GRAY
8
—
—
10"2 or 0.01
+80% -20%
+0.25 pF
—
WHITE
9
—
—
10 ‘ or 0.1
±10%
±1 pF
3 VDC
GOLD -
10’1 or 0.1
±5%
—
—
—
—
SILVER
-
10-2 or 0.01
±10%
—
—
—
—
NONE
-
—
±20%
—
±10%
±1 pF
—

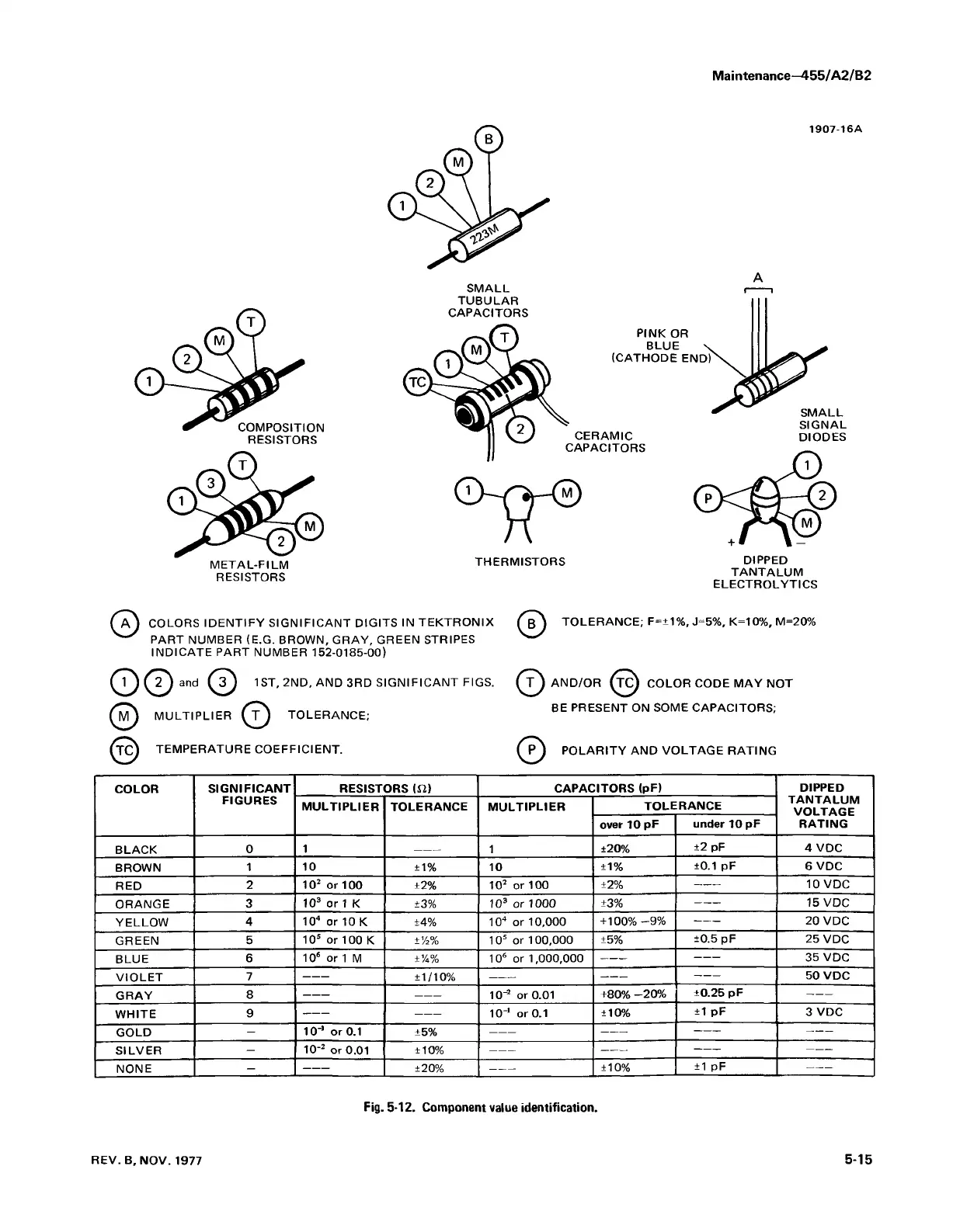

Fig. 5-12. Component value identification.
REV. B, NOV. 1977 5-15
