Tektronix 455 User Manual

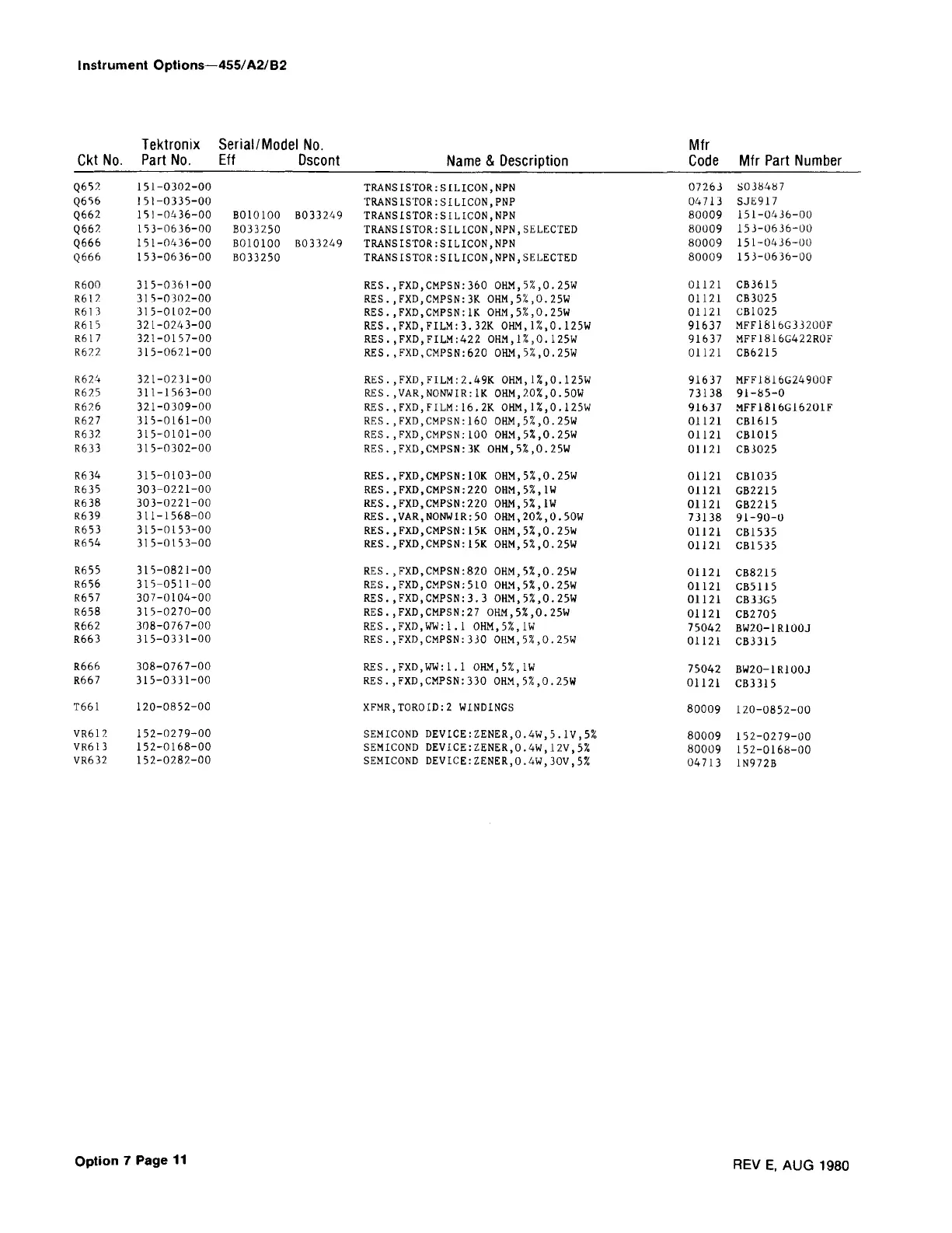

Instrument Options—455/A2/B2
Ckt No.
Tektronix
Part No.
Serial/Model No.
Eft Dscont
Name & Description
Mfr
Code Mfr Part Number
Q652
151-0302-00
TRANSISTOR:SILICON,NPN
07263
S038487
Q656
151-0335-00
TRANSISTOR: SILICON,PNP
04713
SJE917
Q662
151-0436-00
B010100
BO 33249 TRANSISTOR:SILICON,NPN
80009
151-0436-00
Q662
153-0636-00
B033250 TRANSISTOR:SILICON,NPN,SELECTED
80009
153-0636-00
Q666 151-0436-00
B010100
B033249 TRANSISTOR:SILICON,NPN
80009
151-0436-00
Q666
153-0636-00
BO 33 2.50
TRANSISTOR:SILICON,NPN,SELECTED
80009 153-0636-00
R600
315-0361-00
RES. ,FXD,CMPSN:360 OHM,5%,0.25W
01121
CB3615
R612
315-0302-00
RES. ,
FXD,CMPSN: 3K OHM,5%,0.25W
01121 CB3025
R61 3
315-0102-00
RES. ,
FXD,CMPSN:IK OHM,5%,0.25W
01121 CB1025
R6 1 5 321-0243-00
RES. ,FXD,FILM:3.32K OHM,1%,0.125W 91637
MFF1816G33200F
R61 7 321-0157-00
RES. ,
FXD,FILM:422 OHM,1%,0.125W
91637 MFF1816G422R0F
R622
315-0621-00
RES.,FXD,CMPSN: 620 OHM,5%,0.25W
01121
CB6215
R624 321-0231-00
RES. ,
FXD, FILM : 2.49K OHM,1 %,0.125W
91637
MFF1816G24900F
R625 311-1563-00
RES. ,
VAR,NONWIR: IK OHM,20%,0.50W
73138
91-85-0
R626
321-0309-00
RES. ,
FXD,FILM:16.2K OHM,1%,0.125W 91637
MFF1816G16201F
R627
315-0161-00
RES.,FXD,CMPSN:160 OHM,5%,0.25W 01121
CB1615
R632 315-0101-00
RES. ,
FXD,CMPSN:100 OHM,5X,0.25W 01121
CB1015
R633 315-0302-00
RES. ,
FXD,CMPSN:3K OHM,5%,0.25W
01121
CB3025
R6 34 315-0103-00
RES. ,
FXD,CMPSN:10K OHM,5%,0.25W
01121 CB1035
R635 303-0221-00
RES. ,FXD,CMPSN:220 0HM,5%,1W
01121
GB2215
R6 38
303-0221-00
RES. ,FXD,CMPSN:220 0HM,5%,1W
01121 GB2215
R639 311-1568-00
RES. ,VAR,NONWIR:50 OHM,20%,0.50W
73138 91-90-0
R653
315-0153-00 RES. ,FXD,CMPSN:15K OHM,5%,0.25W
01121
CB1535
R654
315-0153-00
RES. ,
FXD,CMPSN:15K OHM,5%,0.25W
01121
CB1535
R653 315-0821-00
RES. ,
FXD,CMPSN:820 OHM,5%,0.25W
01121
CB8215
R656 315-0511-00
RES. ,
FXD,CMPSN:510 OHM,5%,0.25W
01121
CB5115
R657
307-0104-00
RES. ,FXD,CMPSN:3.3 OHM,5%,0.25W
01121
CB33G5
R658
315-0270-00
RES. ,
FXD,CMPSN:27 OHM,5%,0.25W
01121
CB2705
R662 308-0767-00
RES. ,FXD,WW:1.1 OHM,5%,1W
75042
BW20-1R100J
R663 315-0331-00
RES. ,
FXD,CMPSN:330 0HM,5%,0.25W
01121
CB3315
R666 308-0767-00
RES. ,FXD,WW:1.1 OHM,5%,1W
75042
BW20-1R100J
R667 315-0331-00
RES. ,
FXD,CMPSN:330 OHM,5%,0.25W
01121
CB3315
T661
120-0852-00
XFMR,
TOROID:2 WINDINGS
80009 120-0852-00
VR61 2 152-0279-00
SEMICOND DEVICE:ZENER,0.4W,5.1V,5%
80009
152-0279-00
VR6 1 3 152-0168-00
SEMICOND DEVICE:ZENER,0.4W,12V,5%
80009
152-0168-00
VR6 32
152-0282-00
SEMICOND DEVICE:ZENER,0.4W,30V,5%
04713
1N972B
Option 7 Page 11 REV E, AUG 1980
