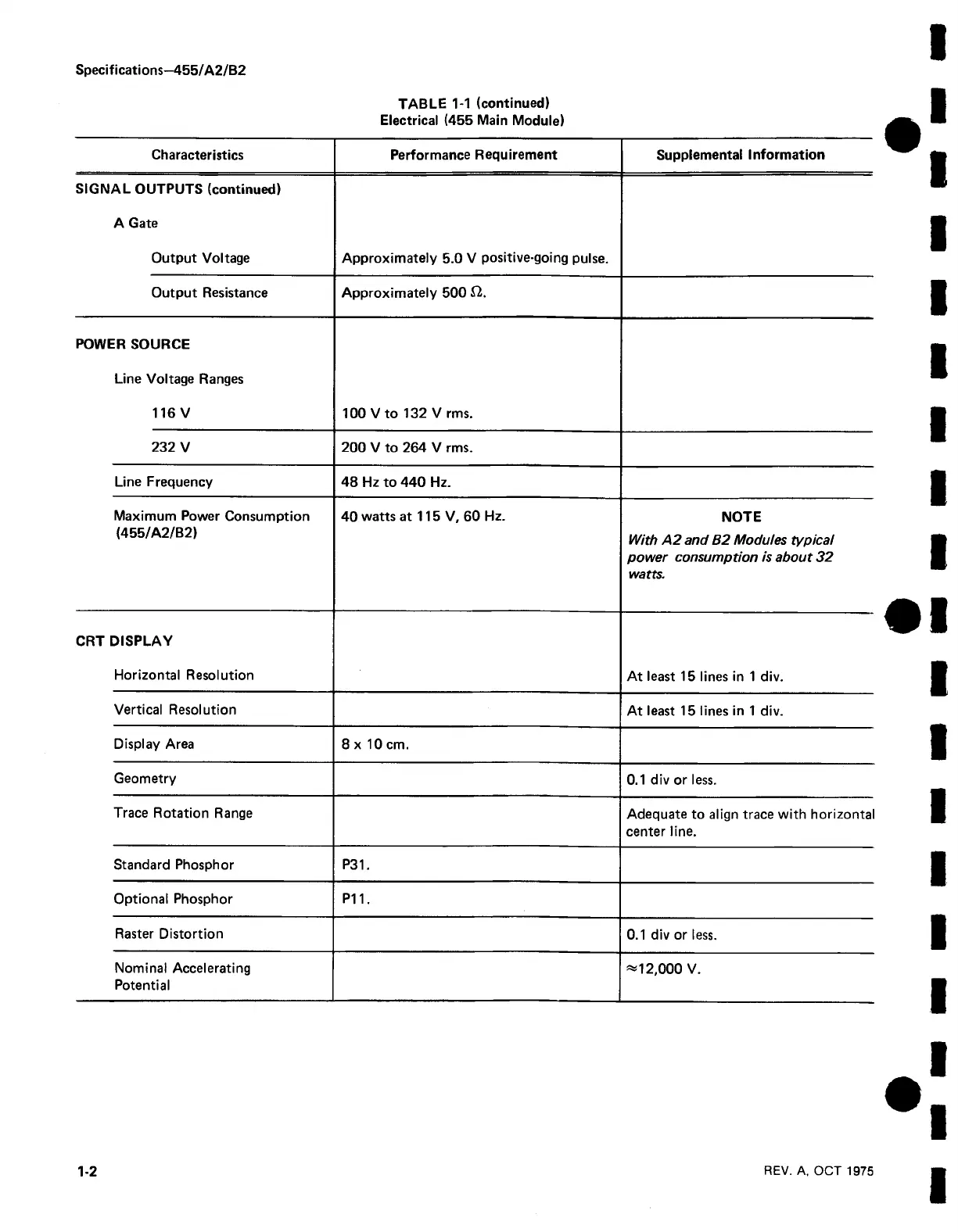

Specifications—455/A2/B2
TABLE 1-1 (continued)
Electrical (455 Main Module)
Characteristics
Performance Requirement
Supplemental Information
SIGNAL OUTPUTS (continued)
A Gate
Output Voltage Approximately 5.0 V positive-going pulse.
Output Resistance Approximately 500 f2.
POWER SOURCE
Line Voltage Ranges
116 V
100 V to 132 V rms.
232 V
200 V to 264 V rms.
Line Frequency
48 Hz to 440 Hz.
Maximum Power Consumption
(455/A2/B2)
40 watts at 115 V, 60 Hz.
NOTE
With A 2 and B2 Modules typical
power consumption is about 32
watts.
CRT DISPLAY
Horizontal Resolution
A t least 15 lines in 1 div.
Vertical Resolution
At least 15 lines in 1 div.
Display Area
8 x 1 0 cm.
Geometry
0.1 div or less.
Trace Rotation Range
Adequate to align trace with horizontal
center line.
Standard Phosphor P31.
Optional Phosphor
P11.
Raster Distortion
0.1 div or less.
Nominal Accelerating
Potential
« 1 2,000 V.
1-2
REV. A, OCT 1975
To Next Page
