d. To exit add/remove vertex mode, tap outside the visual trigger area. The instrument returns to normal operation.

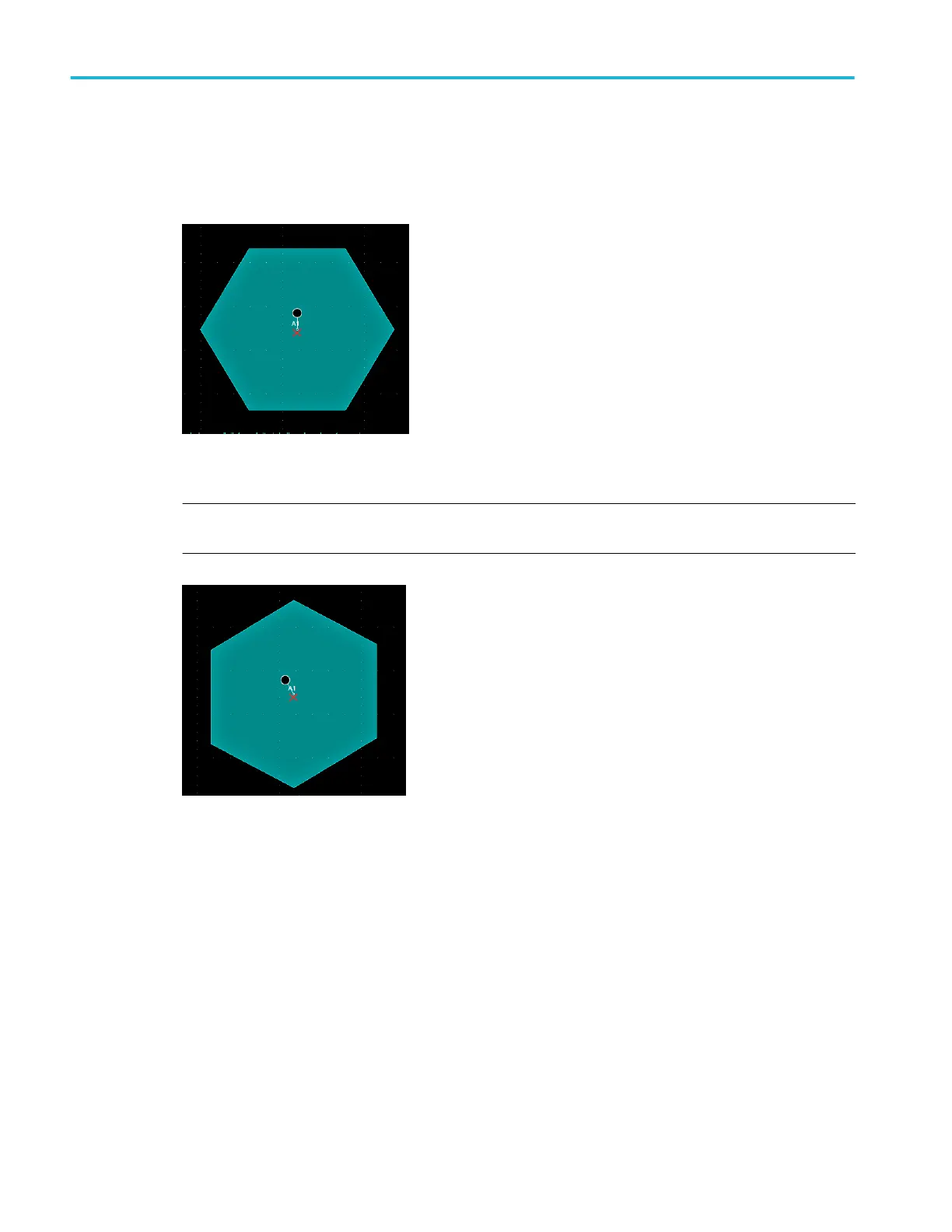

6. To rotate a visual trigger area:
a. Tap four times in the area to enable rotate area mode.
b. Touch and drag the dot in the area to rotate the area.
NOTE. Once you are touching and dragging the rotate dot, you can move your finger outside of the area to get finer
control over the rotation increments.
c. To exit rotate area mode, tap outside the visual trigger area. The instrument returns to normal operation.
Advanced triggering
124 MSO54, MSO56, MSO58, MSO58LP, MSO64 Help
