Configure a measurement
Use this procedure to add statistical readouts to the measurement badge, display plots for the measurement, and refine
measurement parameters (configuration, global versus local scope of settings, gating, filtering, and so on).

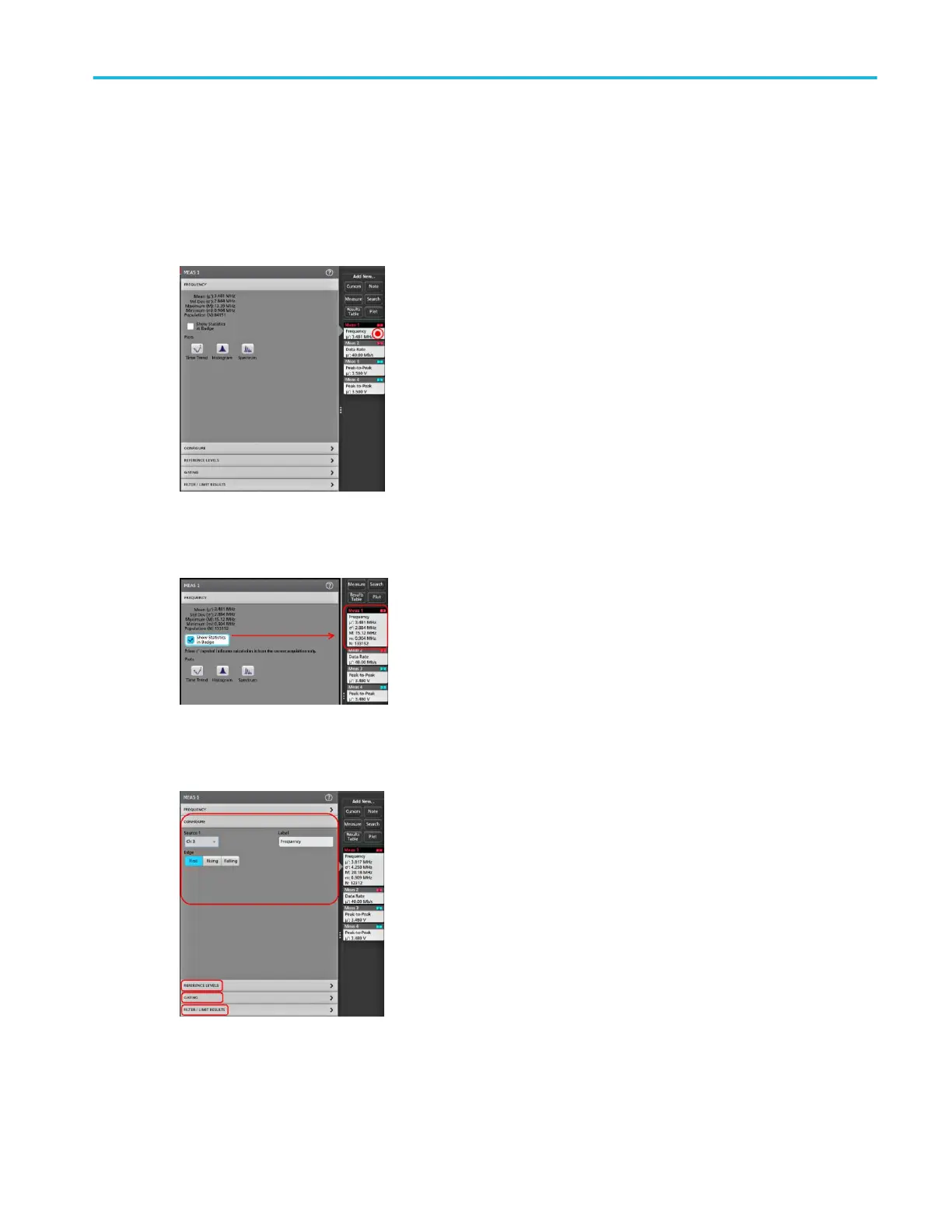

1. Double-tap a measurement badge to open its Measurement configuration menu.
2. Tap Show Statistics in Badge to add statistical readouts to the measurement badge.
3. Tap available panel titles to make changes for those categories.
4. Use the available fields to refine the measurement conditions. Displayed fields depend on the measurement. Selection
changes take effect immediately. Selection changes can also change fields in other panels.
5. Tap the Help button on the menu title for more information on this menu's settings.
6. Tap outside the menu to close the menu.
