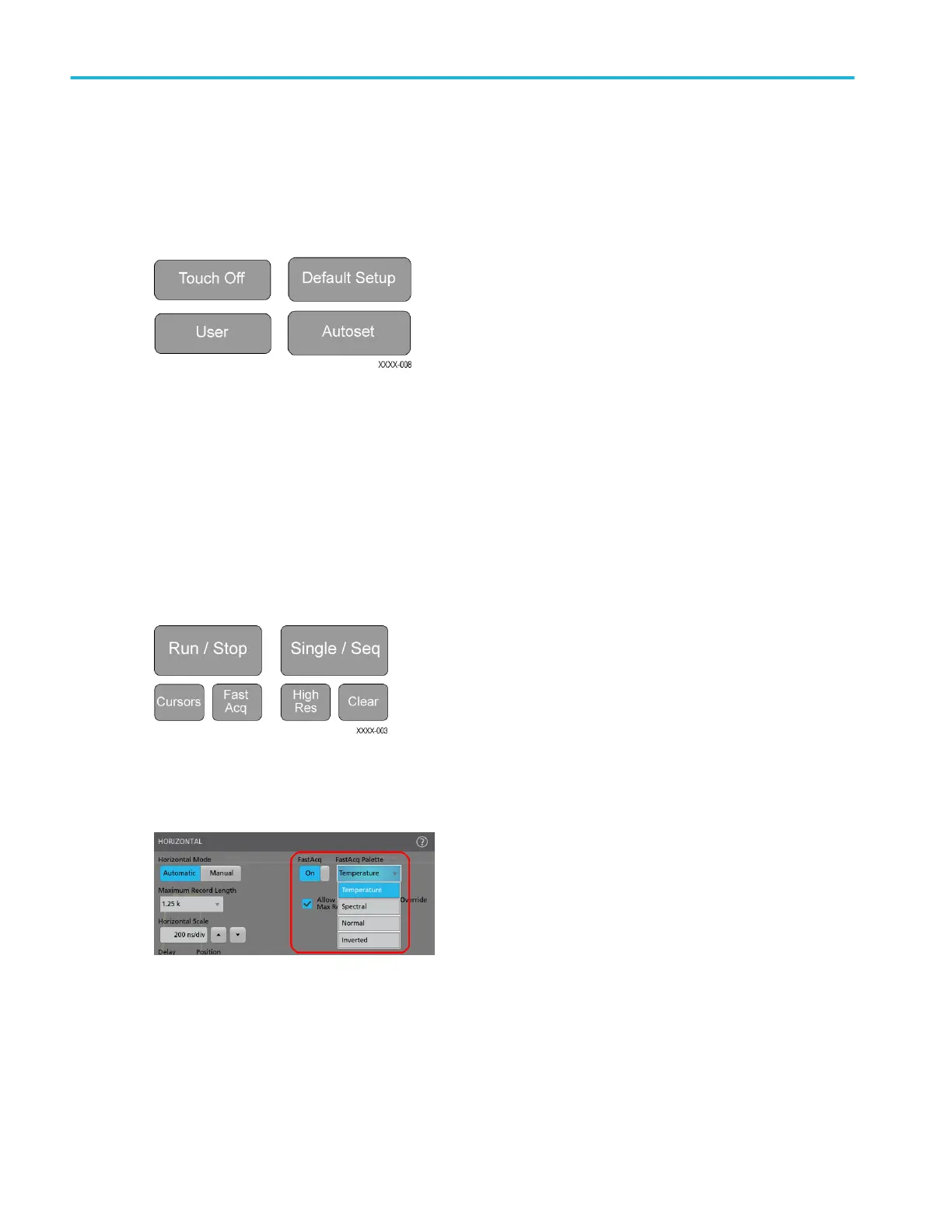

Using Default Setup
Use Default Setup to restore instrument settings to their factory defaults.
1. Press the front panel Default Setup button to return the instrument to its factory default settings (horizontal, vertical, scale,
position, and so on).
2. You can also select File > Default Setup to restore default settings.
Using Fast Acq
Fast Acq (fast acquisition mode) reduces the dead time between waveform acquisitions, enabling the capture and display of
transient events such as glitches or runt pulses. Fast acquisition mode can also display waveform occurrences at intensity levels
that reflect their rate of occurrence.
1. To use Fast Acquisition mode, double-tap the Horizontal badge and tap Fast Acq to toggle Fast Acq to On. You can also
push the Fast Acq front-panel button.
2. To display waveform phenomena at an intensity that reflects their rate-of-occurrence, double-tap the Horizontal badge, tap
the Fast Acq Palette field, and select a display palette from the drop-down.
Analog channel operating basics
108 MSO54, MSO56, MSO58, MSO58LP, MSO64 Help
