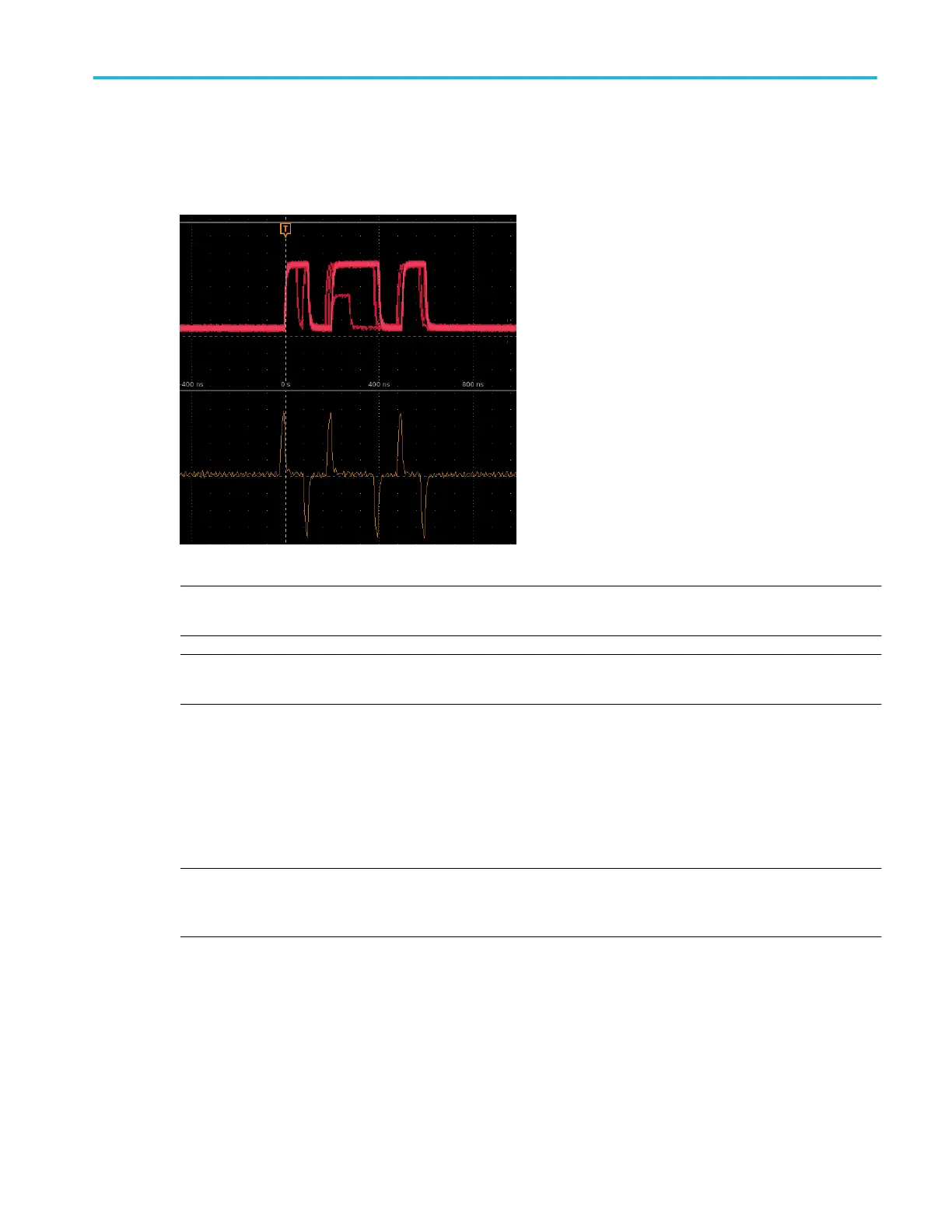

3. View the waveform to find glitches, transients, or other random events. When you have identified an anomaly, use the

advanced trigger system to capture the event of interest for further analysis.

NOTE. If Fast Acquisitions mode is on and you attempt to activate a feature that conflicts with this mode, Fast Acquisitions

mode will be disabled. When the conflicting feature is turned off, Fast Acquisitions will resume in most cases.

NOTE. Enabling FastAcq mode disables FastFrame mode (if it was enabled). Likewise, enabling FastFrame mode disables

FastAcq mode (if it was enabled).

Add a note to a view

Tap the Add New... Note button to add text labels to your waveform and plot views. Use a mouse and keyboard to more easily

edit and position a note.

1. Tap the Add New... Note button. The oscilloscope adds a text placeholder object called Edit text to the Waveform view.

NOTE. The default note field wraps text at about 15 characters, and does not autowrap note text once the text is entered. If

you need longer notes, resize the note field before entering text. Use a mouse to select the note and select a corner to

resize the note field to a larger size.

2. Double-tap on the note text top open the Text Settings configuration menu.

Analog channel operating basics

MSO54, MSO56, MSO58, MSO58LP, MSO64 Help 109
