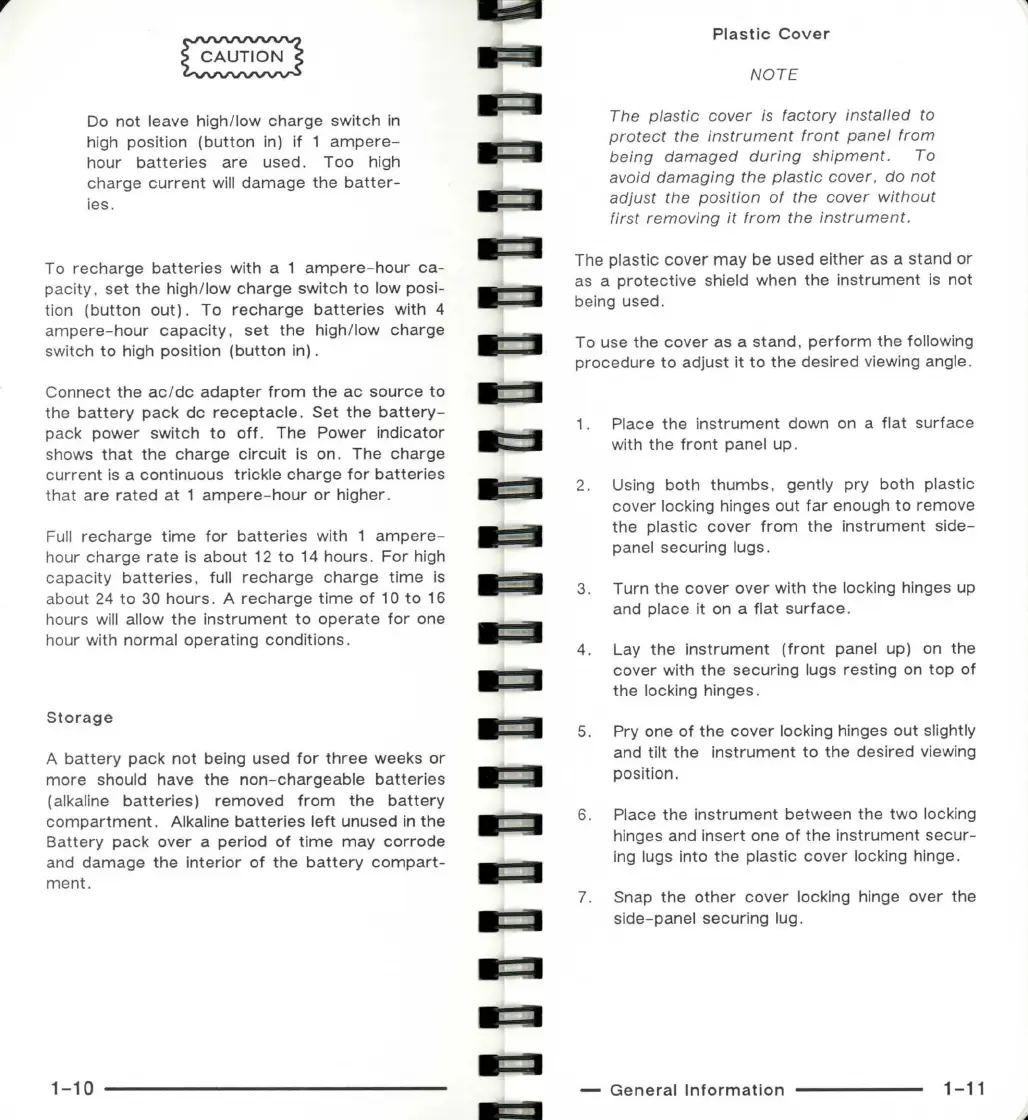

Do not leave high/low charge switch in
high position (button in) if 1 ampere-
hour batteries are used . Too high
charge current will damage the batter-
ies.
To recharge batteries with a 1 ampere - hour ca-
pacity, set the high/low charge switch to low posi-
tion (button out). To recharge batteries with 4
ampere-hour capacity , set the high/low charge
switch to high position (button in).
Connect the ac/dc adapter from the ac source to
the battery pack de receptacle . Set the battery-
pack power switch to off . The Power indicator
shows that the charge circuit is on . The charge
current is a continuous trickle charge for batteries
that are rated at 1 ampere-hour or higher .
Full recharge time for batteries with 1 ampere-
hour charge rate is about 12 to 14 hours . For high
capacity batteries , full recharge charge time is
about 24 to 30 hours . A recharge time of 10 to 16
hours will allow the instrument to operate for one
hour with normal operating conditions.
Storage
A battery pack not being used for three weeks or
more should have the non-chargeable batteries
( alkaline batteries) removed from the battery
compartment . Alkaline batteries left unused in the
Battery pack over a period of time may corrode
and damage the interior of the battery compart-
ment .
1-10
Plastic Cover
NOTE
The plastic cover is factory installed to
protect the instrument front panel from
being damaged during shipment. To
avoid damaging the plastic cover , do not
adjust the position of the cover without
fir st removing it from the in s trument .
The plastic cover may be used either as a stand or
as a protective shield when the instrument is not
being used.
To use the cover as a stand , perform the following
procedure to adjust it to the desired viewing angle.
1 . Place the instrument down on a flat surface
with the front panel up.
2. Using both thumbs , gently pry both plastic
cover locking hinges out far enough to remove
the plastic cover from the instrument side-
panel secu~ng lugs.
3. Turn the cover over with the locking hinges up
and place it on a flat surface.
4. Lay the instrument (front panel up) on the
cover with the securing lugs resting on top of
the locking hinges .
5. Pry one of the cover locking hinges out slightly
and tilt the instrument to the desired viewing
position.
6. Place the instrument between the two locking
hinges and insert one of the instrument secur-
ing lugs into the plastic cover locking hinge.
7. Snap the other cover locking hinge over the
side-panel securing lug .
- General Information -------
1-11
