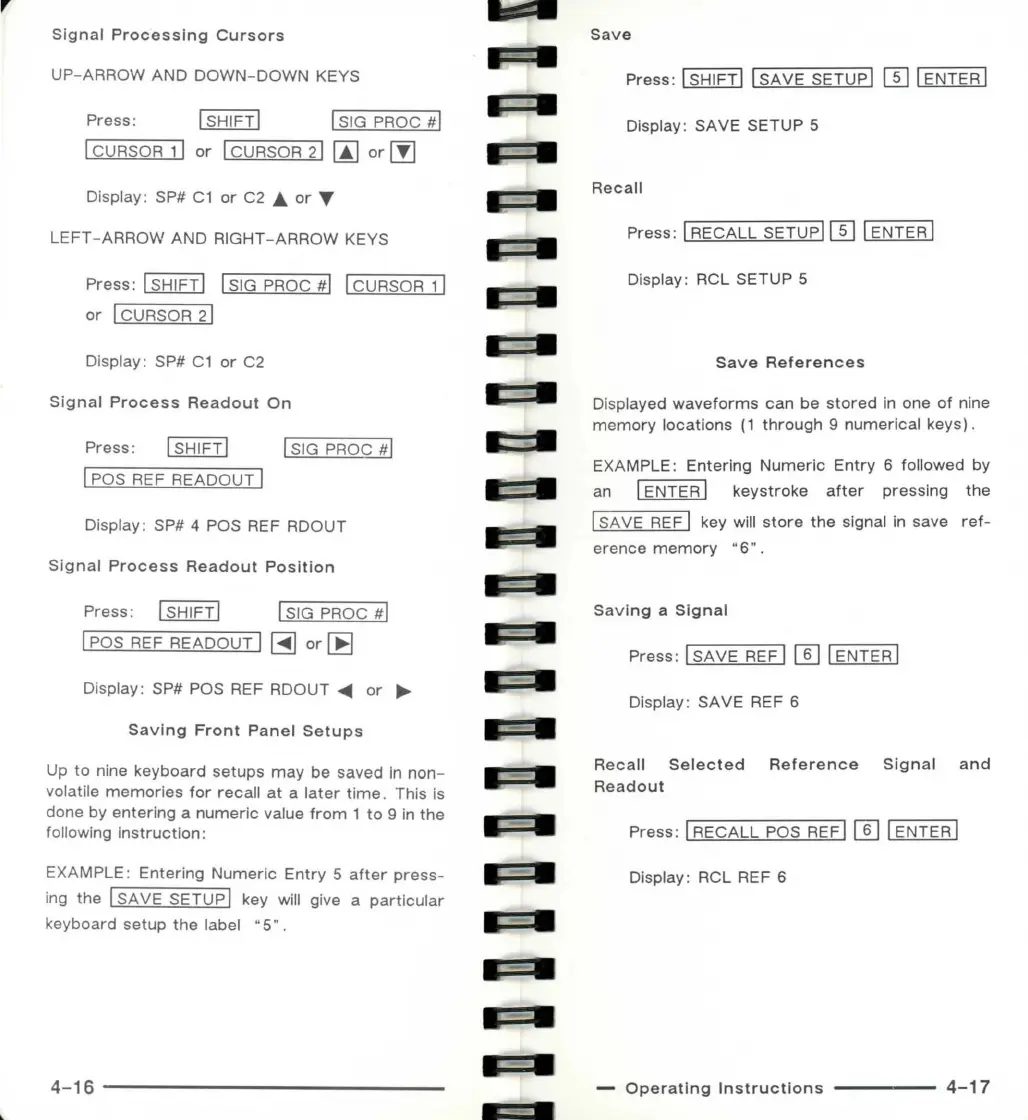

Signal Processing Cursors
UP-ARROW AND DOWN-DOWN KEYS
Press: [filiiu] I SIG PROC #I
I CURSOR 1 I or I CURSOR 2 I ~ or(!]
Display: SP# C1 or C2 A or T
LEFT -ARROW AND RIGHT -ARROW KEYS
Press: [filiiu] I SIG PROC #I I CURSOR 1 I
or I CURSOR 2 I
Display : SP# C1 or C2
Signal Process Readout On
Press:
ISIG PROC #I
I POS REF READOUT I
Display: SP# 4 POS REF RDOUT
Signal Process Readout Position
Press: [filiiu] I SIG PROC #I
I POS REF READOUT I ~ or~
Display : SP# POS REF RDOUT ◄ or ►
Saving Front Panel Setups
Up to nine keyboard setups may be saved in non-
volatile memories for recall at a later time . This is
done by entering a numeric value from 1 to 9 in the
following instruction :
EX AMPLE: Entering Numer ic Entry 5 after press-
ing the I SAVE SETUP I key will give a particular
keyboard setup the label • 5 ...
4-16 --------------
■
■
■
I:
■
■
■
■
IE ■
L
■
•
■
•
■
Save
Press: I SHIFTI I SAVE SETUP I IT:11 ENTER I
Display: SAVE SETUP 5
Recall
Press: I RECALL SETUPI rn I ENTER I
Display: RCL SETUP 5
Save References
Displayed waveforms can be stored in one of nine
memory locations ( 1 through 9 numerical keys) .
EXAMPLE: Entering Numeric Entry 6 followed by
an I ENTER I keystroke after pressing the
I SAVE REF I key will store the signal in save ref-
erence memory " 6" .
Saving a Signal
Press: I SAVE REF 11:1] I ENTER I
Display: SAVE REF 6
Recall Selected Reference Signal and
Readout
Press: I RECALL POS REF 11]] I ENTER I
Display: RCL REF 6
- Operating Instructions -----
4-17
