Application Examples

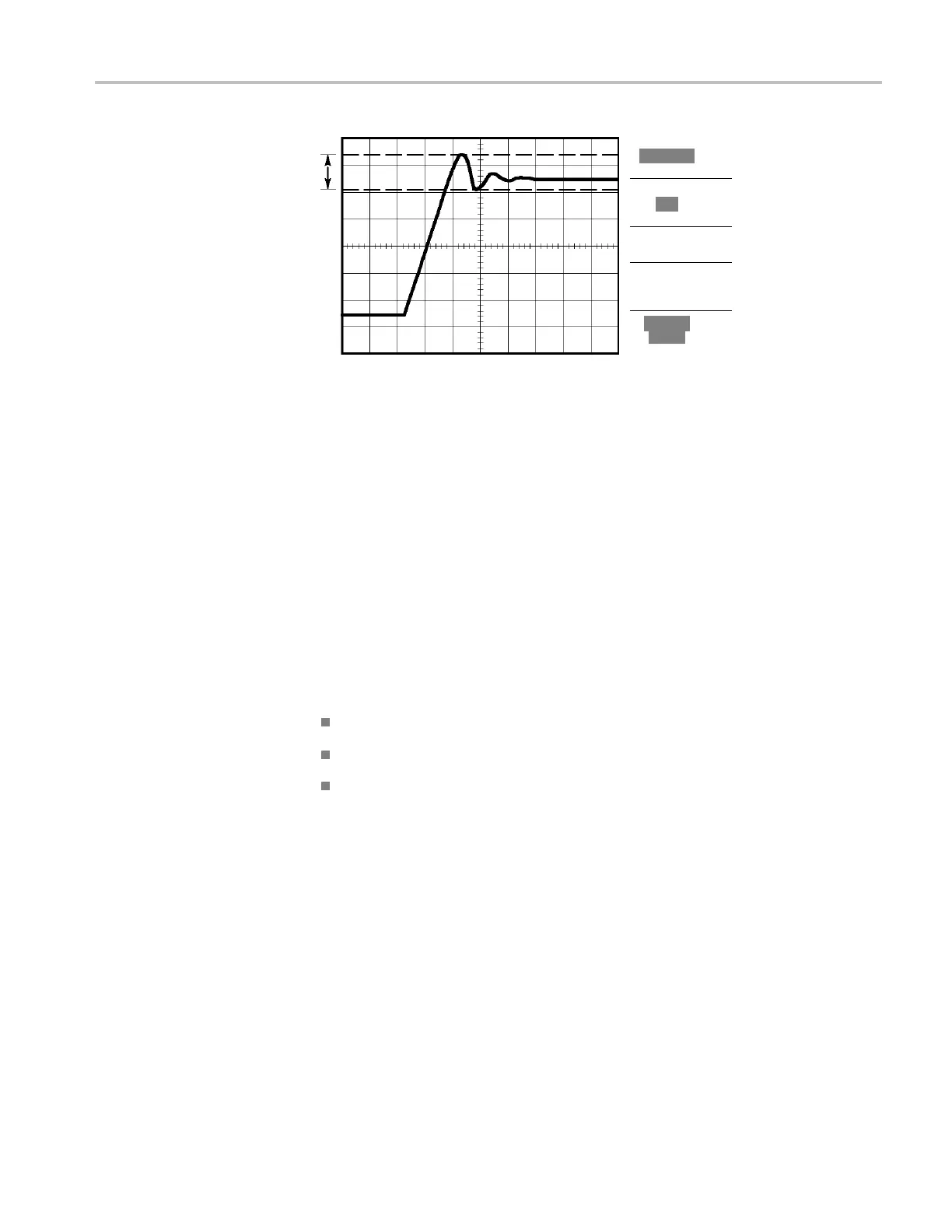

Type
Amplitude
Source
CH1
ΔV 640mV
Cursor 1
1.46V
Cursor 2
820mV
Measuring Pulse Width
If you are analyzing a pulse waveform and you want to know the width of the
pulse, follow these steps:
1. Push the Cursor button to see the Cursor Menu.
2. Push Type ► Time.
3. Push Sou
rce ► CH1.
4. Push the Cursor 1 option button.
5. Turn the multipurpose knob to p lace a cursor on the rising edge of the pulse.
6. Push the Cursor 2 option button.
7. Turn the multipurpose knob to place a cursor on the falling edge of the pulse.
You can se e the following measurements in the Cursor Menu:
The t
ime at Cursor 1, relative to the trigger.
The time at Cursor 2, relative to the trigger.
The Δ (delta) time, which is the pulse width measurement.
TDS2000C and TDS1000C-EDU Series Oscilloscope User Manual 37
