TEK 1201-N Next Generation Presentation Switcher
www.tekvox.com sales@tekvox.com
5. AUDIO OUTPUT
Stereo balanced L/R audio output.
6. DC 24V
Locking power port, connect 24V DC power adapter.
2.3 HDBaseT Receiver

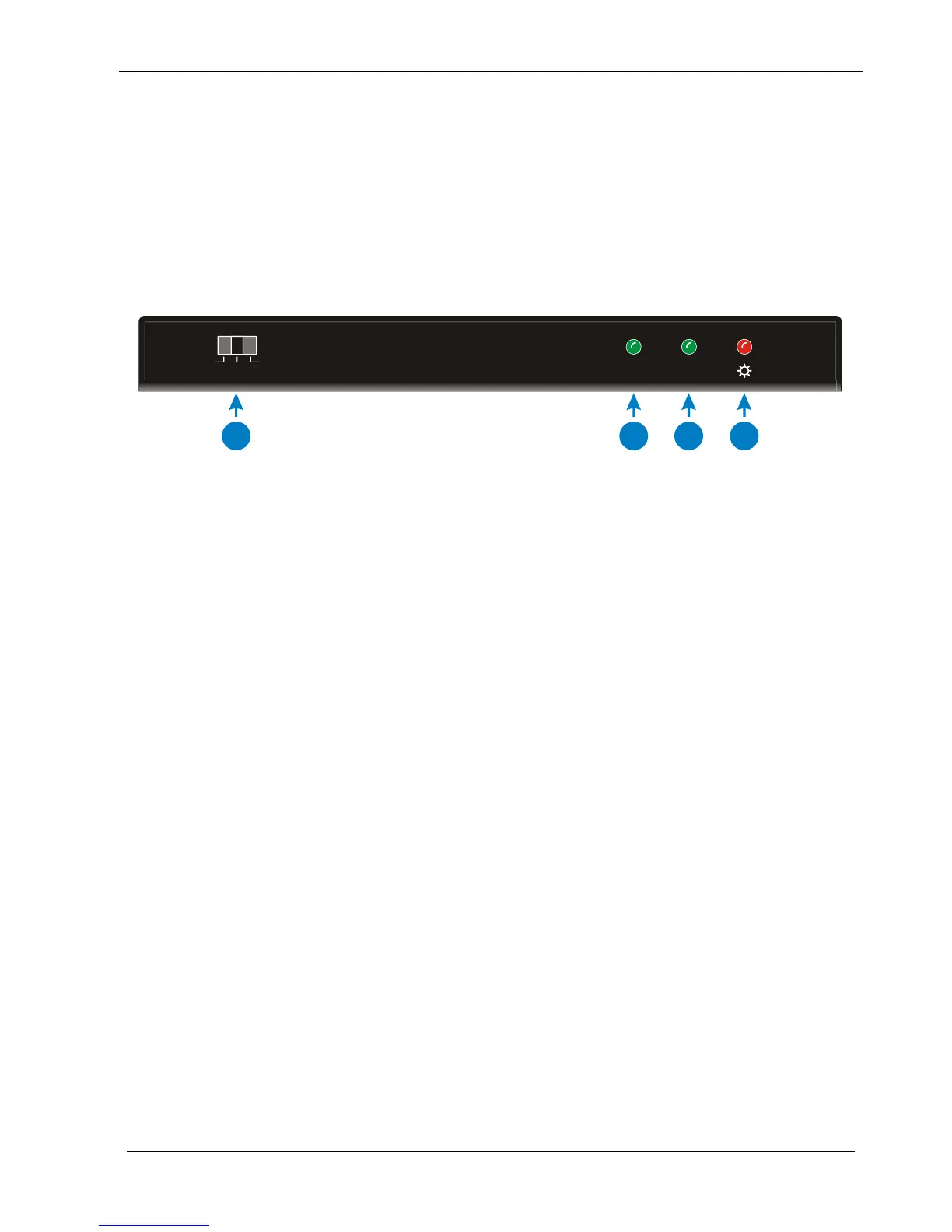

Front Panel 2.3.1
1. RS232 Mode switcher
- CTRL: RS232 pass-through control mode;
- UPDATE A: Update Valens IC program, connect a PC to the RS232
port, and then double-click the update file (.bat).
- UPDATE B: Update the IC program which is used for de-embedding
audio, the upgrade method is the same as the above UPDATE A.
2. Link status LED - OFF: No Link / GREEN: Link successful.
3. HDCP compliant LED - OFF: No HDMI Signal, ON: HDMI signal with HDCP,
Blinking: HDMI signal without HDCP.
4. Power LED - RED when device is powered on.
HDCPLINK
UPDATE A
CTRL
UPDATE B
1
2
3
4
