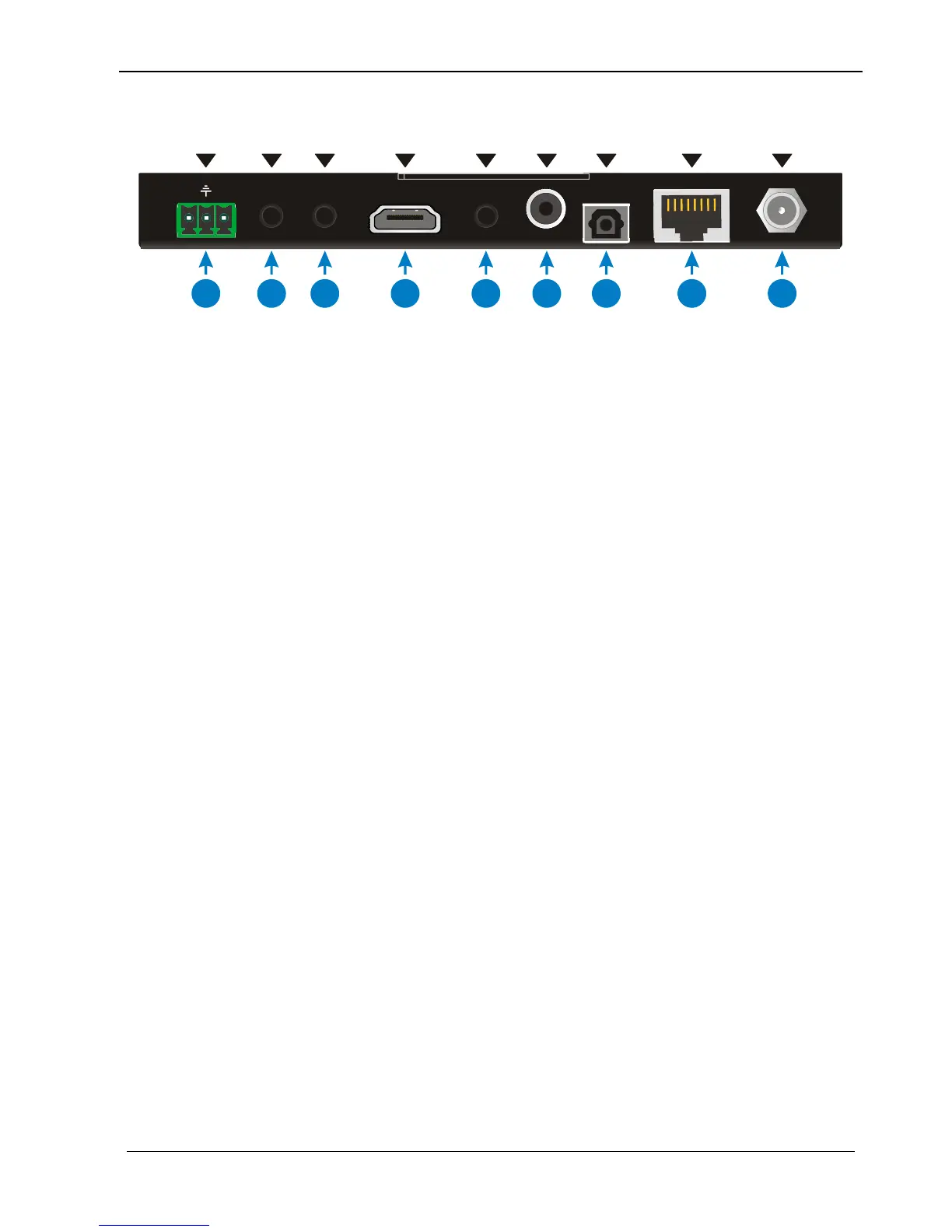

Rear Panel 2.3.2
1. RS232 connector- Connect to TekMonitor Com or Display.
2. IR IN - Work with far-end IR OUT port, connect with IR Receiver (with carrier)
to collect IR signal to control far-end display device from local.
3. IR OUT - Work with far-end IR IN port, connect with IR Emitter to send IR
signal to control input source device.
4. HDMI OUT - HDMI type A connector, connect to display.
5. AUDIO OUT -3.5mm stereo audio jack, connect to analog stereo audio device.
6. COAX OUT - Coaxial audio connector, connect to digital audio device.
7. OPTICAL OUT - Optical audio connector, connect to optical audio devices.
8. HDBT IN - Connect to the HDBT OUT socket on HDBaseT Transmitter or
Matrix Switcher via CAT5e/6a/7 cable, support unidirectional PoH technology.
9. DC 12V power port - Connect to 12VDC power adaptor, or it can be powered
via the Scaler Switcher by PoH technology.
Tx Rx
RS232 DC 12VIR OUT HDMI OUT
HDBT IN
AUDIO
OUT
OPTICAL
OUT
IR IN
COAX
OUT
1
2
3
4
5
6
7
8
9
