Tekvox TEK 1201-N User Manual

TEK 1201-N Next Generation Presentation Switcher
www.tekvox.com 39 sales@tekvox.com
RS232 Control Menu 4.8.3

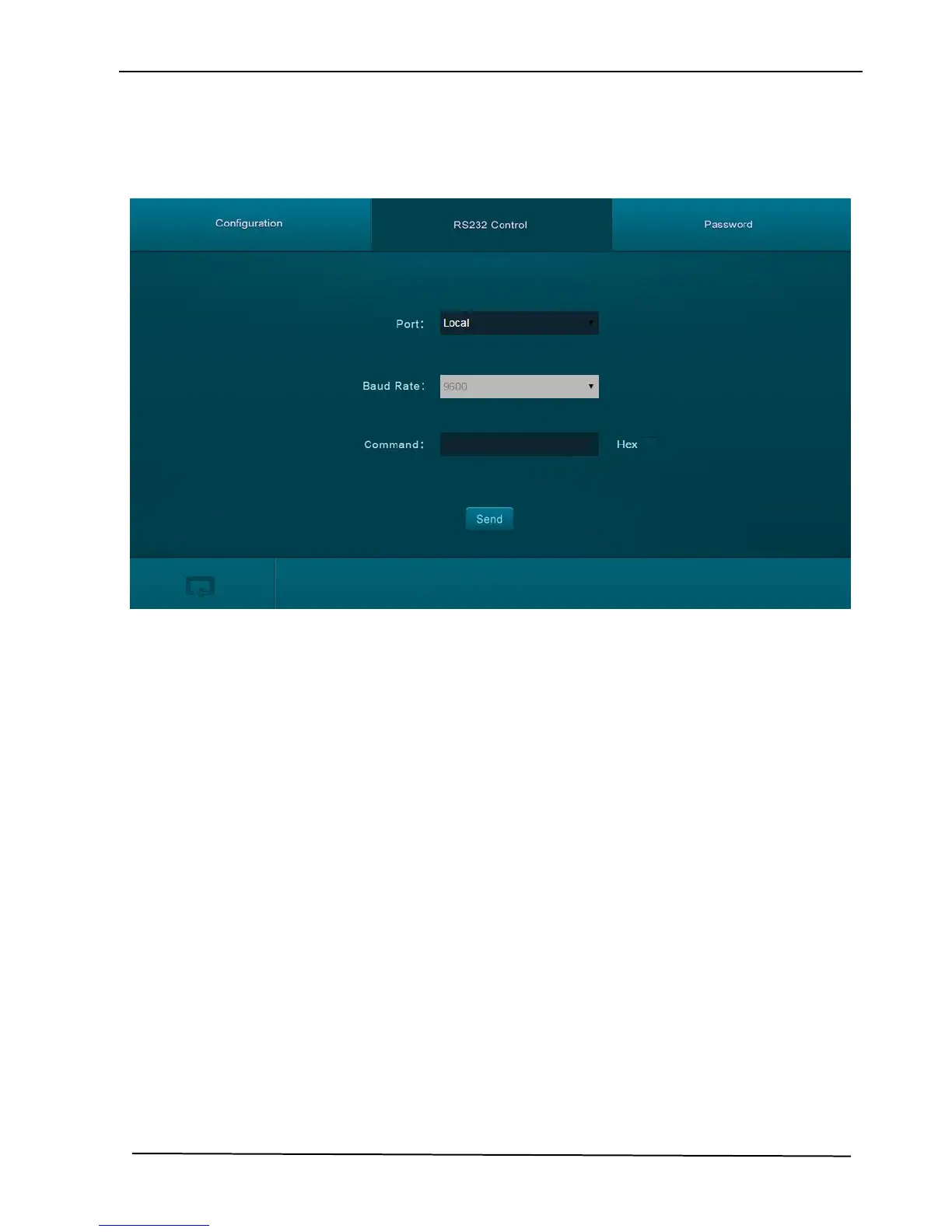

Click RS232 Control on the top of interface to enter RS232 control menu shown as
below:
 Port: Local port refers to the RS232 port of the Scaler Switcher, and the HDBT
port refers to the RS232 port of HDBaseT Receiver.
 Baud Rate: The baud rate of local port is 9600 which can’t be modified, but for
HDBT port, it support 2400、4800、9600、19200、38400、57600、115200.
 Command: Typing commands in this box to control the Scaler Switcher or the
far-end device which is connected to HDBaseT Receiver. If checked the “Hex”,
you can enter hexadecimal value in the “Command” box.
