TEK 1201-N Next Generation Presentation Switcher
www.tekvox.com sales@tekvox.com

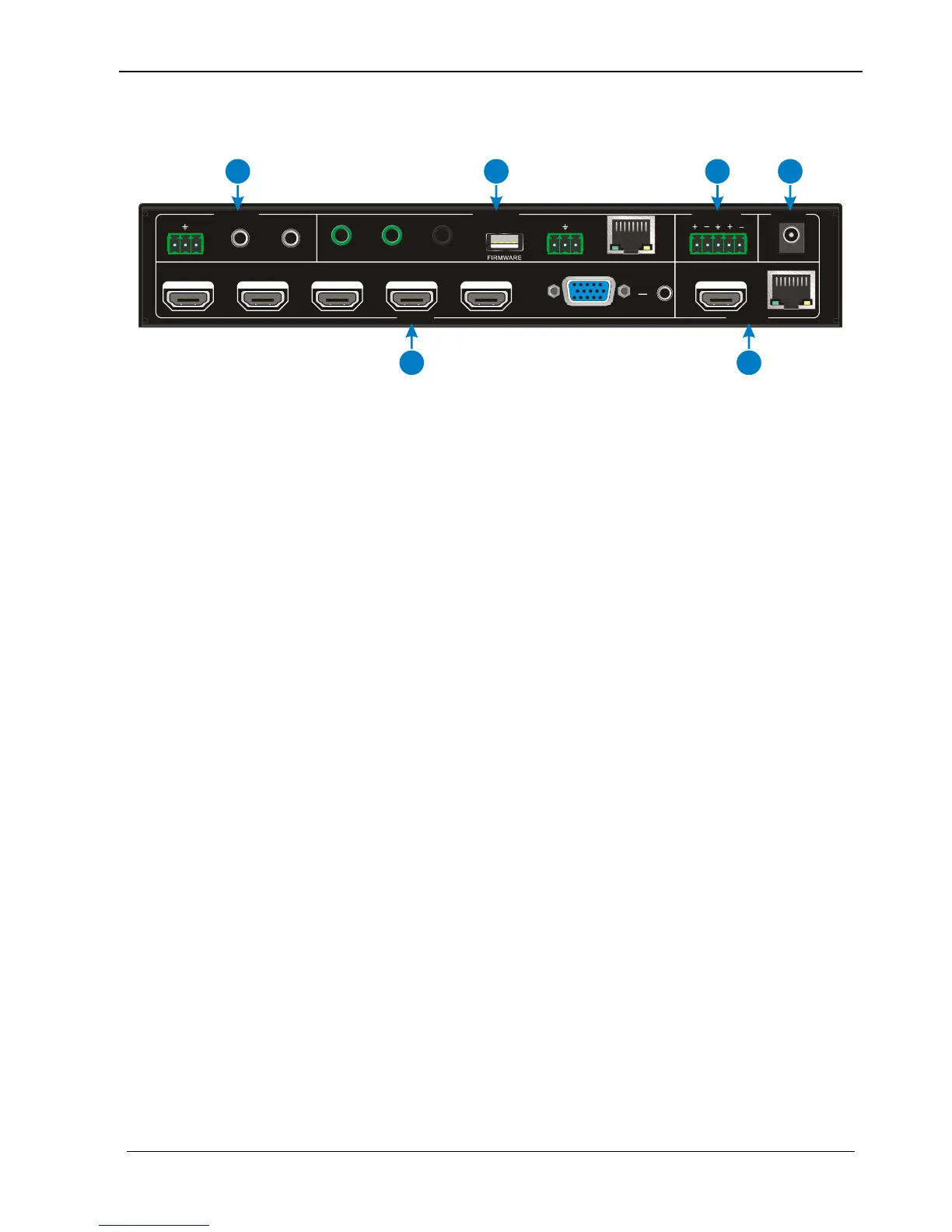

2.2 TEK 1201-N Rear Panel
1. INPUTS
Video input ports: 1 HDMI/MHL input, 4 HDMI inputs and 1 VGA
Audio input ports: 2 external audio input and 1 VGA auxiliary audio input.
2. OUTPUTS
HDMI output: HDMI video output port
HDBaseT output: Supports PoH. Connect with an HDBaseT Receiver to
transmit AV signal or IR/RS232 control signal.
HDBaseT output has green and yellow indicators. The green indicator will blink
when power is active. If connect an HDBaseT receiver links to this output
successfully, the yellow indicator will light up, and the green indicator keeps blinking.
3. AUDIO IN
MIX 3 Pin Stereo connector for mixing audio with the sources.
1-AUDIO & 2-AUDIO: 3.5mm mini jacks for line audio input.
4. CONTROL
IR IN & IR OUT: Connect with IR Receiver and Emitter to control devices
via IR.
IR EYE: connect with IR receiver (with carrier wave only) to receive IR
signal send by IR remote to control this Scaler Switcher.
FIRMWARE: Type-A USB port for updating system firmware or loading
customized EDID data.
RS232: Serial port, 3-pin phoenix connector, connect with a control device
(such as PC) to control the Scaler Switcher or other devices connected with
HDBaseT Receiver.
TCP/IP: Ethernet port, connect with PC to control the Scaler Switcher via
Web-based GUI.
Tx Rx
DC 24V
HDBT
L R
HDMI1-HDMI/MHL
IR EYEIR IN IR OUT TCP/IPRS232
AUDIO IN
1-AUDIO 2-AUDIO
L R
MIX
6-VGA2-HDMI
3-HDMI
4-HDMI
5-HDMI
CONTROL AUDIO OUT POWER
INPUTS
OUTPUTS
1
2
3
4
5
6
