TEK 1201-N Next Generation Presentation Switcher
www.tekvox.com sales@tekvox.com
3. System Connection
3.1 Installation Precautions
1) System should be installed in a clean environment with normal operating
temperatures and humidity.
2) All of the power switches, plugs, sockets, and power cords should be installed
according to safety standards.
3) All cables should be properly terminated and tested before connecting to the unit.
4) All devices should be connected before powering the unit on.

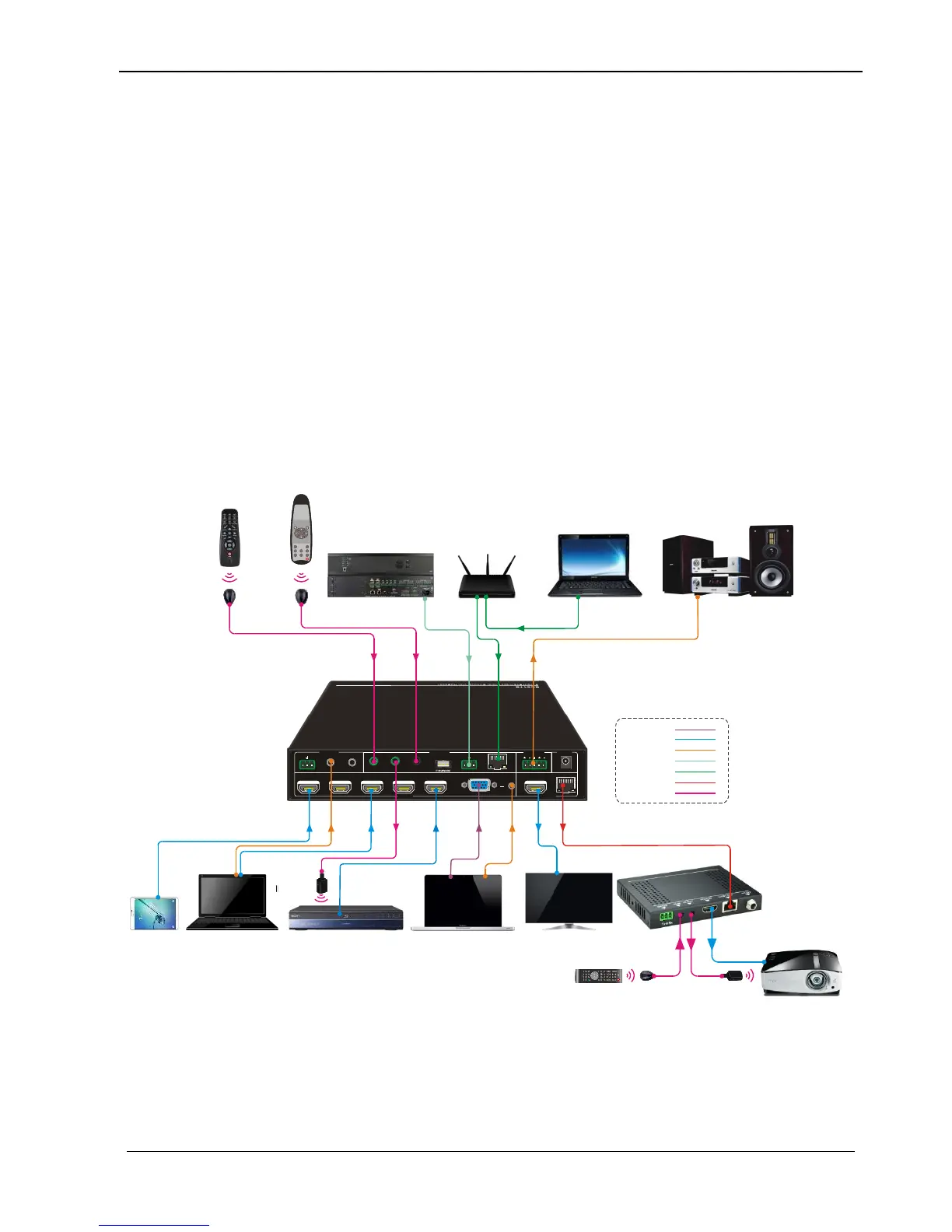

3.2 System Diagram
Laptop
Tx Rx
DC 24 V
HDB T
L R
HDM I1-H DMI/M HL
IR EY EIR IN IR OU T TCP /IPRS2 32
AUD IO IN
1-A UDIO 2-A UDIO
L R
MIX
6-V GA2-H DMI 3-H DMI 4-H DMI 5-H DMI
CON TROL AUD IO OUT POWER
INP UTS OUT PUTS
IR Emitter
Laptop
Projector Remote
Speaker
Scaler Switcher Remote
Control System
Laptop
TV
HDBaseT Receiver
DVD Remote IR Receiver
DVD
Projector
IR Emitter
Pad
IR Receiver
Router
HDMI:
Audio:
HDBaseT:
IR Control:
Ethernet:
VGA:
RS232:
OK
INPUT 1
INPUT 5
INPUT 2 I NPUT 3
INPUT 4
Scaler Swit cher
AUTO
MUTEVOL
