Tekvox TEK 1201-N User Manual

TEK 1201-N Next Generation Presentation Switcher
www.tekvox.com 29 sales@tekvox.com
RS232 Control Modes 4.6.16
There are two RS232 operational control modes for the TEK 1201-N to function with.
One allows a 3
rd
party control system to operate the TEK 1201-N using the local RS232
port on the unit, while also allowing the control system to send RS232 commands to a
display via the RS232 on the HDBaseT receiver. The other (TekMonitor serial control)
allows the TEK 1201-N to be controlled from both the local RS232 port on both the unit
and the HDBaseT receiver.
Control TEK 1201-N and Display from Local RS232 port
This mode allows a 3
rd
party controller to send commands to both the TEK 1201-N
and display device.
1. Connect the RS232 port of TEK 1201-N to RS232 port of PC.
2. Send the command 50787% via RS232 communication software.
3. Send the right command of TEK 1201-N or other remote RS232 device
connected in present system. Connect as shown below:

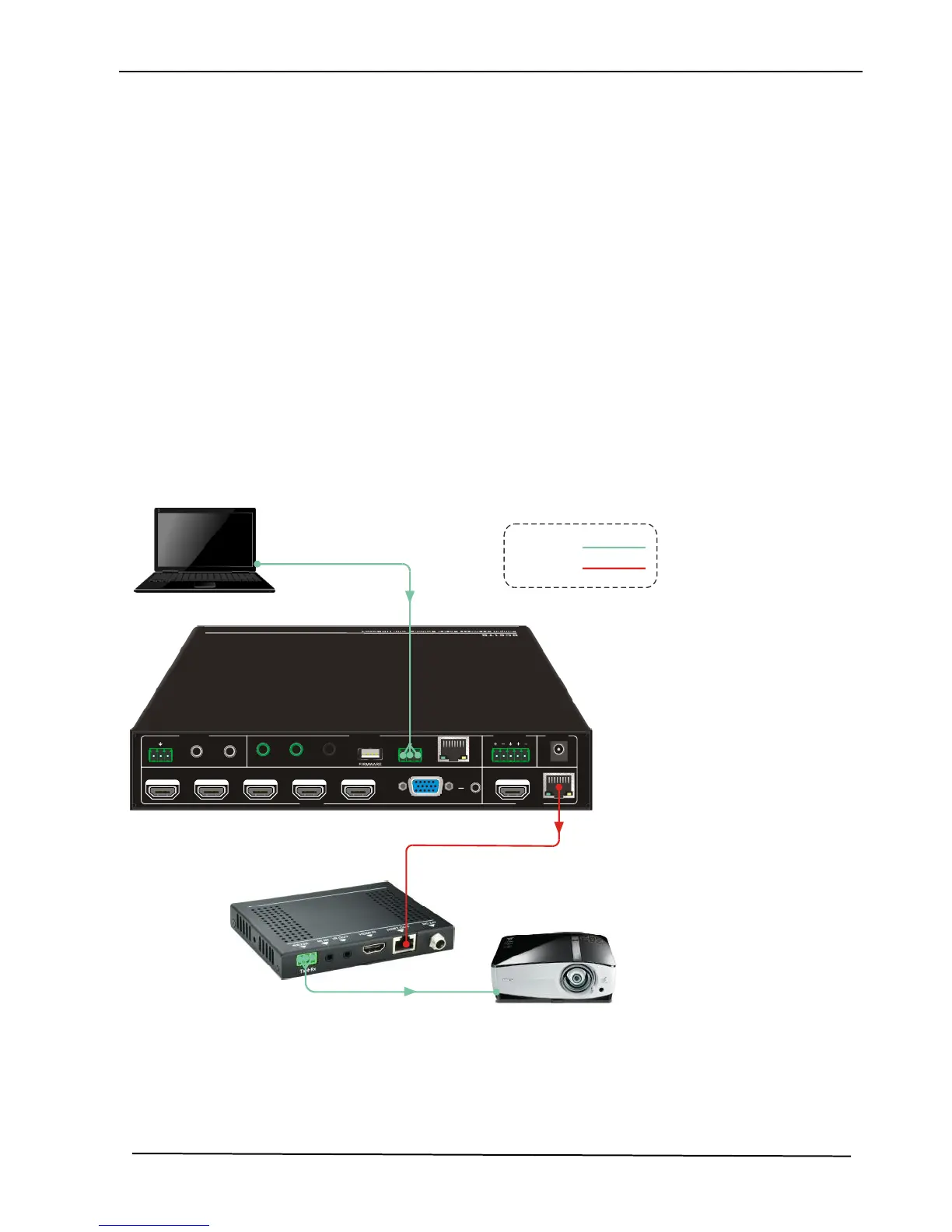

Control 1201-N and display from local
Third-party device
Laptop
Tx Rx
DC 24V
HDBT
L R
HDMI1-HDMI/MHL
IR EYEIR IN IR OUT TCP/IPRS232
AUDIO IN
1-AUDIO 2-AUDIO
L R
MIX
6-VGA
2-HDMI
3-HDMI 4-HDMI 5-HDMI
CONTROL AUDIO OUT POWER
INPUTS OUTPUTS
HDBaseT Receiver
HDBaseT:
RS232:
