TEK 1201-N Next Generation Presentation Switcher
www.tekvox.com 37 sales@tekvox.com
Sources: Click the corresponding button (1-HDMI/MHL, 2-HDMI, 3-HDMI, 4-HDMI,
5-HDMI and 6-VGA) to select video input source.
AUTO: Click this button to enter auto-switching mode.
Adjust: Click this button to adjust the position of VGA video output image to make
sure the best visual effect.
Display: Click this button to turn on/off output display device.
Standby: Click this button to let the Scaler Switcher into standby mode.
Volume: Click the corresponding positive/negative button or move the scroll bar to
turn up/down the MIX/Source audio volume.
Click the corresponding Mute button to mute/unmute Mix/Source audio input.
Configuration Menu 4.8.2

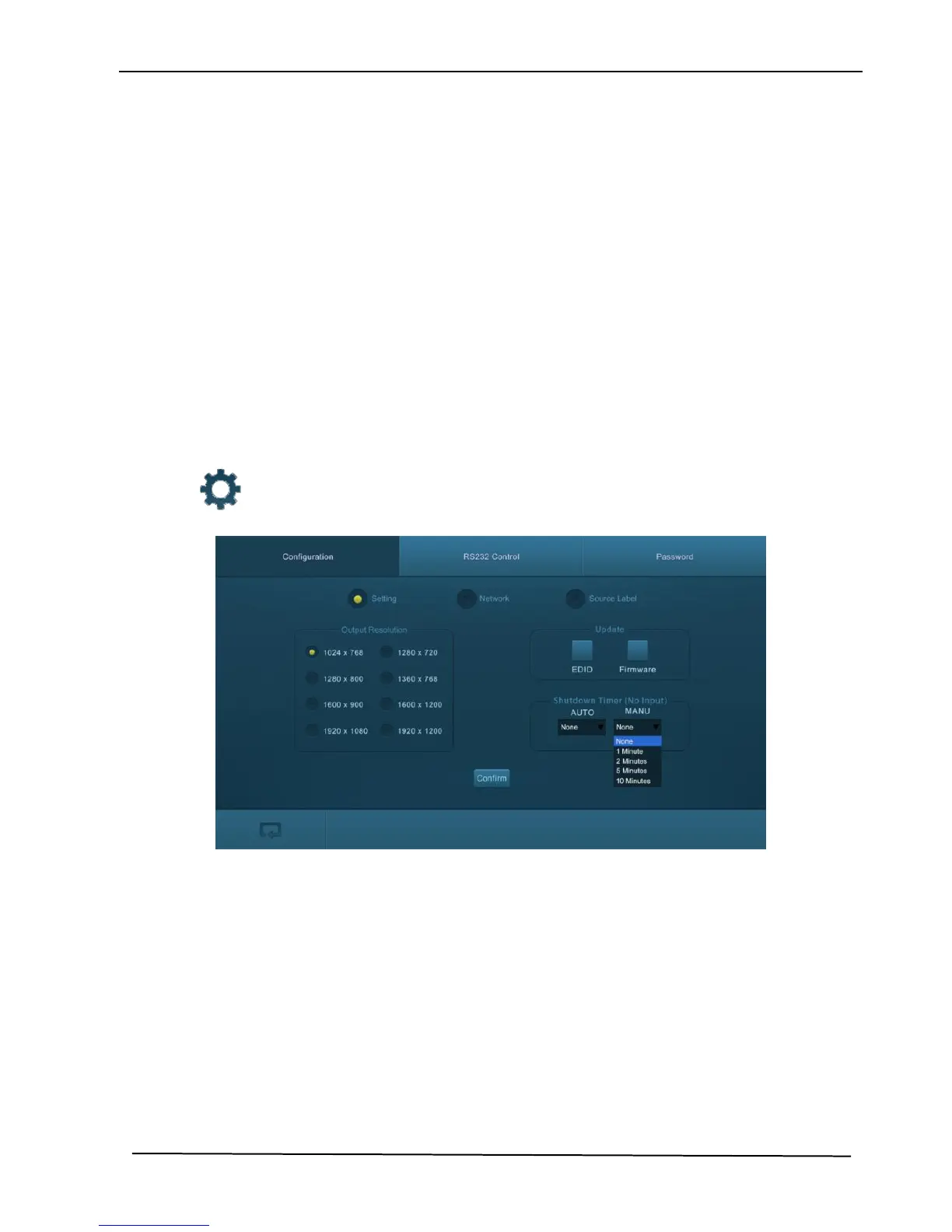

1. Click on control menu to enter setting menu shown as below:
Output Resolution: Select the output resolution that you need and then click
Confirm.
Update: Insert the USB flash disk with EDID file/software updating file to
FIRMWARE port, and then click EDID/Firmware to start update procedure.
Shutdown Timer (NO Input): Set the shutdown time under manual-switching
mode or auto-switching mode, including none, 1 minute, 2minutes, 5minutes and
10 Minutes. If the Switcher can’t detect video source input, it will automatically shut
down after a preset interval.
