TEK 1201-N Next Generation Presentation Switcher
www.tekvox.com sales@tekvox.com
2. Product Appearance

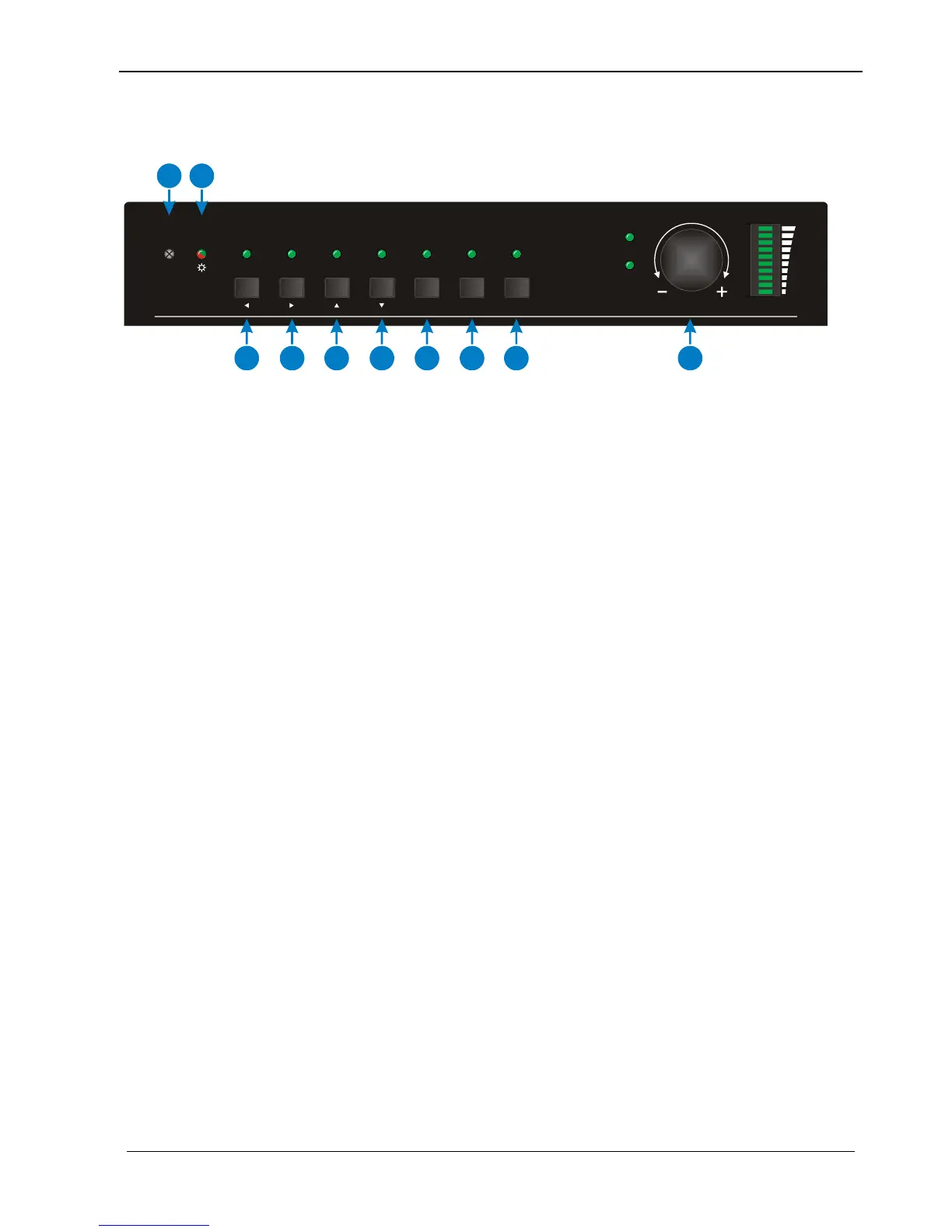

2.1 TEK 1201-N Front Panel
1. Built-in IR Receiver
2. Power indicator
Off when there is no power to the device
Green when the device is in standby mode
Red when the device is powered on.
3. 1-HDMI/MHL input Selector & Activity LED
4. 2-HDMI input Selector & Activity LED
5. 3-HDMI input Selector & Activity LED
6. 4-HDMI input Selector & Activity LED
7. 5-HDMI input Selector & Activity LED
8. 6-VGA input Selector Activity LED
9. Auto-Switching Mode Selector& Activity LED
a. - Press this button to enter or exit auto-switching mode.
b. - Long-press 3s to reset output resolution to 720p or to activate HDMI
and HDBT outputs if they have been turned off.
Note: When you set any VGA port to C-video or YPbPr in Manual-switching mode, the
system will not be able to enter Auto-switching mode.
10. Volume Knob Press to toggle between Mix and Source audio adjustments.
VOLUME
IR
SOURCE
MIX
1-HDMI/MHL 6-VGA
5-HDMI3-HDMI
4-HDMI2-HDMI AUTO
RES RESET/3sMENU/3sENTER
1
2
3
4
5
6
7
8
9
10
