TEK 1201-N Next Generation Presentation Switcher
www.tekvox.com 33 sales@tekvox.com

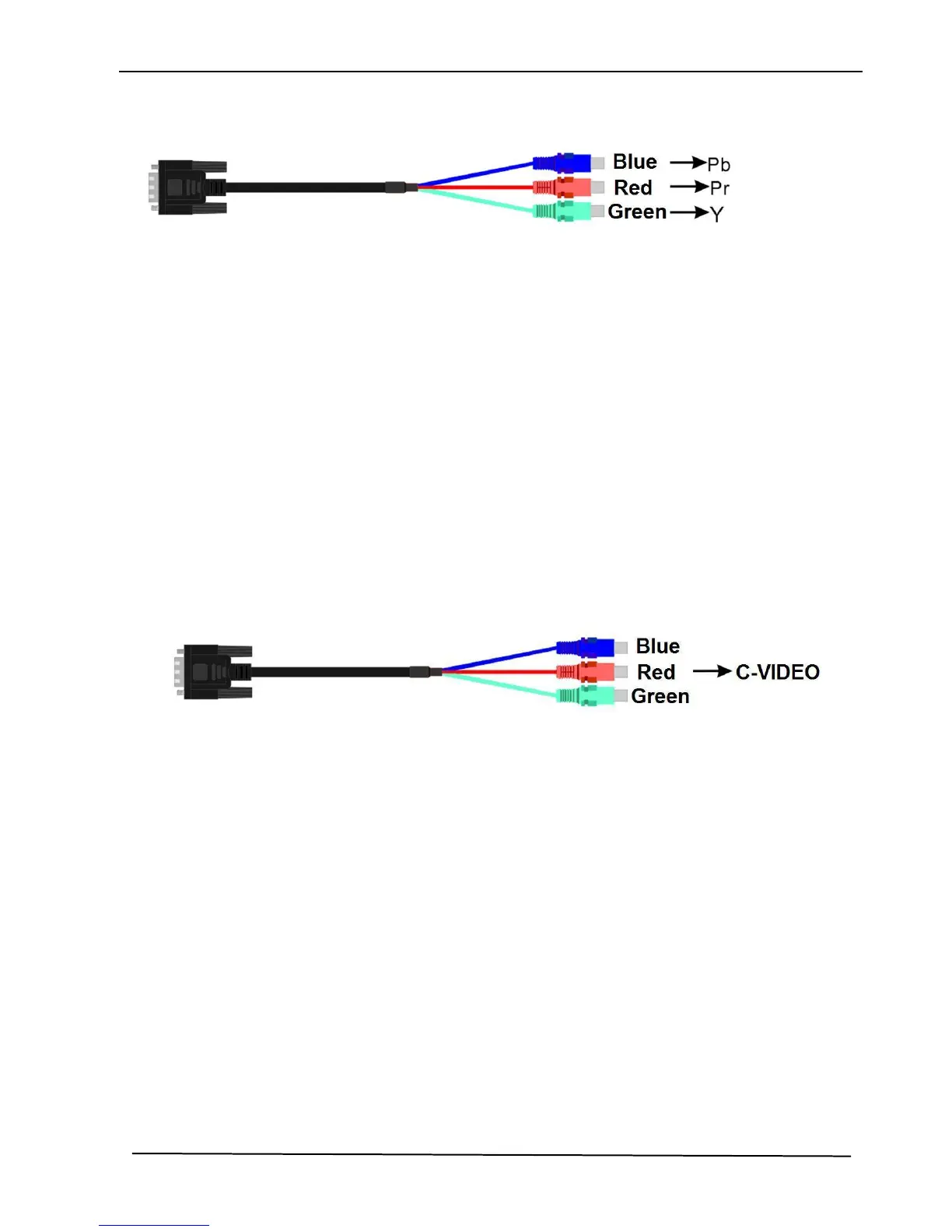

B. Connecting the VGA converting cable like this:
Connect with Composite Video (C-VIDEO) Source
A. Operation Examples:
1. Via front panel buttons and OSD
Press the MENU button on the front panel to enter into OSD and enter into the
OPTION setting menu: set “INPUT 5 Select” to AV.
Via RS232 commands
Send command 50685% to switch to YPbPr source.
2. Via IR remote & OSD
Press MENU button on IR remote to enter into OSD and in the OPTION setting
menu, set “INPUT 5 Select” to AV source.
B. Connecting the VGA converting cable like this:
