LE910Cx Hardware Design Guide

1VV0301298 Rev.40 Page 101 of 149 2023-03-16

Not Subject to NDA

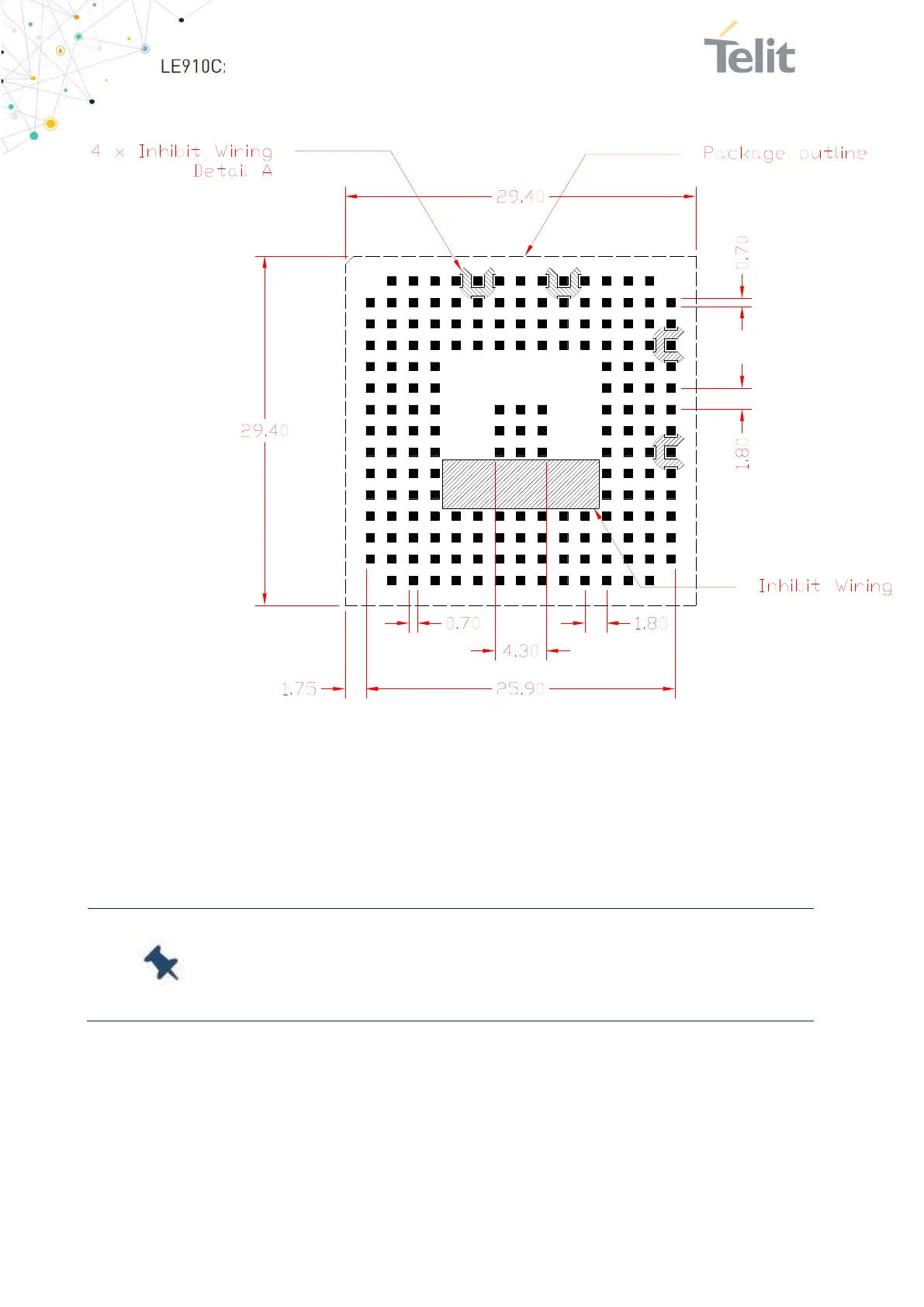

Figure 31-1: Recommended Footprint, Copper pattern - Top View, 181 pads for LE910Cx-WWX only

(dimensions in mm)

Note: LE910Cx-WWX footprint is same as LE910Cx variants but PCB

size is differenct others.

Please, refer to above dimension for LE910Cx-WWX.
