LE910Cx Hardware Design Guide
1VV0301298 Rev.40 Page 35 of 149 2023-03-16
Not Subject to NDA
LGA Pads Layout

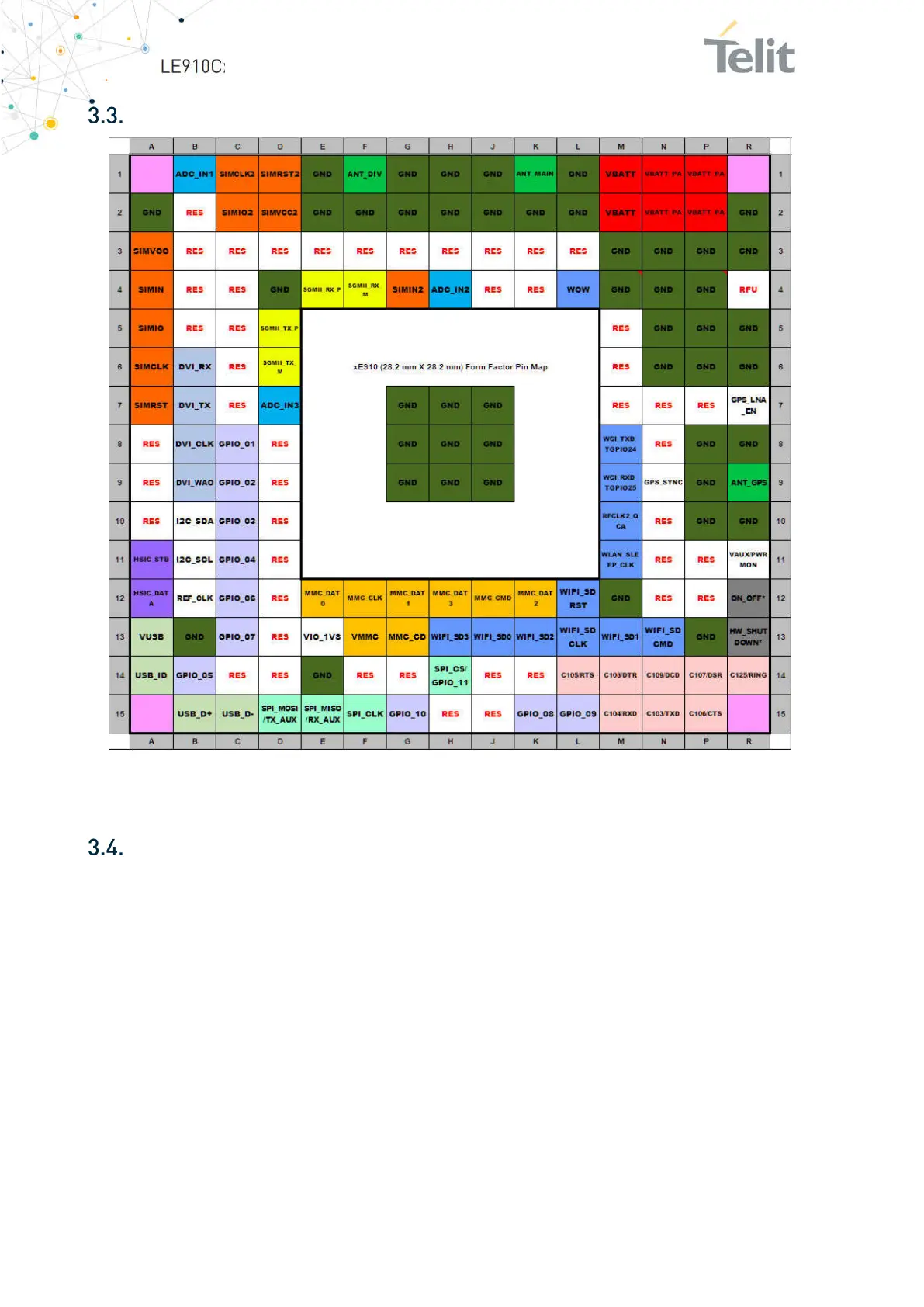

Figure 2: LGA Pads Layout ( Top View)
Backward Compatibility to xE910 Family
The LE910Cx is a new series in the xE910 form factor
The LE910Cx is fully backward compatible with the previous xE910 in terms of:
Mechanical dimensions
Package and pin-map
To support the extra features and additional interfaces, the LE910Cx introduces more
pins than the xE910.
The extra pins of the LE910Cx can be considered as optional if not needed and can be left
unconnected (floating) if not used.
