Teltonika RUT9 Series User Manual

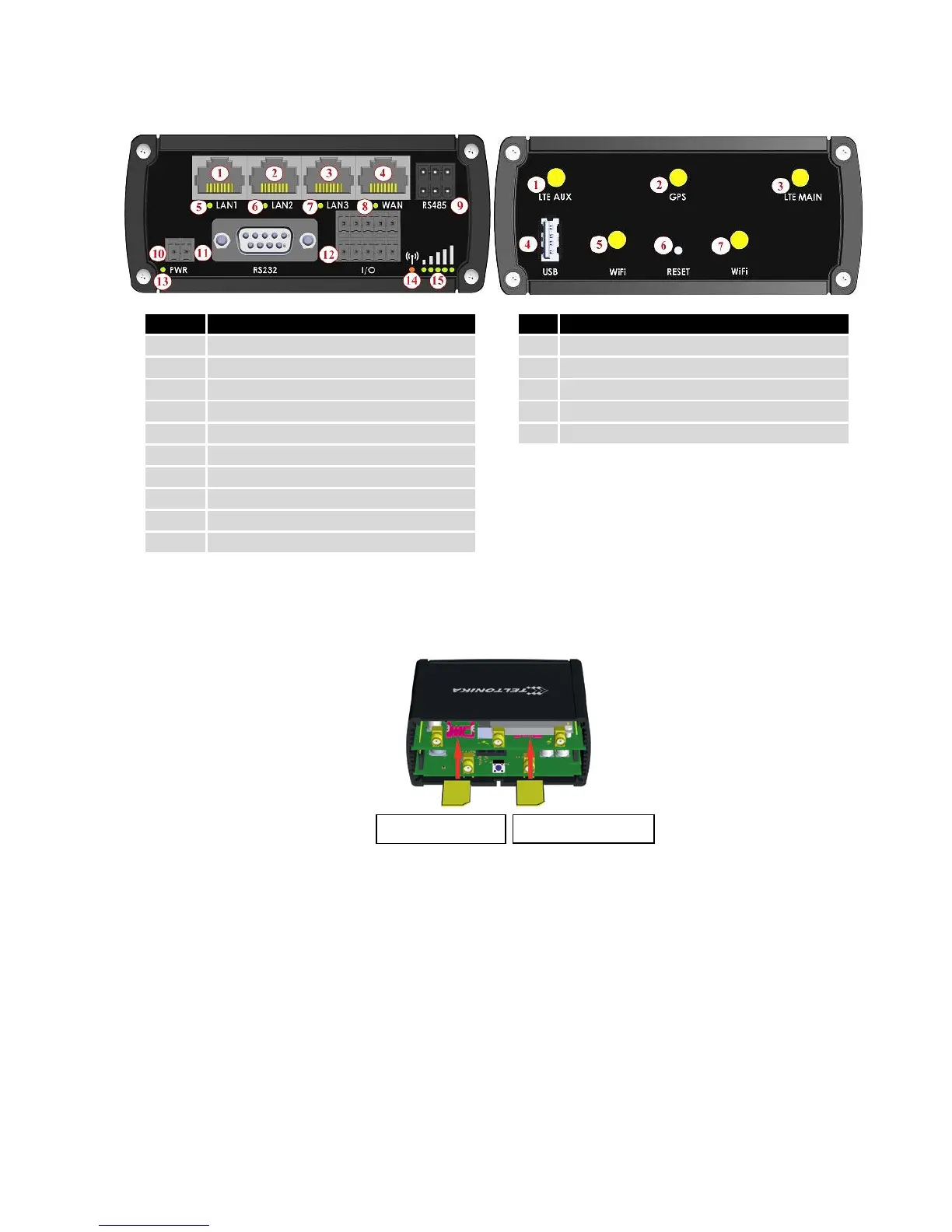

3.1.1 Front Panel and Back Panel
1,2,3
LAN Ethernet ports
1
LTEauxiliary antenna connector
4
WAN Ethernet port
2
GPS antenna connector
5,6,7
LAN LEDs
3
LTE main antenna connector
8
WAN LED
4
USB connector
9
RS485 connector
5,7
WiFi antenna conectors
10
Power socket
6
Reset button
11
RS232 connector
12
Inputs and outputs connector
13
Power LED
14
Connection LED
15
Signal strength LED
3.1.2 Hardware installation
1. Remove back panel and insert SIM card which was given by your ISP (Internet Service Provider). Correct SIM card
orientation is shown in the picture.
2. Attach LTE main and Wi-Fi antennas.
3. Connect the power adapter to the socket on the front panel of the device. Then plug the other end of the power
adapter into a wall outlet or power strip.
4. Connect to the device wirelessly (SSID: Teltonika_Router) or use Ethernet cable and plug it into any LAN Ethernet
port.
SIM 1 (primary)
SIM 2 (secondary)
12
