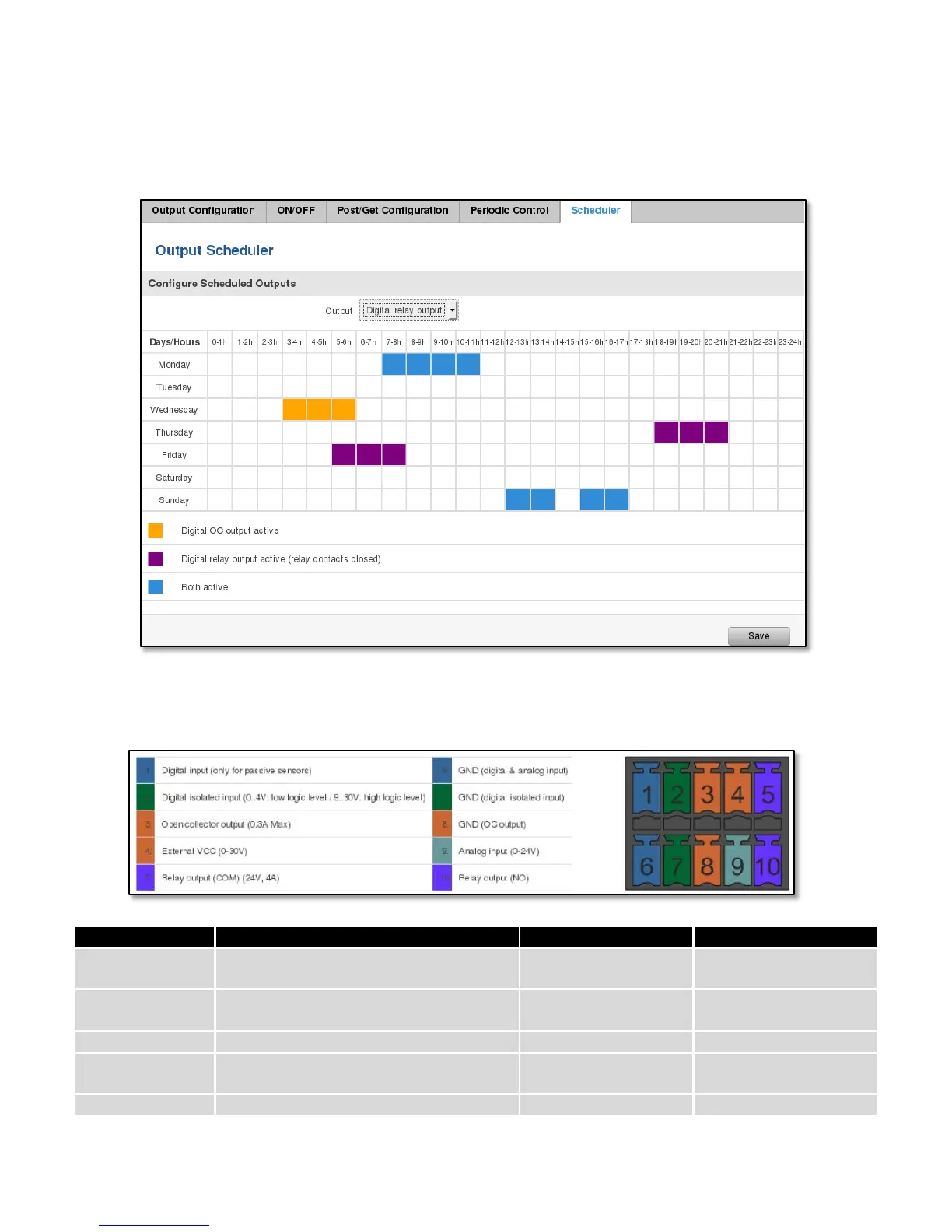

8.17.3.5 Scheduler
This function allows you to set up the periodical, hourly schedule for the outputs. You can select on which week
days the outputs are going to be on or off.
8.17.4 Input/Output hardware information
The Input/output (I/O) connector is located in the front panel next to LEDs. Pin-out of the I/O connector:
Type
Description
Ratings
QTY
Input (digital)
Digital non-isolated input for passive
sensors
3V Max
1
Input(digital)
Digital input with galvanic isolation
0..4V low level
9..30V high level
1
Input (analog)
Analog input (0-24V)
24V Max
1
Output (Open
collector)
Open collector (OC) output
30V, 0.3A
1
Output (relay)
SPST relay output
24V, 4A
1
141
