Tenda A301 User Manual

43

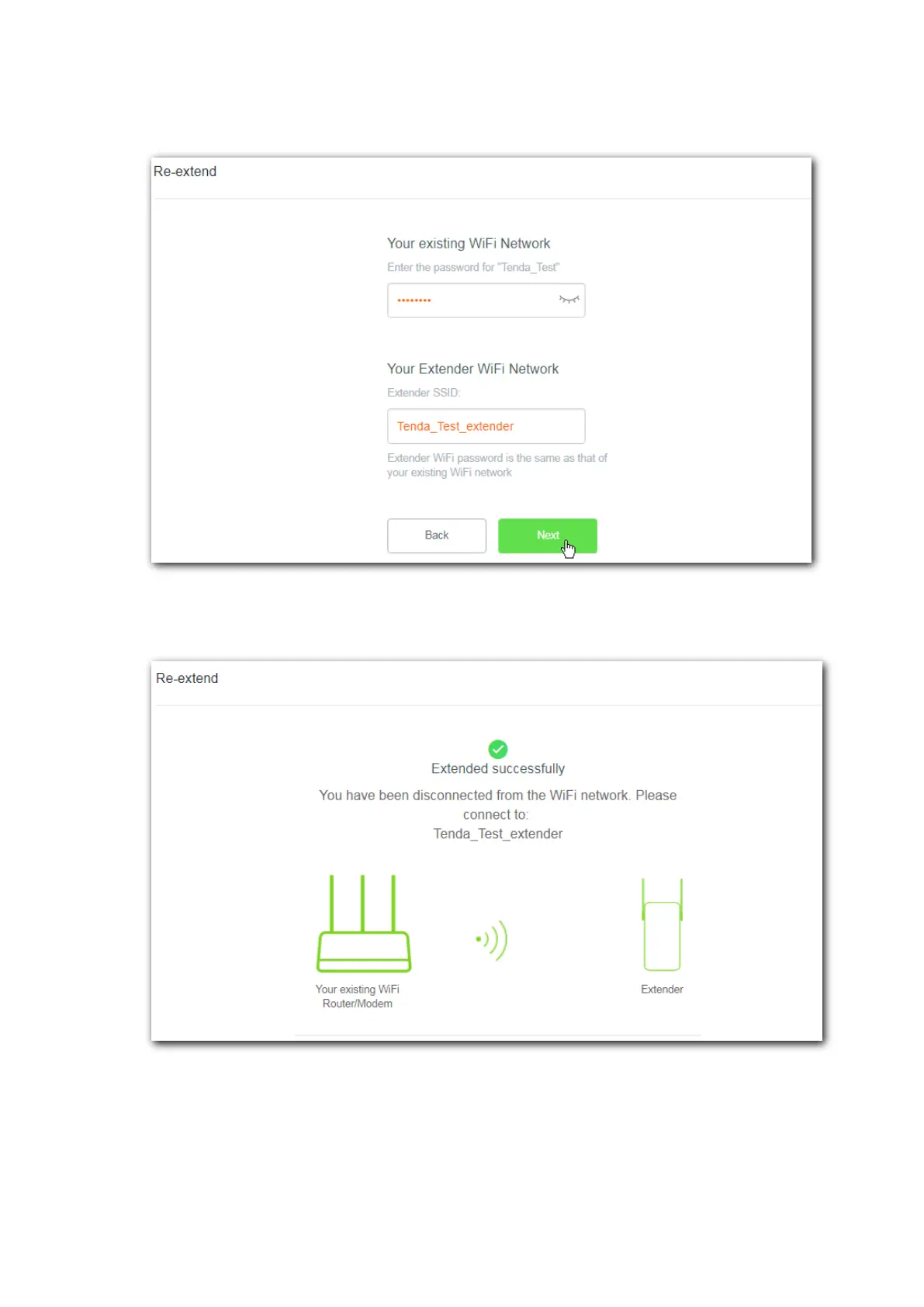

Step 3 Enter the WiFi password of the WiFi network you selected, modify the SSID of extender
as needed, which is Tenda_Test_extender in this example, and click Next.
Step 4 Wait until the Extended successfully page pops up. The LED indicator on the extender may
light solid blue or red.
Step 5 Relocate the extender guided by the LED indicator colors.
− Solid blue: Proper position and good connection quality.
− Solid red: Move the extender closer to the WiFi router.
*
*

Tenda A301 Specifications

General

Type	Network transmitter
Maximum transfer distance	- m
Antennas quantity	2
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Security algorithms	WEP, WPA-PSK, WPA2-PSK
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Wi-Fi data rate (max)	300 Mbit/s
RJ-45 ports quantity (transmitter)	1
Output current	0.7 A
Output voltage	5 V
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	-40 - 70 %
Operating relative humidity (H-H)	10 - 90 %
Certification	CE, FCC
Sustainability certificates	RoHS
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	110 mm
Width	55 mm
Height	39 mm
