Tenda A301 User Manual

3

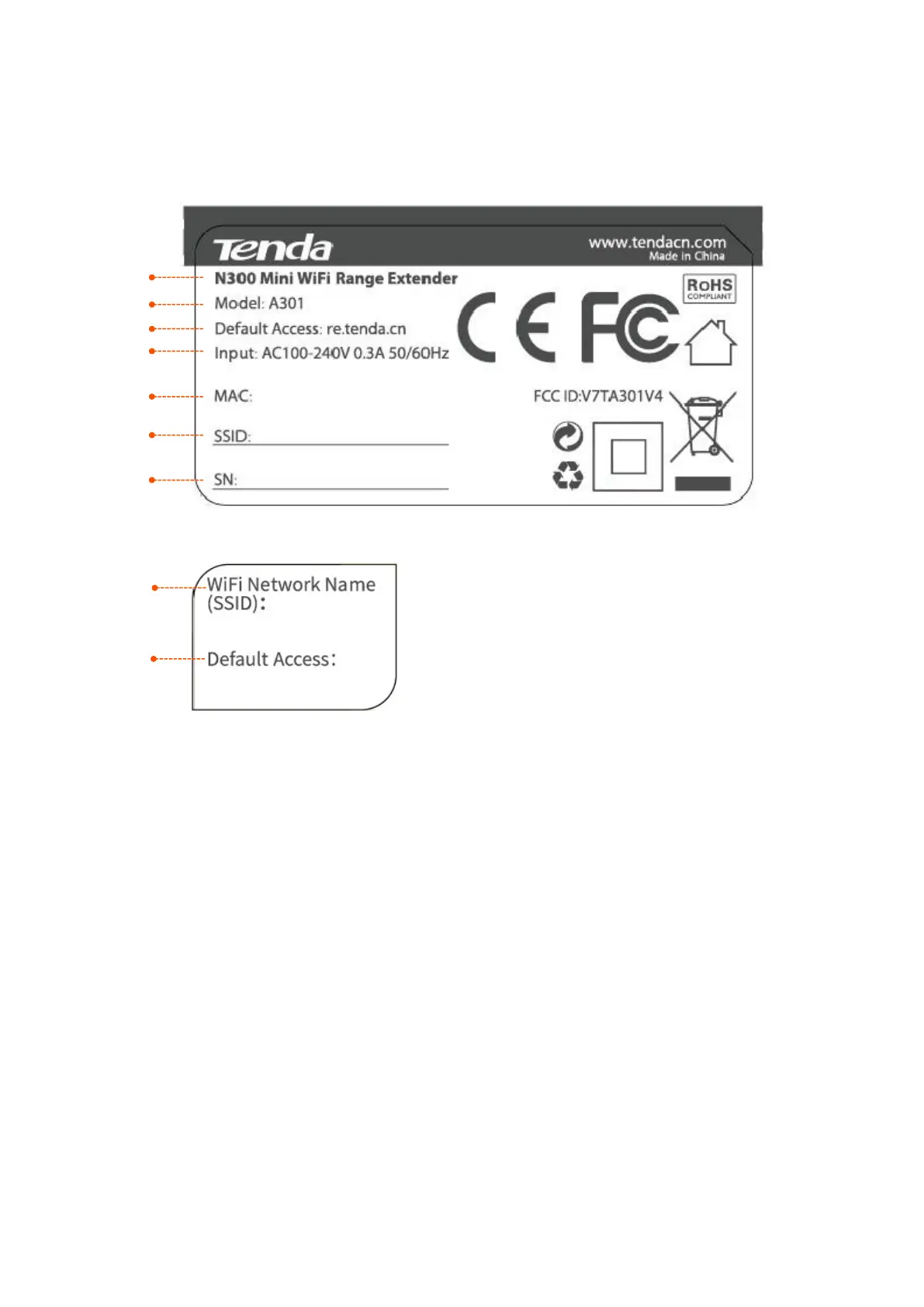

1.2.3 Labels
The labels present WiFi network name (SSID), login address and other information of the extender.

Label on the rear panel of the extender:

Label on the top panel of the extender:
(1) Product name of the extender.
(2) Model: Product model of the extender. You can use this model as a key word for searching related
supporting materials across various channels, such as Tenda official website, or e-commerce
websites.
(3) Default Access: Default domain name for logging in to the web UI of the extender.
(4) Input: Power specification of the extender.
(5) MAC: MAC address of the extender. A MAC address refers to the unique physical address of the
device.
(6) SSID: Default wireless network name of the extender.
(7) SN: The unique serial number of the extender.
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(6)
(3)

Tenda A301 Specifications

General

Type	Network transmitter
Maximum transfer distance	- m
Antennas quantity	2
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Security algorithms	WEP, WPA-PSK, WPA2-PSK
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Wi-Fi data rate (max)	300 Mbit/s
RJ-45 ports quantity (transmitter)	1
Output current	0.7 A
Output voltage	5 V
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	-40 - 70 %
Operating relative humidity (H-H)	10 - 90 %
Certification	CE, FCC
Sustainability certificates	RoHS
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	110 mm
Width	55 mm
Height	39 mm
