Tenda AC19 User Manual

102
Manual and automatic tunnels

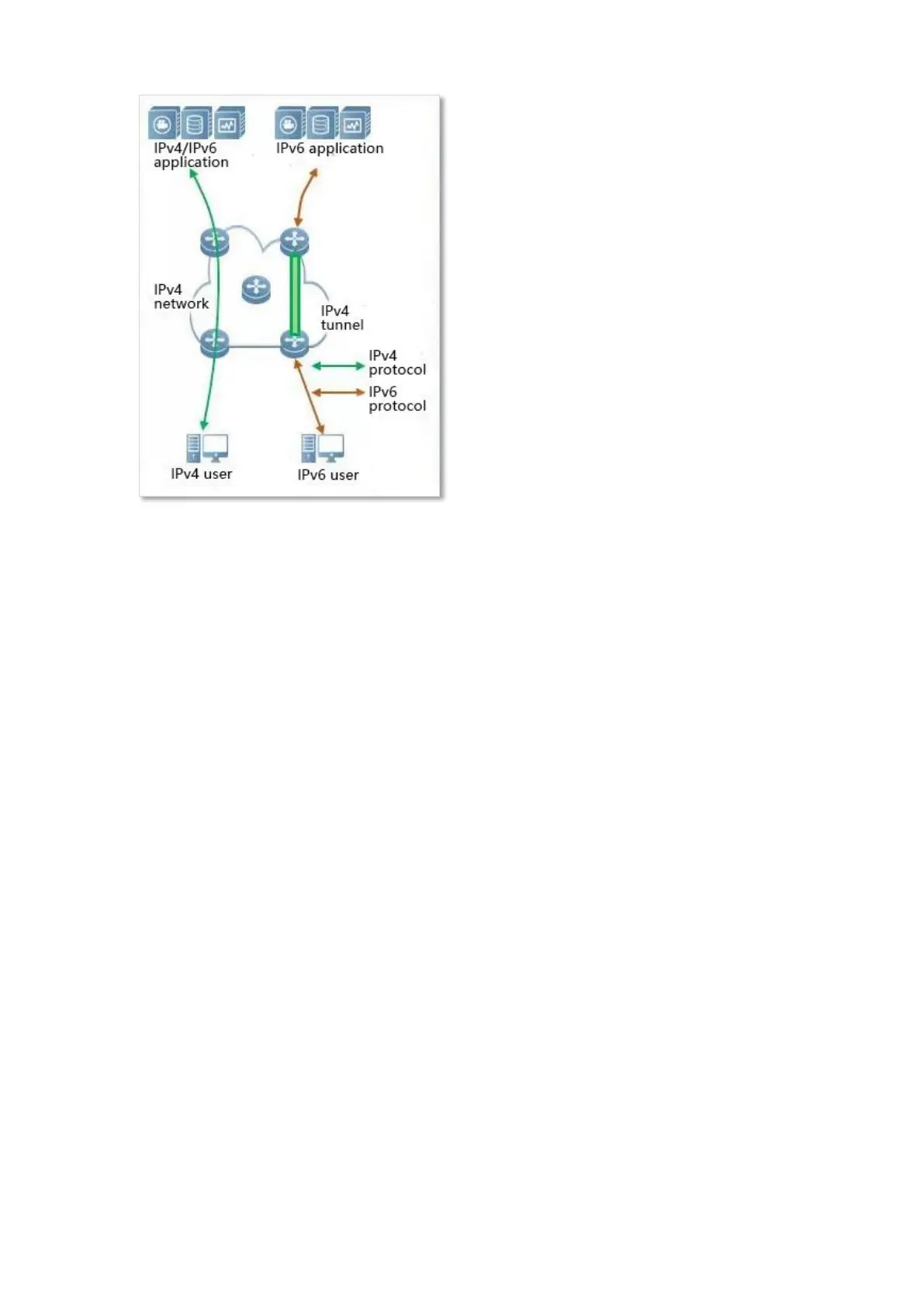

Generally, a tunnel consists of three parts: the tunnel start node, which encapsulates IPv6 packets;
the tunnel end point, which decapsulates IPv6 packets; the tunnel, which is actually an IPv4 path,
starts the encapsulated IPv6 packets from the tunnel The node is transported to the end of the
tunnel.
When the tunnel start node encapsulates an IPv6 packet in an IPv4 packet, it must determine the
source and destination addresses of IPv4. The source address is the IPv4 address of the start node
of the tunnel, and the destination address is the IPv4 address of the end of the tunnel.
Tunnels can be divided into manual tunnels and automatic tunnels based on how the tunnel end
address is obtained.
◼
Manual tunnel
The network boundary device cannot automatically obtain the IPv4 address of the tunnel
endpoint. You need to manually configure the IPv4 address of the tunnel endpoint so that
the packets can be sent to the tunnel endpoint correctly. It is usually used in the tunnel
between routers.
◼
Automatic tunnel
Network border devices can automatically obtain the IPv4 address of the tunnel endpoint,
without the need to manually configure the IPv4 address of the endpoint. In general, the
IPv6 addresses at both ends of the tunnel are in the form of special IPv6 addresses with
embedded IPv4 addresses. In this way, routing devices can extract IPv4 addresses from the
destination IPv6 addresses in IPv6 packets. Automatic tunnels can be used from host to host,
or from host to router.
6in4 tunnel
6in4 is a manual tunneling technology. It can implement IPv6 isolated island communication
through manually configured tunnels without the network operator providing IPv6 interconnection
services.

Tenda AC19 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	- Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Security algorithms	WPA-PSK, WPA2, WPS
Product type	Tabletop router
Product color	Black
LED indicators	LAN, Power, System, USB, WPS
Antenna gain level (max)	6 dBi
Certification	CE, FCC, RoHS
Output current	2 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	238.9 mm
Width	144.3 mm
Height	403 mm
