25
4.2 Access the internet through dynamic IP address
Generally, accessing the internet through dynamic IP address is applicable in the following
situations:
Your ISP does not provide PPPoE user name and password, or any information including IP
address, subnet mask, default gateway and DNS server.
You have a router with internet access and want to add an AC23 as the other one.

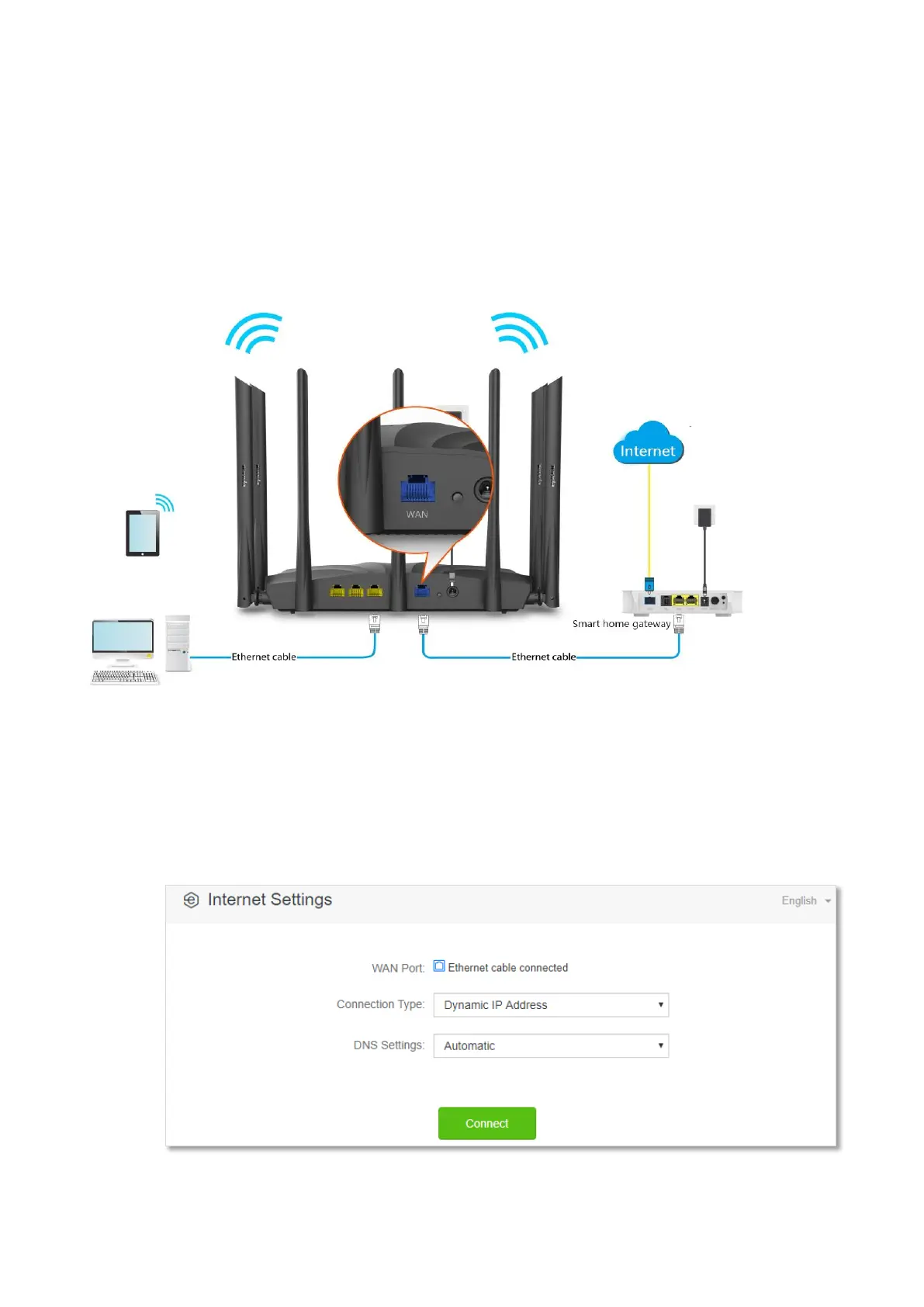

The application scenario is shown below.
Configuring procedure:
Step 1 Start a web browser on a device connected to the router and visit tendawifi.com to log in
to the web UI of the router.
Step 2 Choose Internet Settings.
Step 3 Set Connection Type to Dynamic IP Address.
Step 4 Click Connect.
---End

Table of Contents

Other manuals for Tenda AC19

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Tenda AC19 and is the answer not in the manual?

Tenda AC19 Specifications

General IconGeneral
DSL WANNo
Ethernet WANYes
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standardWi-Fi 4 (802.11n)
WLAN data transfer rate (max)- Mbit/s
Cabling technology10/100/1000Base-T(X)
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates10, 100, 1000 Mbit/s
Ethernet LAN interface typeGigabit Ethernet
Ethernet LAN (RJ-45) ports4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
Security algorithmsWPA-PSK, WPA2, WPS
Product typeTabletop router
Product colorBlack
LED indicatorsLAN, Power, System, USB, WPS
Antenna gain level (max)6 dBi
CertificationCE, FCC, RoHS
Output current2 A
Output voltage12 V
AC input voltage100 - 240 V
Power source typeAC
AC input frequency50 - 60 Hz
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)5 - 90 %
Operating relative humidity (H-H)10 - 90 %
Cables includedLAN (RJ-45)
Harmonized System (HS) code85176990
Weight and Dimensions IconWeight and Dimensions
Depth238.9 mm
Width144.3 mm
Height403 mm
