Tenda AC19 User Manual

169
the router:port number”. If the DDNS host function is enabled, the web UI can
also be accessed through “http://the domain name of the router’s WAN port:port
number”.
12.9.2 Enable Tenda techical support to acces and manage the
web UI

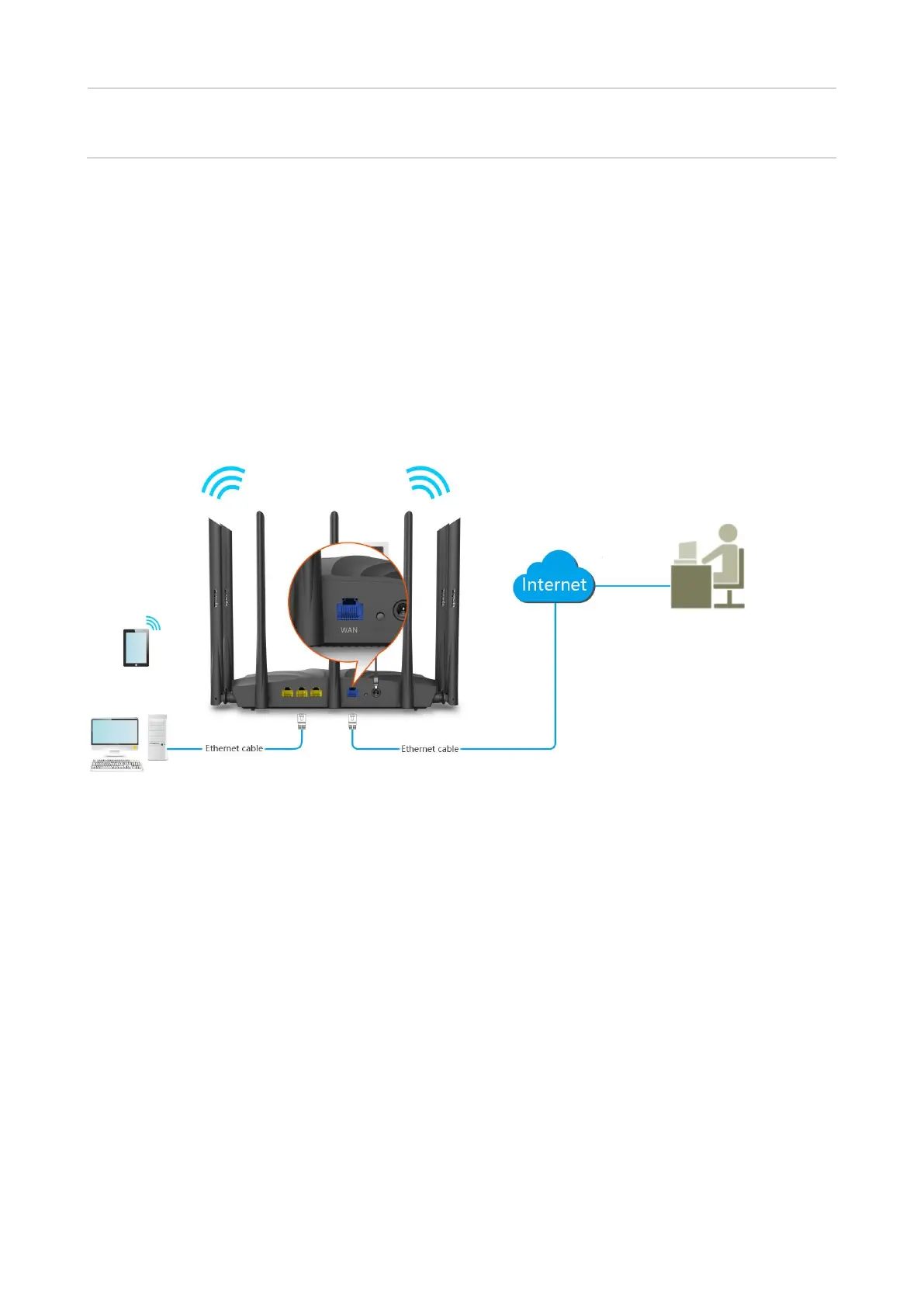

Scenario: You encounter a problem in configuring the router, and the router can access internet
access.
Goal: Ask the Tenda technical support to help you configure the router remotely.
Solution: You can configure the remote management function to reach the goal.
Assume that:
− The IP address of Tenda technical support: 210.76.200.101
− The WAN port IP address of the router: 202.105.106.55
Configuring procedure:
Step 1 Start a web browser on a device connected to the router and visit tendawifi.com to log in
to the web UI of the router.
Step 2 Choose System Settings > Remote Management.
Step 3 Enable the Remote Management.
Step 4 Enter the IP address that is allowed to access the web UI remotely, which is
210.76.200.101 in this example.
WAN IP address: 202.105.106.55
Tenda technical support
IP address: 210.76.200.101

Tenda AC19 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	- Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Security algorithms	WPA-PSK, WPA2, WPS
Product type	Tabletop router
Product color	Black
LED indicators	LAN, Power, System, USB, WPS
Antenna gain level (max)	6 dBi
Certification	CE, FCC, RoHS
Output current	2 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	238.9 mm
Width	144.3 mm
Height	403 mm
