Tenda AC19 User Manual

90
9.4 Access USB resources with the Tenda WiFi App
With Tenda WiFi App installed on your phone, you are enabled to access the resources on the USB
storage device on the App within the LAN or through the internet.
To access the page on the Tenda WiFi App, refer to Tenda WiFi App to bind your router with your
smart phone. Open the App and tap Storage at the bottom.
◼

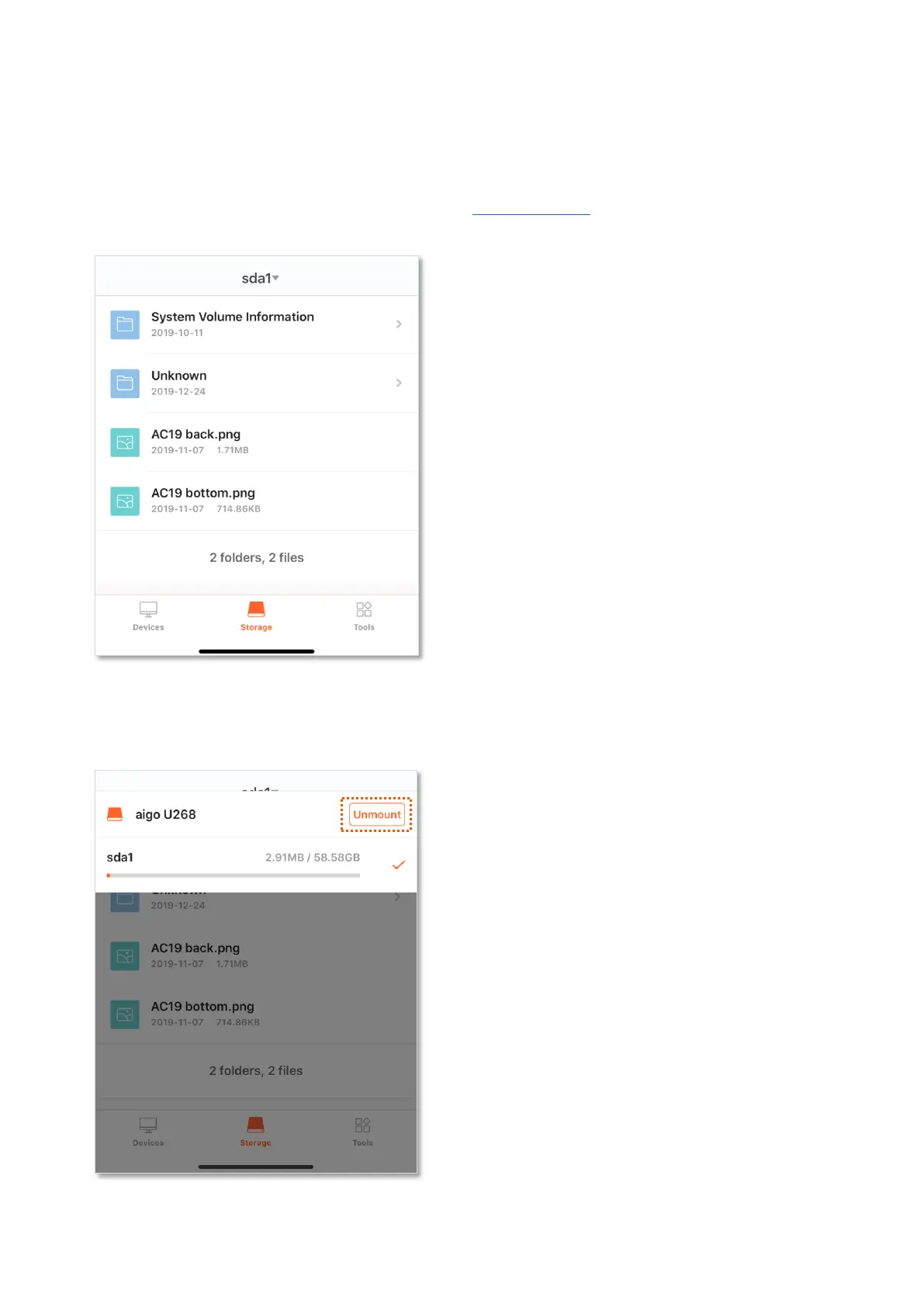

View storage information of the USB storage device or unmounts it
Tap the name of the USB storage device at the top. You can find the storage information of the USB
storage device. Tap Unmount to disconnect the USB storage device from the router.

Tenda AC19 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	- Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Security algorithms	WPA-PSK, WPA2, WPS
Product type	Tabletop router
Product color	Black
LED indicators	LAN, Power, System, USB, WPS
Antenna gain level (max)	6 dBi
Certification	CE, FCC, RoHS
Output current	2 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	238.9 mm
Width	144.3 mm
Height	403 mm
