Tenda AC19 User Manual

110
6to4 tunnel

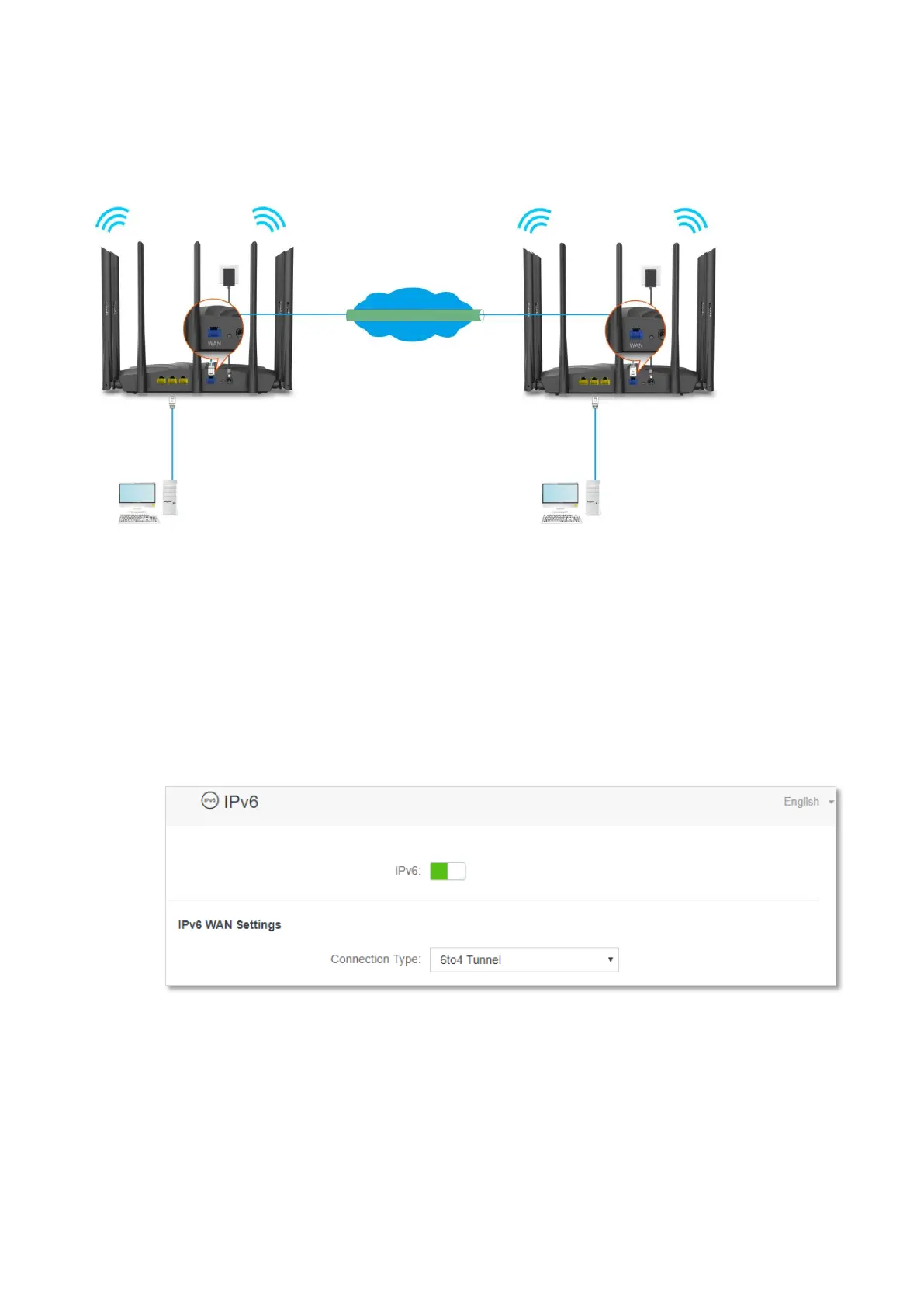

As shown below, the two routers support dual stack protocol. To achieve the communication
between the two hosts, you can configure the 6to4 tunnel.
Assume that the two routers are connected to IPv4 network and obtain public IPv4 addresses.
Configuring procedure:
Step 1 Configure Router 1.
1. Start a web browser on a device connected to the router 1 and visit tendawifi.com to log
in to the web UI of the router.
2. Choose IPv6.
3. Enable the IPv6 function.
4. Set the connection type to 6to4 Tunnel.
5. Click Save.
Step 2 Repeat Step 1 to set the connection type of Router 2 to 6to4.
---End
IPv4
6to4
WAN IPv6:
2002:101:101::101:101/16
WAN IPv4: 1.1.1.1
Router 1
Router 2
WAN IPv6:
2002:101:201::101:201/16
WAN IPv4: 1.1.2.1
IPv6 computer 1
2002:101:101:1:560:febc:add:9379
IPv6 computer 2
2002:101:201:1:1036:66d1:a340:aac6

Tenda AC19 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	- Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Security algorithms	WPA-PSK, WPA2, WPS
Product type	Tabletop router
Product color	Black
LED indicators	LAN, Power, System, USB, WPS
Antenna gain level (max)	6 dBi
Certification	CE, FCC, RoHS
Output current	2 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	238.9 mm
Width	144.3 mm
Height	403 mm
