Tenda AC19 User Manual

77

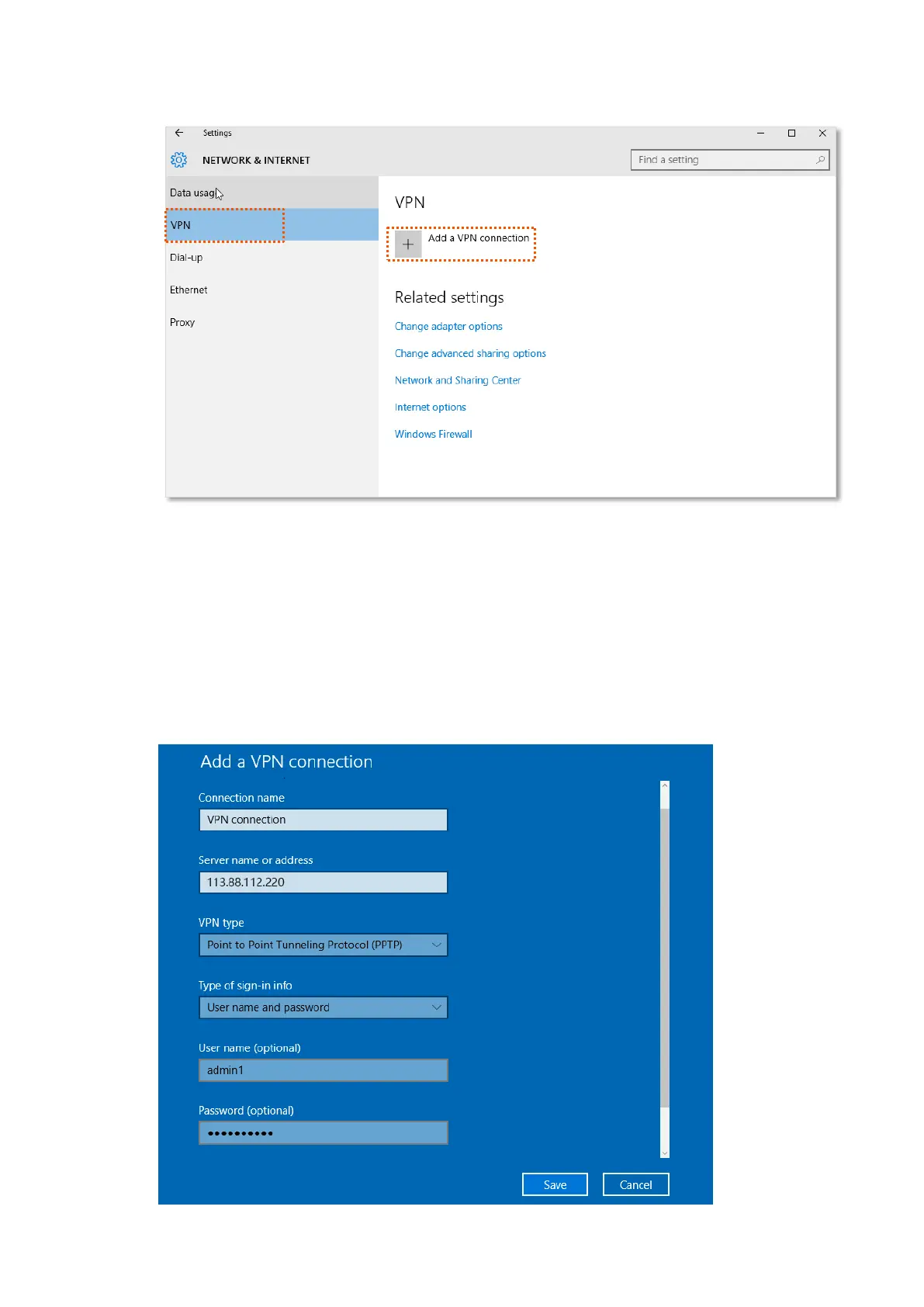

Step 2 Choose VPN on the left side, and click Add a VPN connection.
Step 3 Configure the VPN parameters.
1. Enter a connection name, such as VPN connection.
2. Enter the server address, which is 113.88.112.220 in this example.
3. Select a VPN type, which is Point to Point Tunneling Protocol (PPTP) in this example.
4. Select a type of sign-in info, which is User name and password in this example.
5. Enter the user name and password, which are both admin1 in this example.
6. Click Save.

Tenda AC19 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	- Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Security algorithms	WPA-PSK, WPA2, WPS
Product type	Tabletop router
Product color	Black
LED indicators	LAN, Power, System, USB, WPS
Antenna gain level (max)	6 dBi
Certification	CE, FCC, RoHS
Output current	2 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	238.9 mm
Width	144.3 mm
Height	403 mm
