Tenda F300 User Manual

Wireless N300 Home Router
50
For example:
As seen in the figure above, PC1 and PC2 access Internet via a
wireless connection to Router 1. While PC3 and PC4 are too far to
directly connect to Router 1 for Internet access. Now you can use
the WDS bridge feature to let PC3 and PC4 access Internet.
Before you get started:

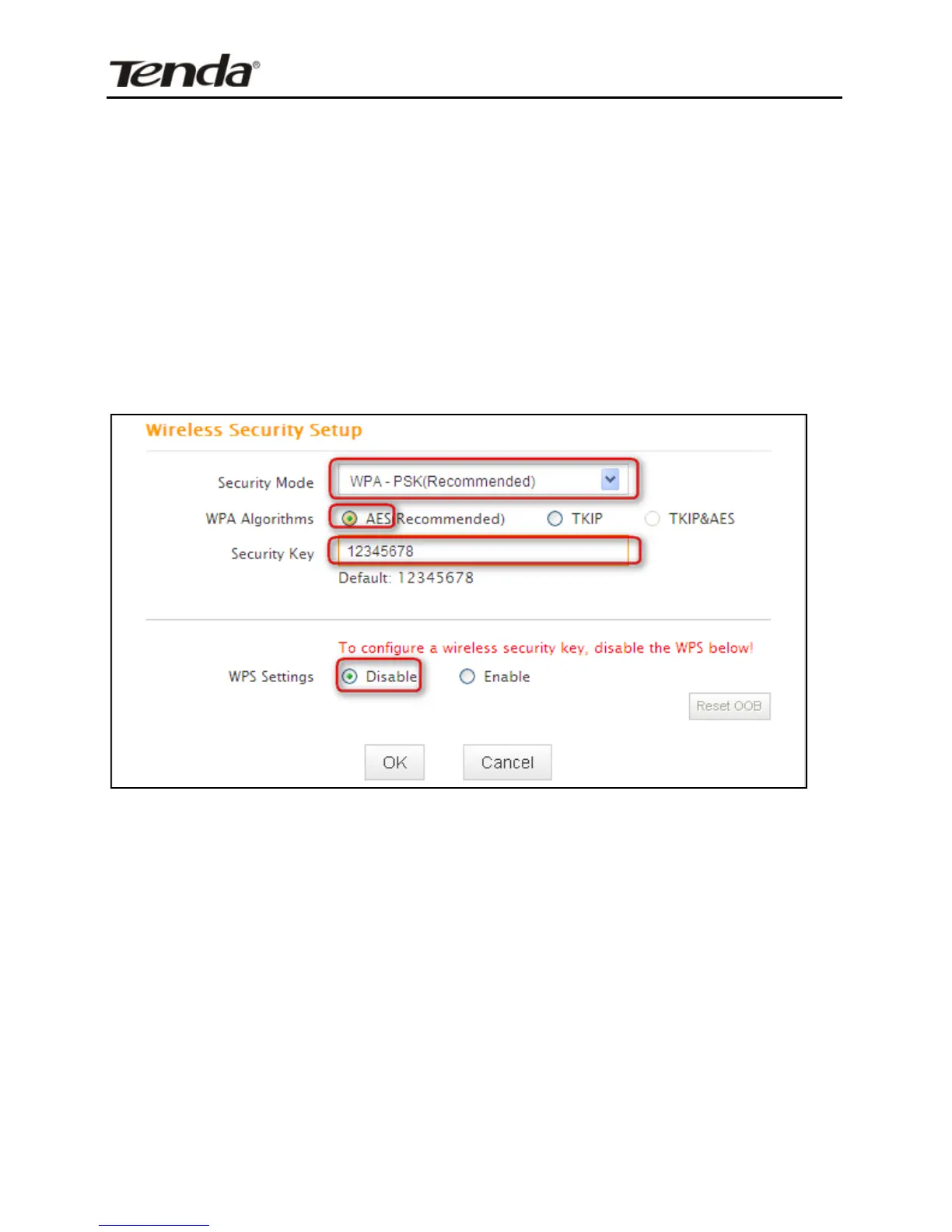

1. View and note down the wireless security settings: security mode,
cipher type, security key, etc. on Router 1.
2. Verify that DHCP server is enabled on Router 1.
3. Set the LAN IP address of Router 2 to a different address yet on
the same net segment as Router 1.

Tenda F300 Specifications

General

Frequency	2.4GHz
Data Rate	300Mbps
Ports	1x 10/100Mbps WAN port, 3x 10/100Mbps LAN ports
Wireless Standards	IEEE 802.11n
Security	WPA/WPA2
Button	Reset button
Antenna	2x 5dBi fixed antennas
Weight	200g
