Tenda F300 User Manual

Wireless N300 Home Router
28

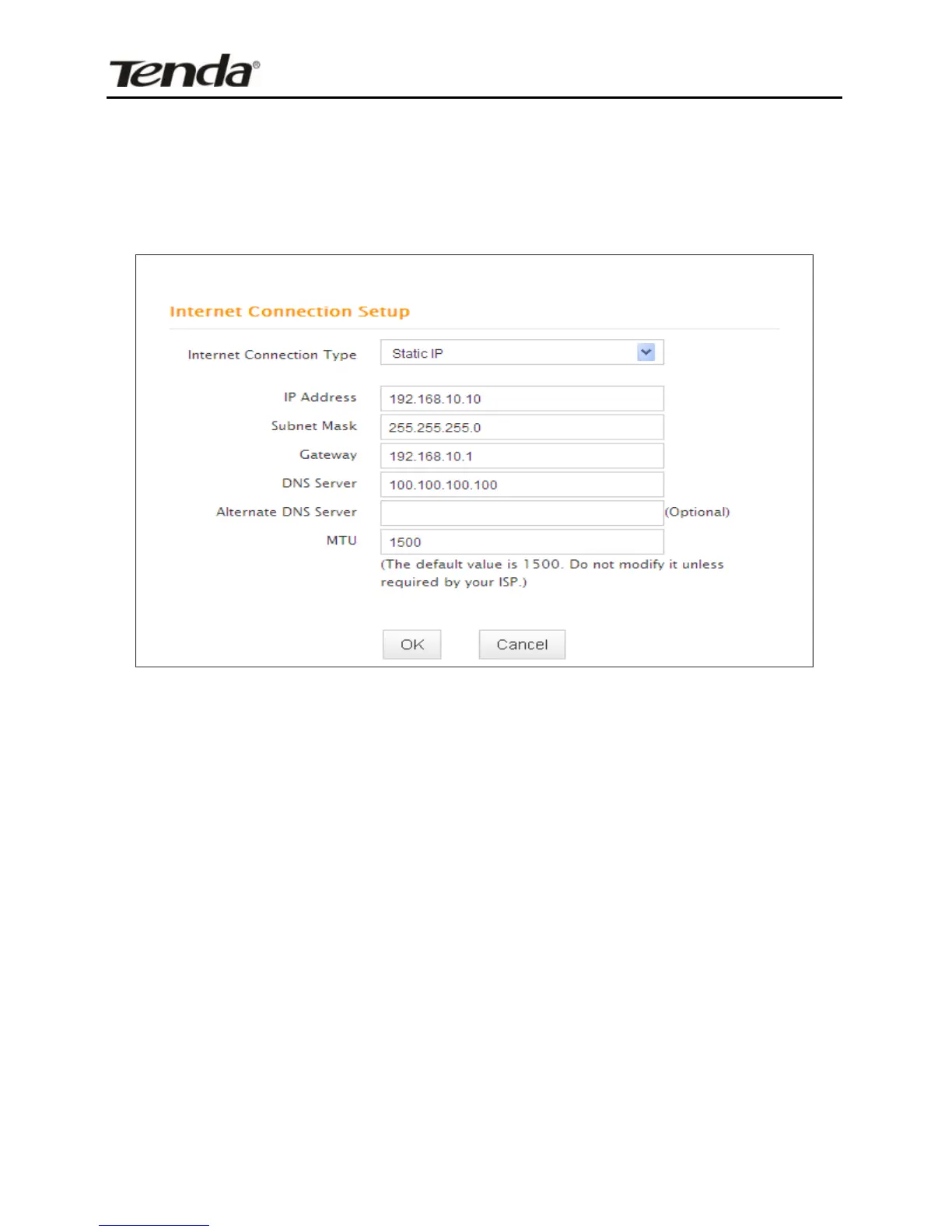

3.2.2 Static IP
Select Static IP if your ISP provides all the needed info. You will
need to enter the provided IP address, subnet mask, gateway
address, and DNS address(es) in corresponding fields.
1. Internet connection Type: Select Static IP.
2. IP Address: Enter the IP address provided by your ISP. Consult
your ISP if you are not clear.
3. Subnet mask: Enter the subnet mask provided by your ISP.
4. Gateway: Enter the WAN Gateway provided by your ISP. Consult
your ISP if you are not clear.
5. DNS Server: Enter the DNS address provided by your ISP.
6. Alternate DNS Server: Enter the other DNS address if your ISP
provides 2 such addresses (optional).
7. OK: Click it to save all your settings.

Tenda F300 Specifications

General

Frequency	2.4GHz
Data Rate	300Mbps
Ports	1x 10/100Mbps WAN port, 3x 10/100Mbps LAN ports
Wireless Standards	IEEE 802.11n
Security	WPA/WPA2
Button	Reset button
Antenna	2x 5dBi fixed antennas
Weight	200g
